wrs5200 hydraulic roller screed • operaTion manual — rev. #1 (10/22/10) — page 23
DiMenSiOnS (pOWer unit)
Table 3. power unit dimensions (new style)
reference
letter
dimension in. (mm.)
A
30.25 (768.35)
B
28.25 (717.55)
C
42 (1066.8)
D
31.13 (790.7)
E
61.5 (1562.1)
F
52.5 (1333.5)
B
D
A
E
F
C

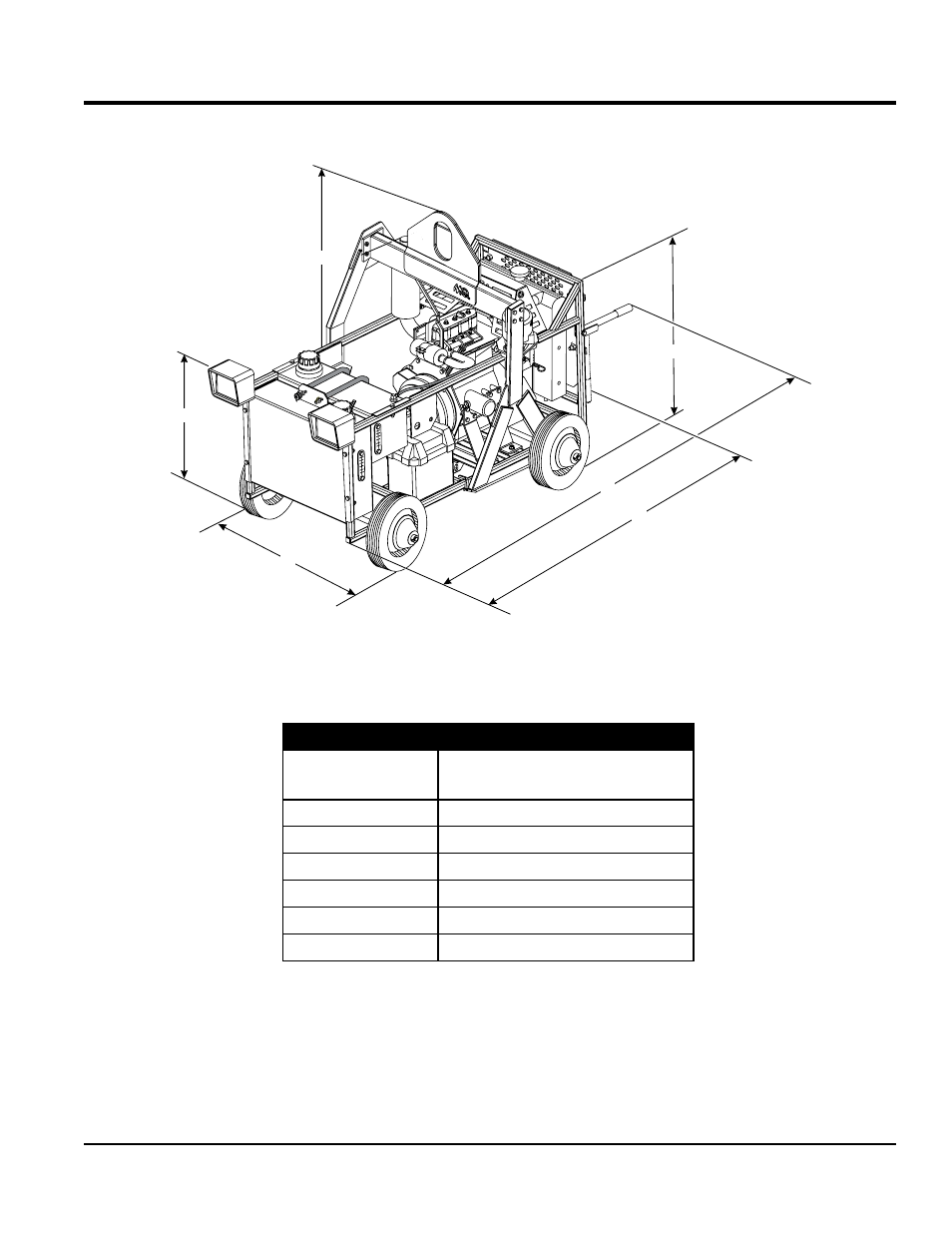

Figure 10. Power Unit Dimensions (WRSPDU)
