Strike Tube Installation (Middle Section)
The 14ft. (4.25 meters) strike tube section should now be
attached to the matching section of truss (Figure 21). The
following section will illustrate inserting the middle section
strike tube.
1. The first middle bracket should now be installed with
the splined shaft supporting one end of the 14 ft. (4.24
meters) strike tube. The other end of the splined shaft
should be exposed.
2. Insert one end of the 16 ft. (4.87 meters) strike tube
onto the exposed-end of the splined shaft located on
the first middle bracket (Figure 21).
3. Next, insert the other end of the strike tube onto the splined
shaft of the second middle bracket (Figure 21).
rOller ScreeD aSSeMblY

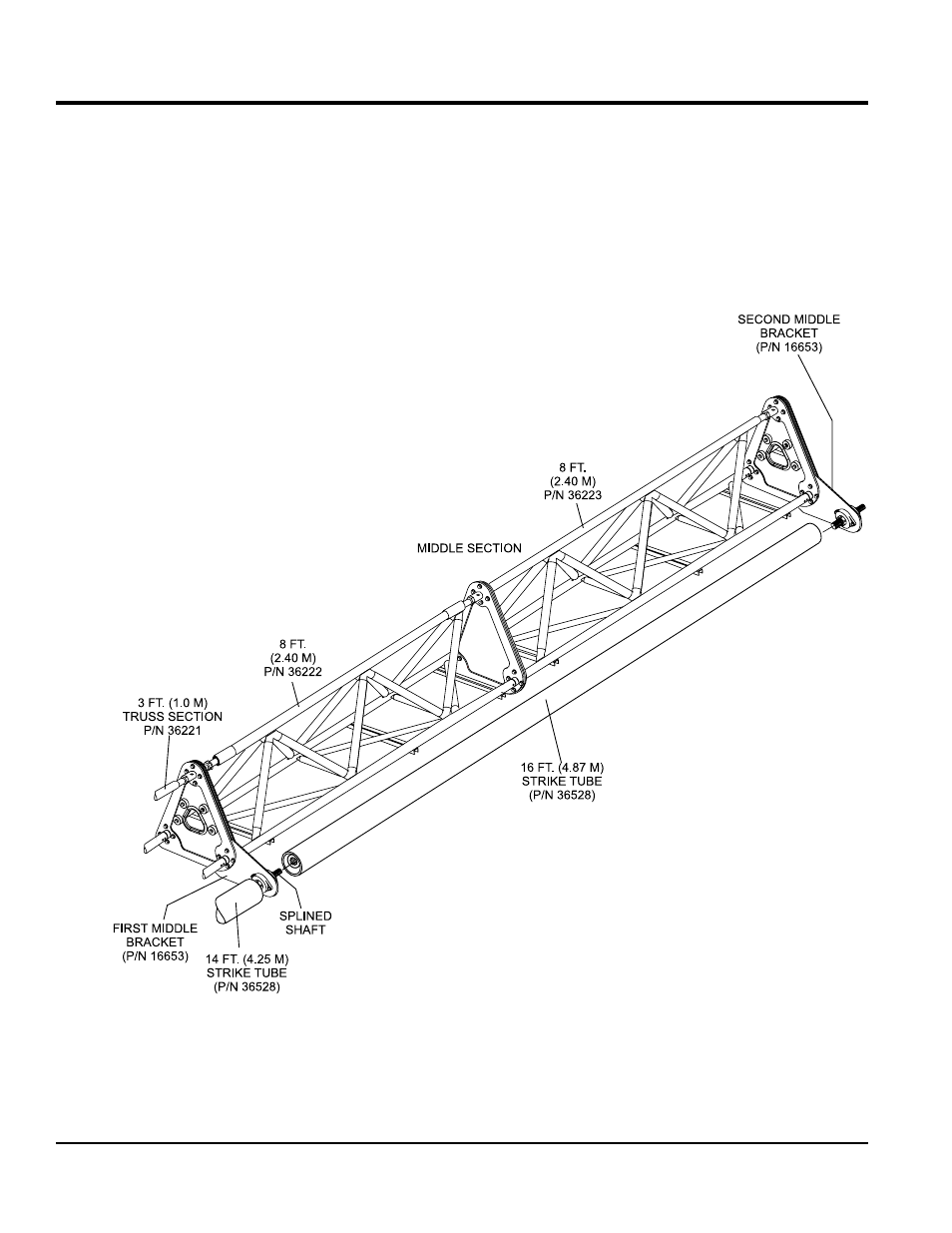

Figure 21. Strike Tube Middle Section (16 ft./4.87 meters)
