preSSure WaSher cOMpOnentS/SpecificatiOnS
1 3
4
2

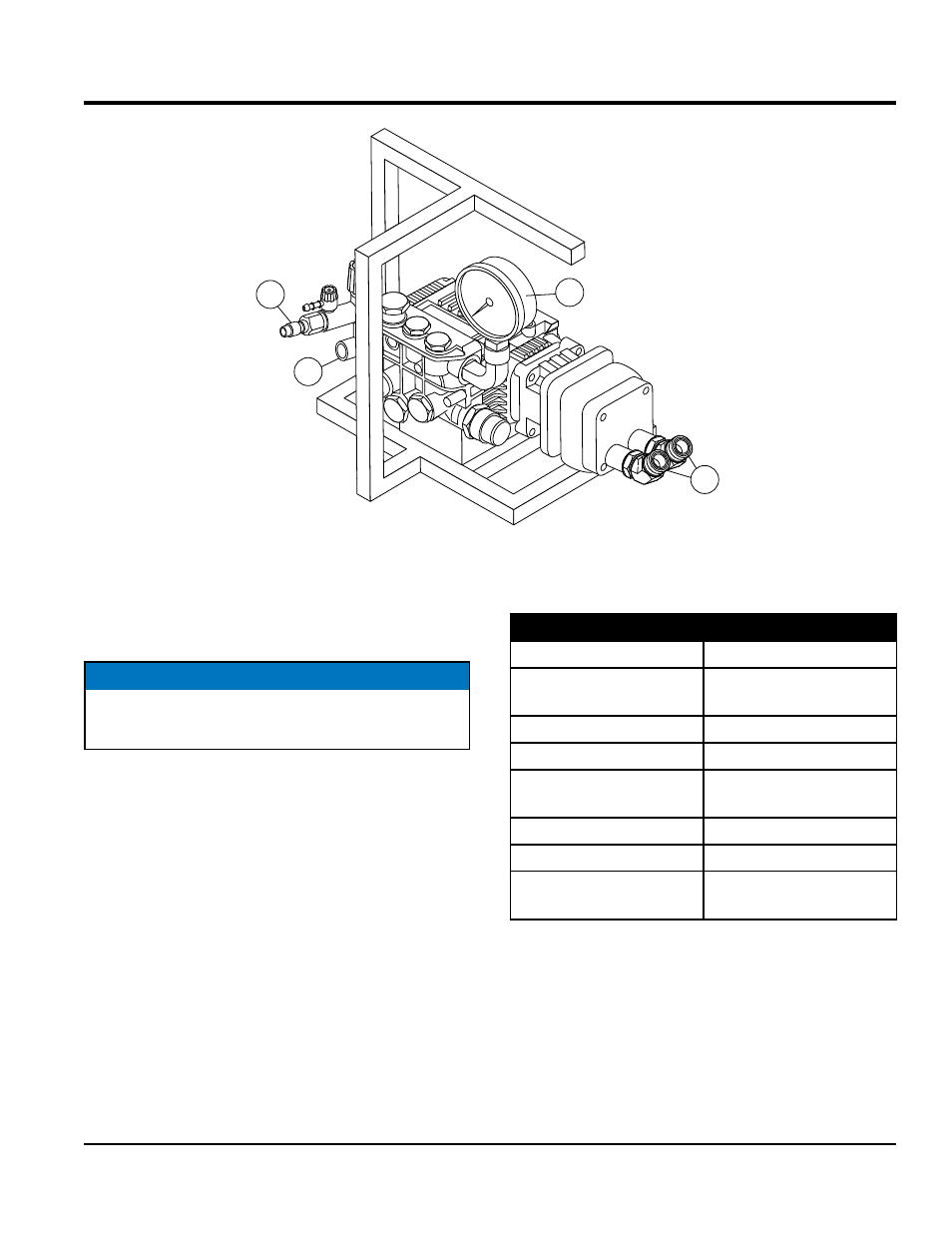

Figure 14. Pressure Washer
The definitions below describe the components of the
pressure washer (Figure 14).
1. pressure gauge — 5,000 PSI
2. motor inlet/outlet — Hydraulic fittings, 1/2" NPT (F),
connect to pressure washer interface port on power
unit.
3. water outlet — Connect to spray hose.
4. water inlet — 3/4" garden hose.
NOTICE
Pressure washer is an optional accessory that is not
included with the screed. Contact MQ unit sales.
Table 4. pressure washer specifications
Triplex Plunger Pump Flow 3.0 gpm @ 1500 psi
Unloader Maximum
Pressure
1500 psi
Water Inlet 3/4" Garden Hose
Water Outlet: 3/8" Quick Disconnect
Hydraulic Motor
Displacement
0.5 cu. in.
Hydraulic Motor Flow 8 gpm @ 1800 psi
Motor inlet and Outlet 1/2" NPT (F)
Pressure Washer Hose
3/8" I.D., 50' Length
3000 psi Rating
