Introduction, 1 drive operating modes, 2 point to point moves – Lenze E94P PositionServo with MVOB User Manual

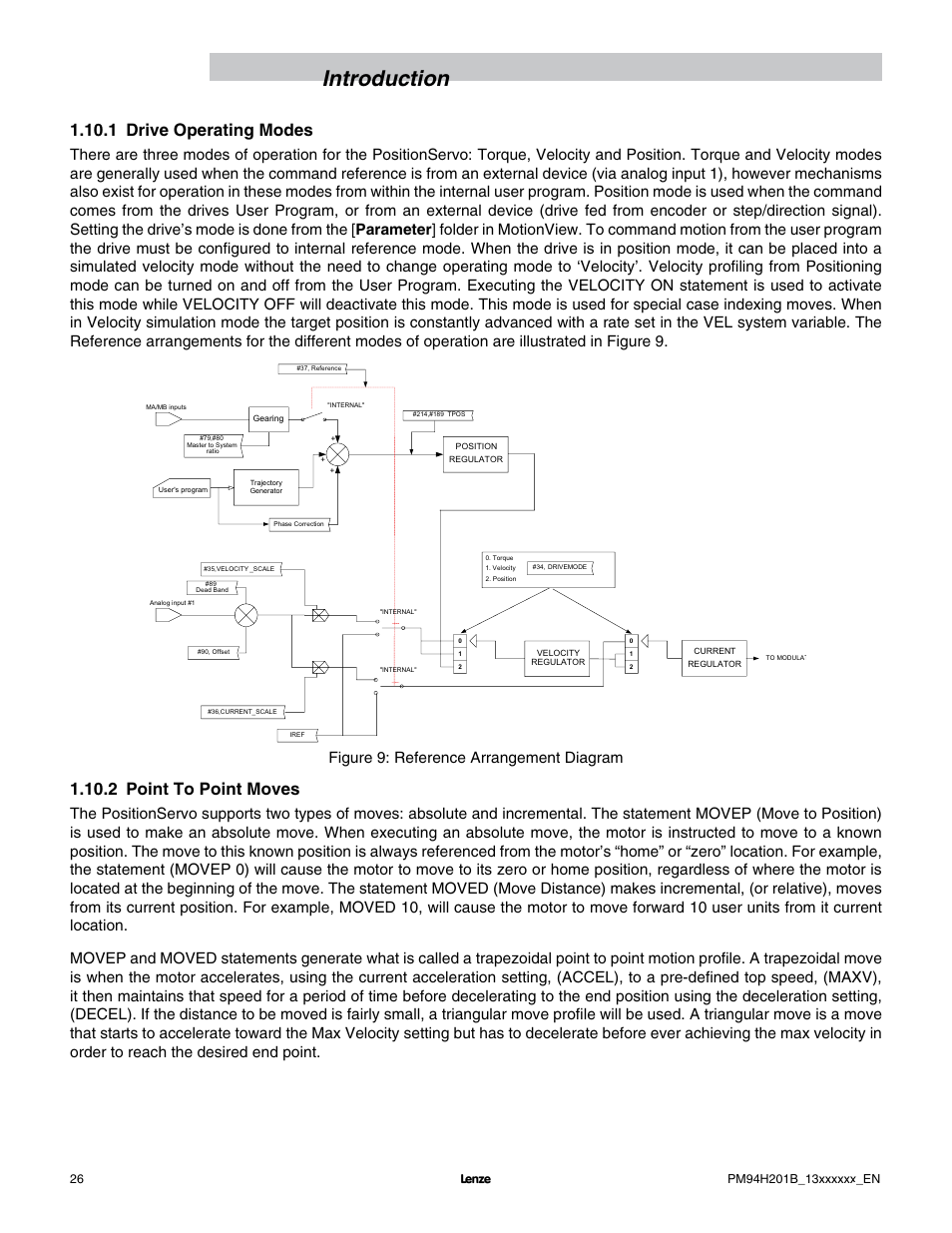

Page 28: Figure 9: reference arrangement diagram
