Technical data

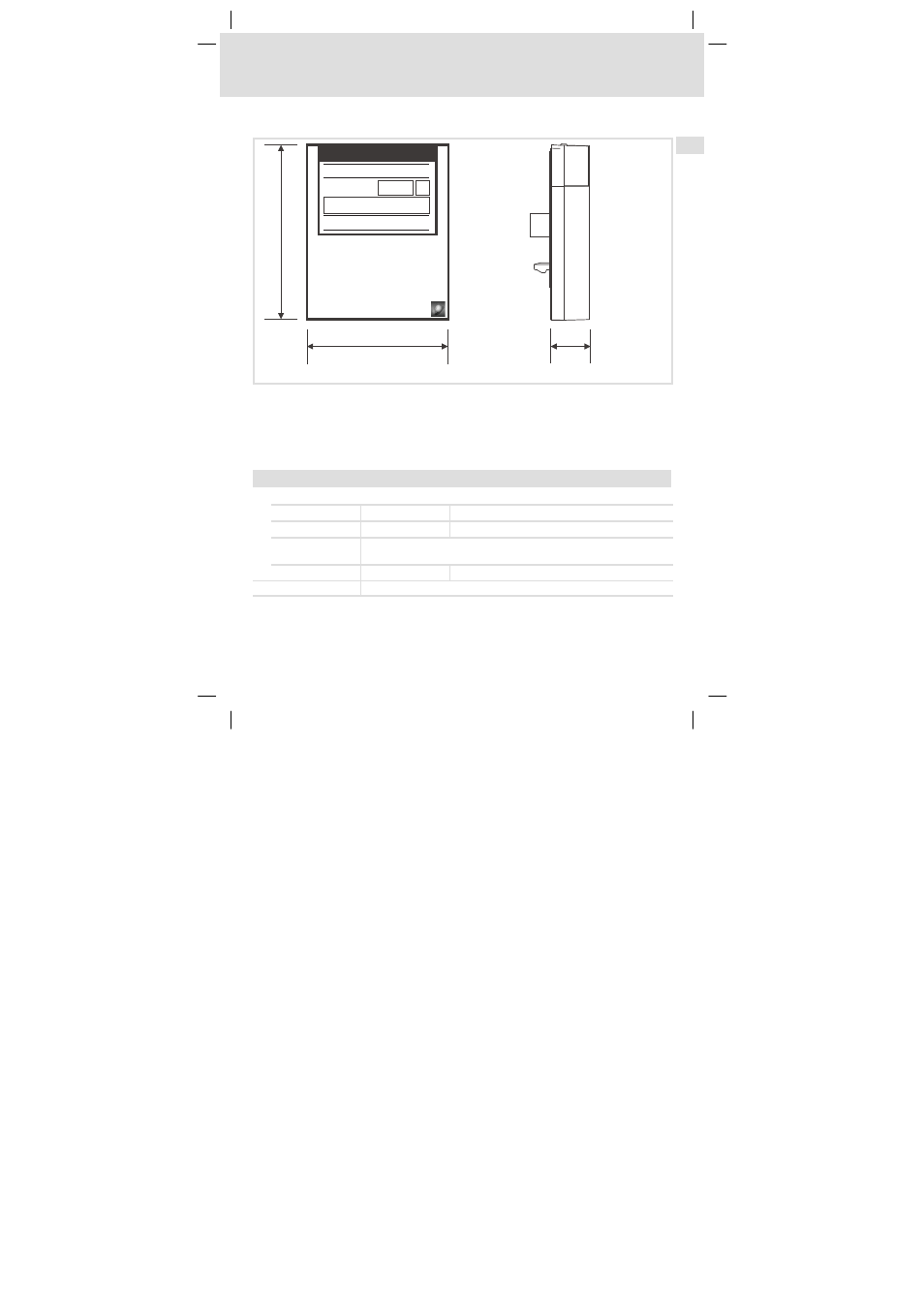

Dimensions
4
EDK9371BC DE/EN/FR 3.1 71
l
H1_Daten−IP20
4 Technical data
Dimensions
Y Z
y
z T V
S U
d A B b c
p SHPRG
Para
Code
Menu 0050 00
50.00_Hz
M C T R L - N O U T
0 b
c a
9371BC011
a 60 mm
b 73.5 mm
c 15 mm
Operating conditions
Ambient conditions
Climate
Storage IEC/EN 60721−3−1 1K3 (−25 to +60 °C)
Transport IEC/EN 60721−3−2 2K3 (−25 to +70 °C)
Operation Corresponding to the data of the Lenze standard device used (see
documentation of the standard device).
Pollution EN 61800−5−1 Degree of pollution 2
Degree of protection IP20 (protection against accidental contact according to NEMA 250 type 1)
