8.5.6 Behavior when leaving the scaling range
The standard signal range of the analog output is limited as follows according to the recommendation of Namur NE 43:
Signal type Lower
limit
Upper
limit
0: 4 to 20 mA 3.8 mA 20.5 mA
1: 0 to 20 mA 0 mA 20.5 mA
2: 2 to 10 V 1.8 V 10.2 V
3: 0 to 10 V 0 V 10.2 V
k
Factory setting
V
Caution The analog output is
not part of the safety function.

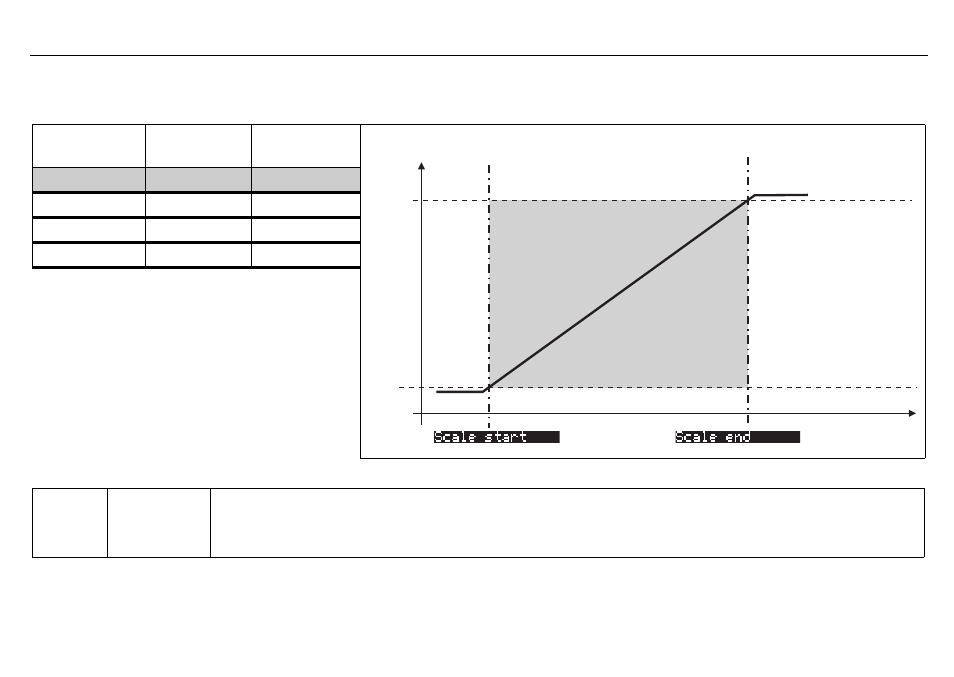

Measured value
Standard signal
for analog output
4 mA
20 mA
3.8 mA
20.5 mA
