We recommend to rub the inside walls of the measuring

chamber up to the groove for the retaining ring to a bright
finish using a polishing cloth.


• The sealing surfaces must only be worked

concentrically.

• Do not bend the anode.

Insert the new ignition aid into the mounting tool and slide it

onto the anode (Spare Parts

 53).

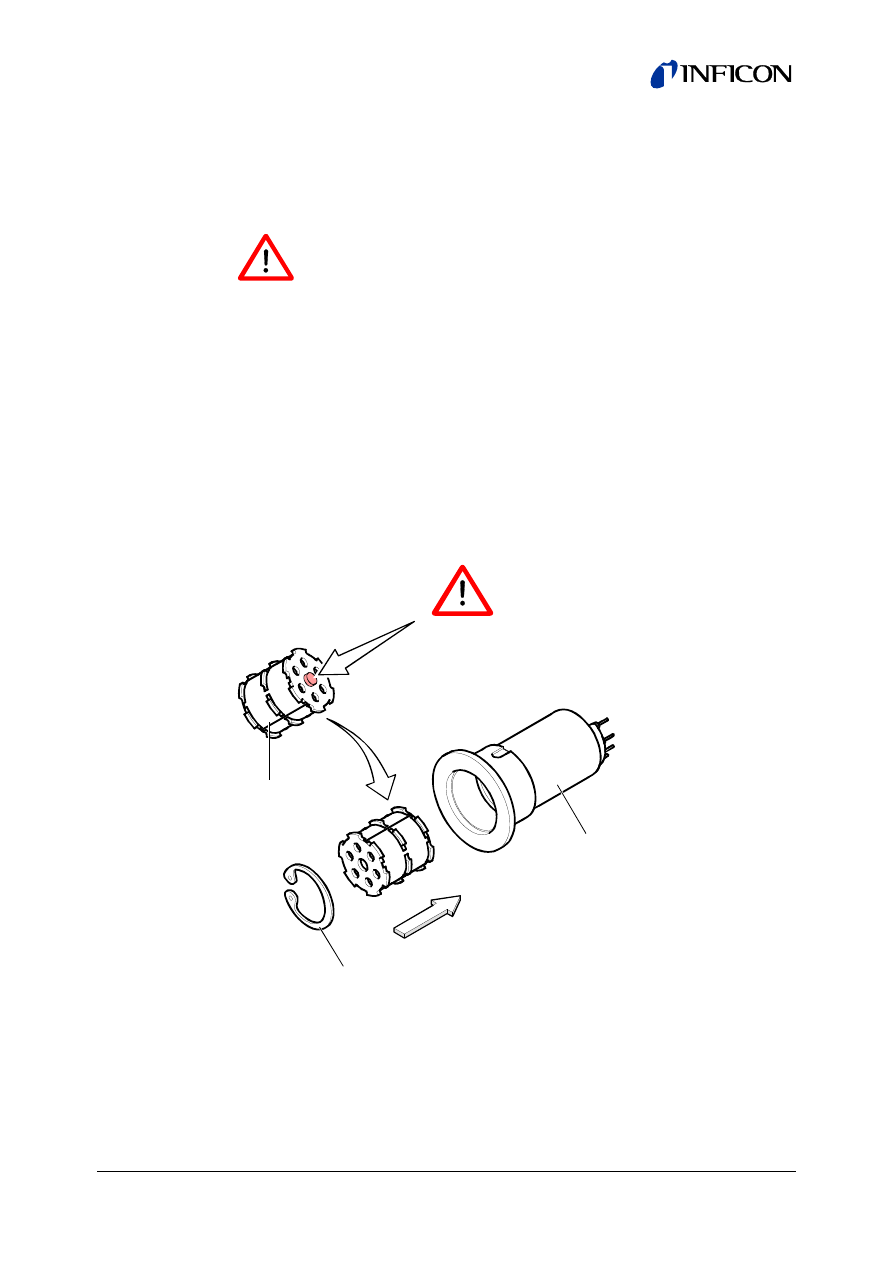

Slide a new ionization chamber (2) into the measuring

chamber (3) until the mechanical stop is reached and
mount the retaining ring (1) (Spare Parts

 53).

3

2

1

Observe correct
orientation of the
ionization chamber

We recommend to perform a leak test (leak rate

<1×10

-9

mbar l/s).
