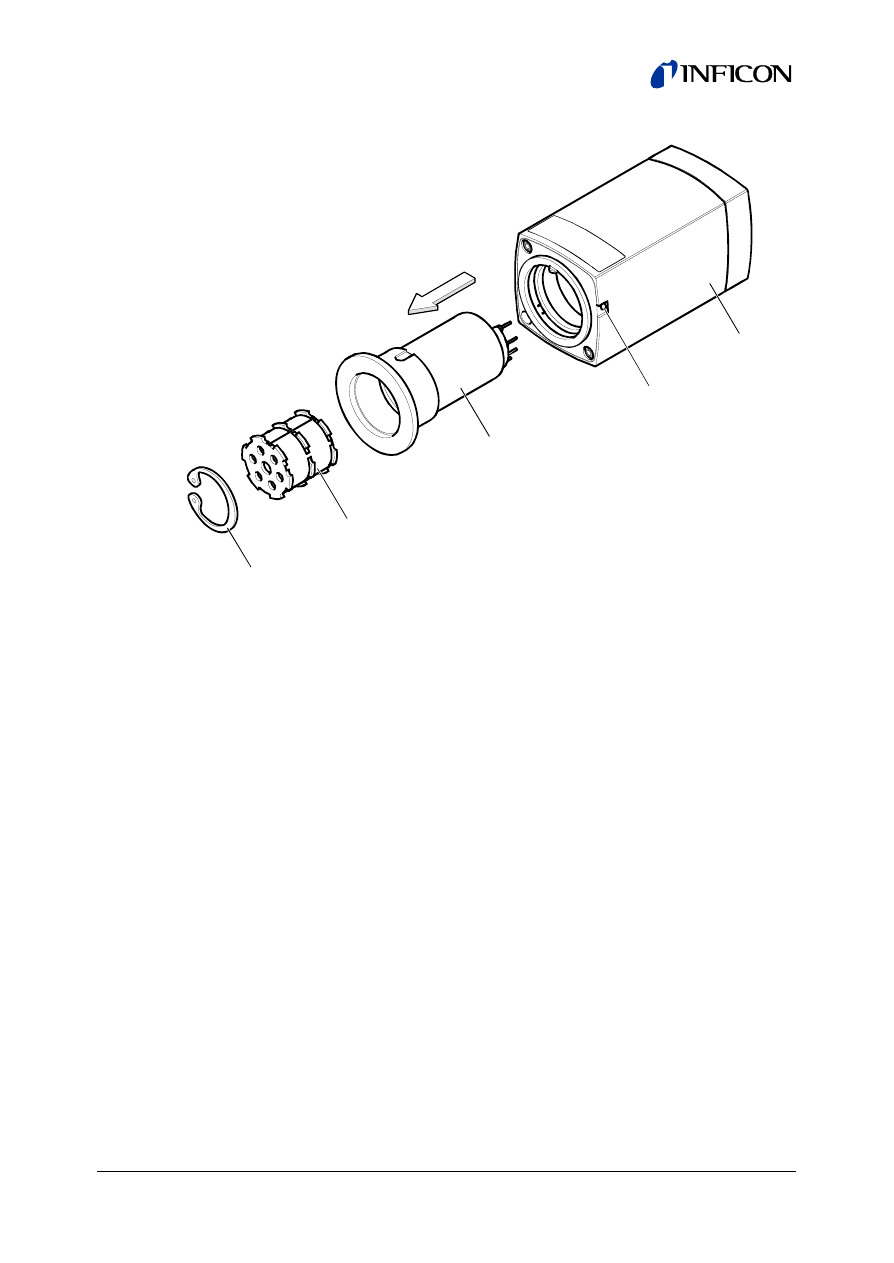

Unfasten the hexagon socket set screw (4) and remove the

complete measuring chamber (3) from the electronics
unit (5).

Remove the retaining ring (1) as well as the ionization

chamber (2) from the measuring chamber (3).

Check the ionization chamber and the measuring chamber

for contamination:
• Ionization chamber is contaminated only: Replace

ionization chamber (

 43)

• Measuring chamber is severely contaminated: Replace

complete measuring chamber (

 45).
