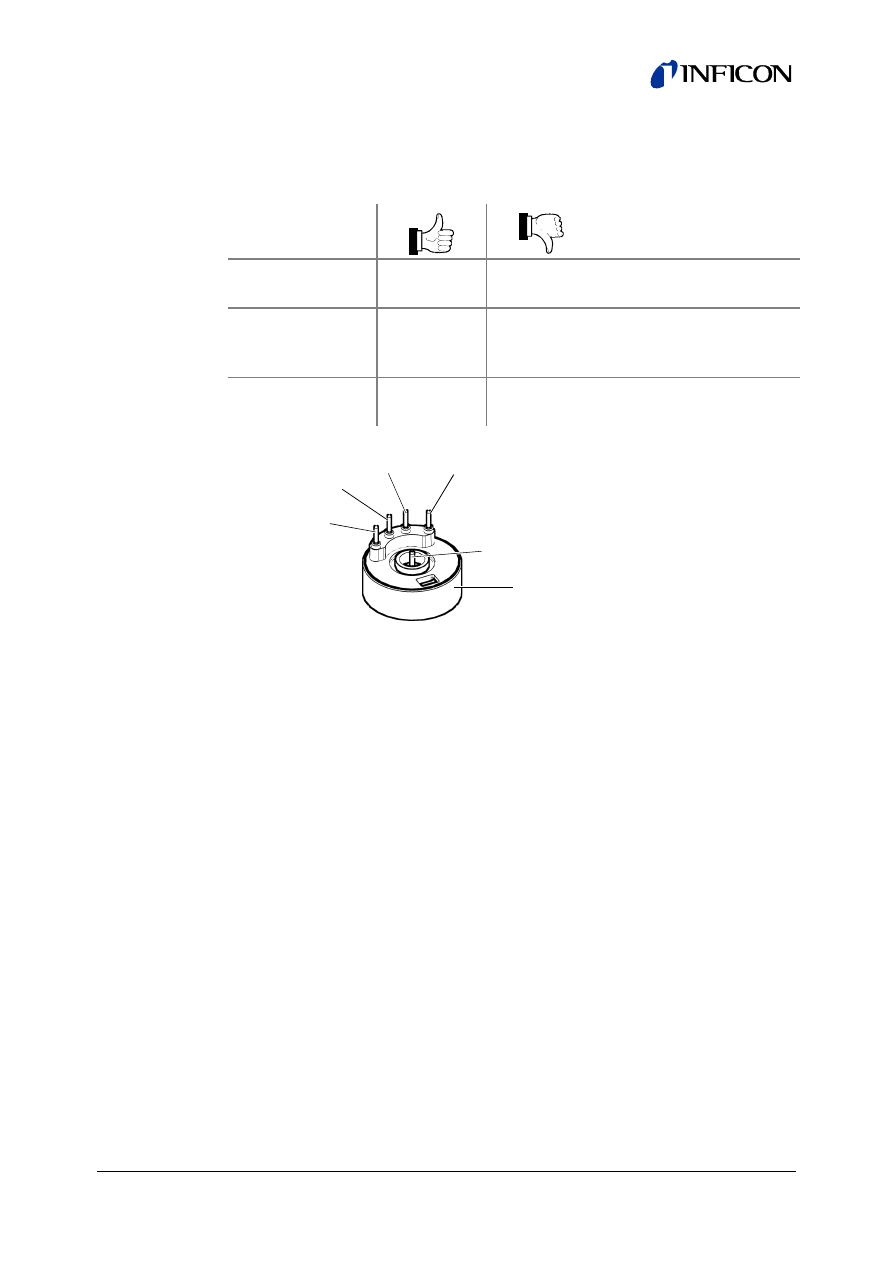

Using an ohmmeter, make following measurements on the

contact pins.

Measurement

between pins

Possible cause

1 + 4

≈40 Ω

>>40 Ω Pirani

filament

rupture

(MPG50x only)

1 + 2

≈1078 Ω

at 20 °C

>>1078 Ω

at 20 °C

Pirani temperature
sensor rupture
(MPG50x only)

5 + measuring

chamber

∞ <<∞ Contamination,

short

circuit cold cathode

1

2

3

4

5

Measuring chamber

All of theses faults can only be remedied by replacing the
complete measuring chamber (

 45).

We recommend to perform a leak test (leak rate

<1×10

-9

mbar l/s).

6.2.2

Replacing Ionization Chamber and Ignition Aid

Precondition

Troubleshooting (measuring chamber) performed (

 41).

Due to contamination remove the ignition aid with the

removing tool (Accessories

 53).
