4 operation, 1 status indication mag, Led meaning Page 30: Troubleshooting ( → 49)
Page 30: Troubleshooting ( → 49)
30
tina83e1-a (2014-02)

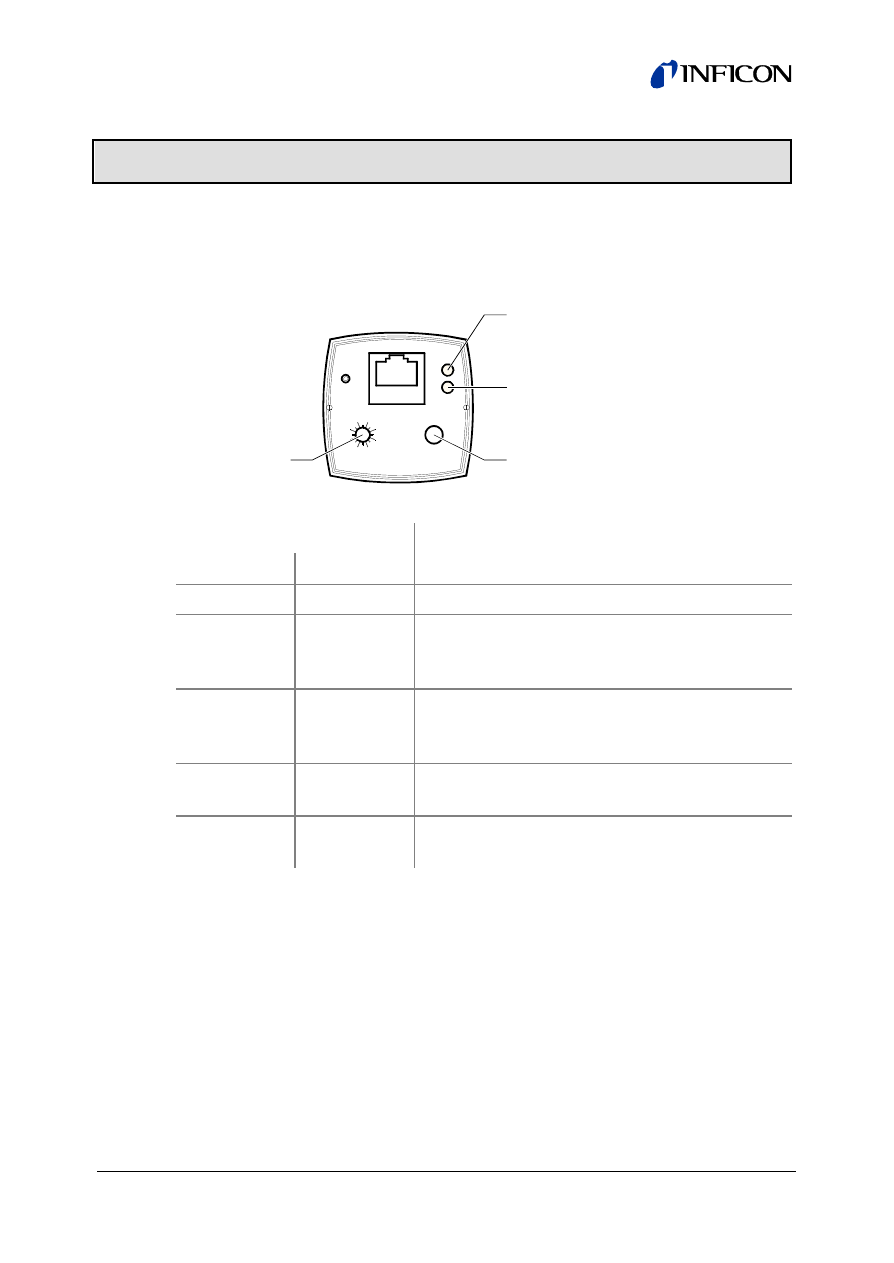

4 Operation
4.1
Status Indication MAG
DIA
ADJ
CAL
HV-ST
ST
E
C
A
0 2
4
6
8
Supply voltage
Error
High voltage
cold cathode
For factory
setting only
Calibration
value
LED Meaning
off off
No
supply
voltage
lit solid
green
off
Supply voltage = ok,
no high voltage in the measuring
chamber
lit solid
green
blinking
green
Supply voltage = ok,
pressure in the cold cathode range, cold
cathode has not ignited
lit solid
green
lit solid
green
Cold cathode has ignited
blinking
red
off EEPROM
error
Troubleshooting (
→ 49).
