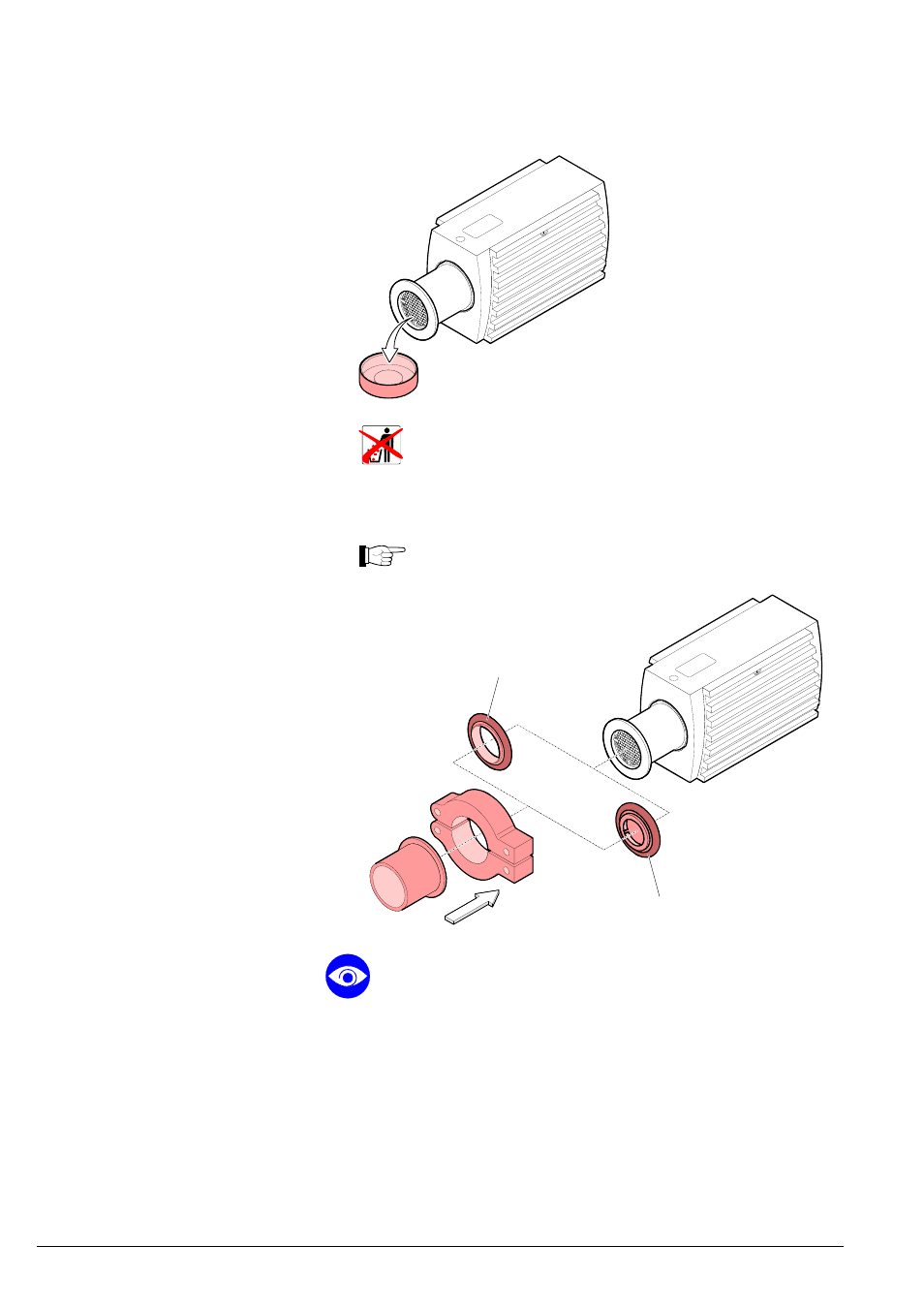

Remove the protective lid.
The protective lid will be needed for maintenance..
Make the flange connection to the vacuum system
INFICON recommends to install the gauge without applying vacuum
grease.
or
Seal with centering ring
Seal with centering ring
and baffle (Option)
When installing the gauge, make sure that the area around the con-
nector is accessible for the tools required for adjustment while the gauge
is mounted (
→ 41, 45).
When installing the gauge, allow for installing/deinstalling the connectors
and accommodation of cable loops.
If you are using a gauge with display, make sure easy reading of the
display is possible.
Procedure
