7 probe control port – INFICON Sensistor ILS500 Leak Detection System User Manual
Page 94

94
Technical Data
ninb63e1-f (1410)
14.4.7
Probe Control Port
3
EXTSTOP
IN
-7 mA
Stop button return side (NO contact) or
contact to +24 VDC.
4
EVAC1
OUT
0.5 A
Venturi valve output.
5
EVAC2
OUT
0.5 A
Evacuation valve output.
6
GASFILL
OUT
0.5 A
Fill valve output.
7
OPTOUT
OUT
0.5 A
8
COM
GND
-1.0 A
Common GND for outputs.
Pin
Signal
Type
Load
Comment

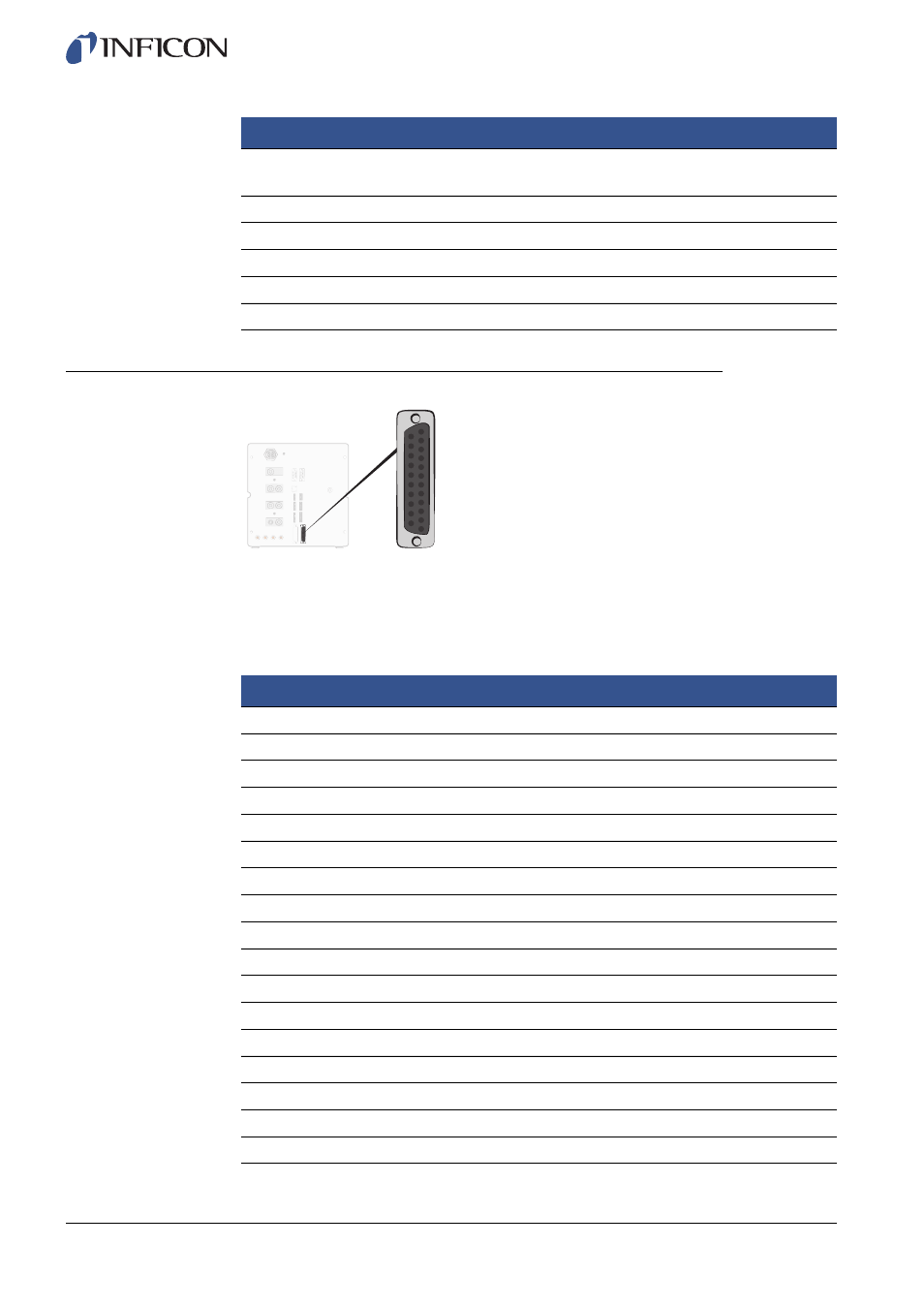

Connector:
25 pin female D-sub
Purpose:
For external connection of ISH2000.
Pin
Signal
Type
Load
Comment
1
COM
GND
-1 A
Common GND for outputs.
2
COM
GND
-1 A
Common GND for outputs.
3
COM
GND
-1 A
Common GND for outputs.
4
IN_0
IN
-0.5 mA
Input of ISH2000 APC system.
5
IN_1
IN
-0.5 mA
Input of ISH2000 APC system.
6
IN_2
IN
-0.5 mA
Input of ISH2000 APC system.
7
IN_3
IN
-0.5 mA
Input of ISH2000 APC system.
8
IN_4
IN
-0.5 mA
Input of ISH2000 APC system.
9
CAL_CONF
OUT
0.5 A
Output of ISH2000 APC system.
10
OUT_6
OUT
0.5 A
Output of ISH2000 APC system.
11
COM
GND
-1 A
Common GND for outputs.
12
COM
GND
-1 A
Common GND for outputs.
13
COM
GND
-1 A
Common GND for outputs.
14
DET_ERROR
OUT
0.5 A
Output of ISH2000 APC system.
15
LEAK_OUT
OUT
0.5 A
Output of ISH2000 APC system.
16
DET_ON
OUT
0.5 A
Output of ISH2000 APC system.
17
DET_SIGNAL
OUT
0.5 A
Output of ISH2000 APC system.
