46

Recipes

ninb63e1-f (1410)

9.3

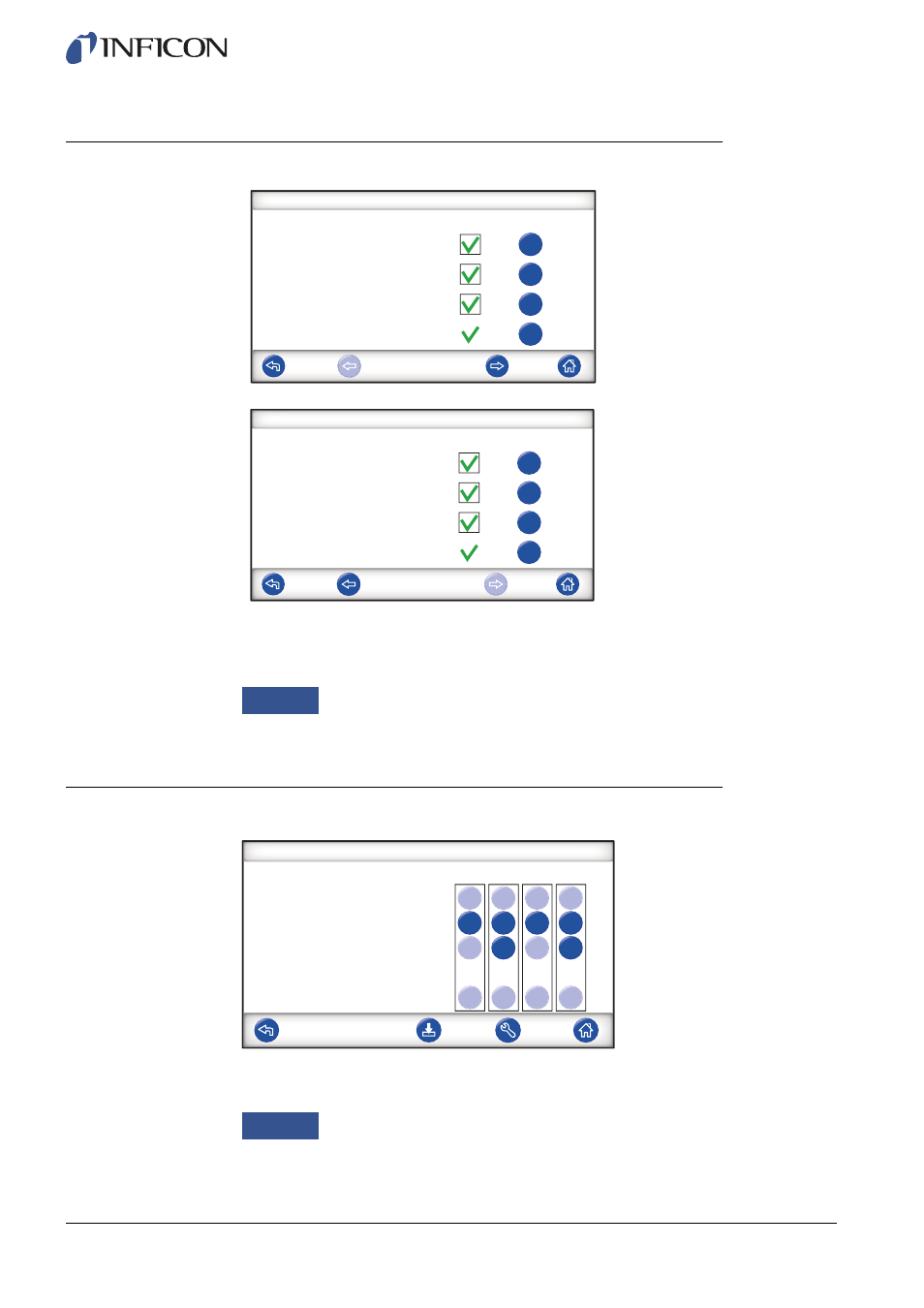

Test Settings

1

Click Settings >> Test Settings to enter the two Test Settings menus.

2

Set which steps to include in the test sequence by selecting the ON boxes.

3

Click Setup to the right of each selected step to enter the Setup menus.

9.3.1

Tooling Connection

Connection Sequence menu shows the settings made for Tooling Connection.

1

Click on the Settings symbol to edit the settings.

Test Settings

Tooling Connection

Pre Evacuation

Gross Leak Test

Tracer Gas Filling

ON

Setup

Setup

ON

Test Settings

Blockage Test

Tracer Gas Test

Gas Evacuation

Tooling Disconnection

Notice

For more information about each step, see on page 40.

Connection Sequence

Stand by

Step

Step

Step

Test

ON

ON

OFF

1

2

3

Tooling Outputs

2

3

4

1

Notice

Up to four connection steps can be programmed.
