5.3 Chamber Test with Leak Locating Option
Chamber Test with Leak Locating Option

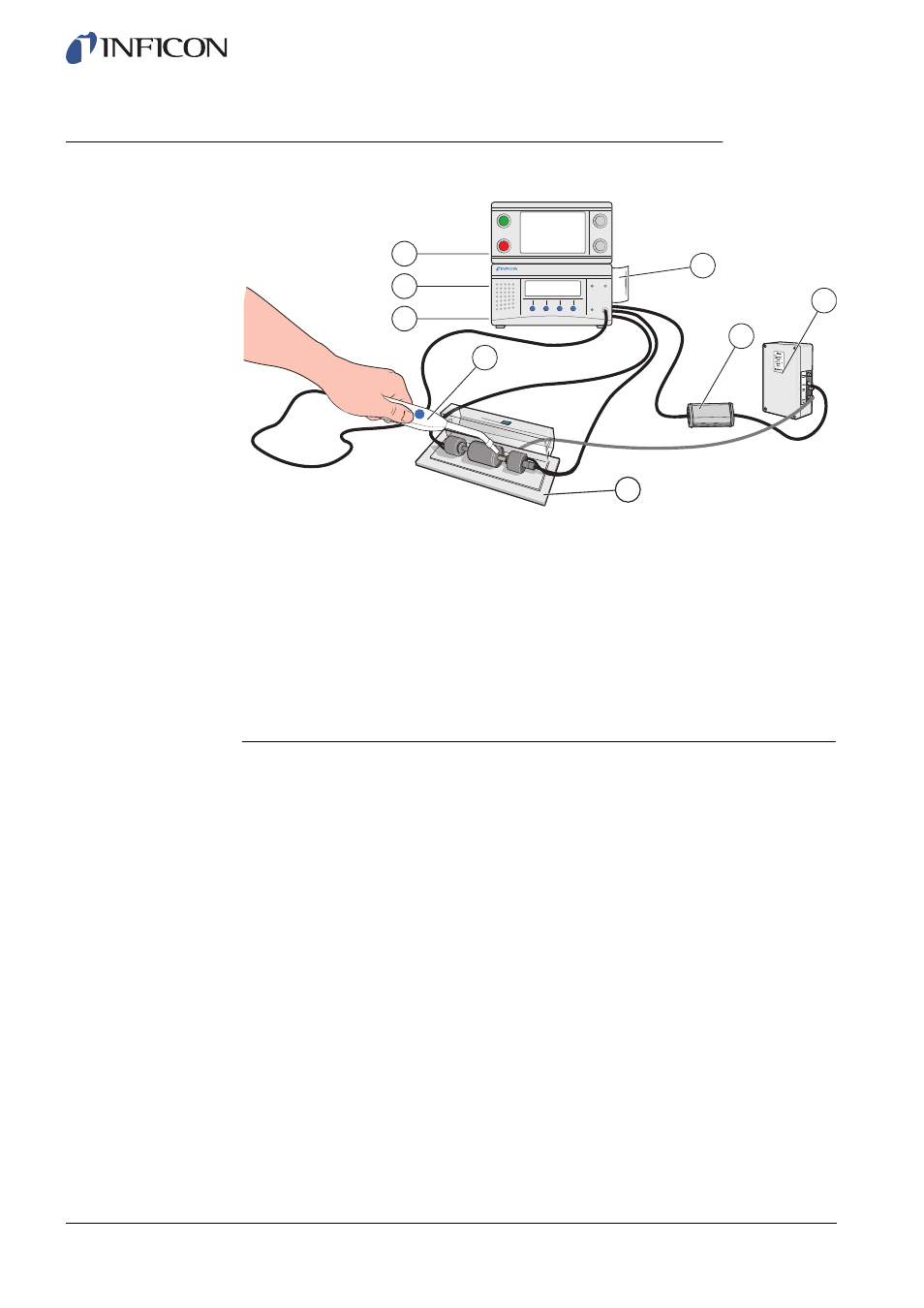

In this system example the ILS500 includes an Active Holder for Hand Probe, a Hand
Probe and a Automatic Probe. This enables you to combine a leak test with a Active
Probe with leak locating with a Hand Probe.
The Active Probe first measures within the chamber. The extra Hand Probe will be
automatically activated if a leak is detected and the operator can immediately open the
chamber and locate the leak.
The Detector automatically switches over to locating mode when the probe is lifted
from the holder. The gas in the object under test is automatically removed when the
probe is replaced in the holder.
The operator can skip the locating process by pressing STOP instead of lifting the
probe.
1 Power
2 Compressed Air
3 Tracer Gas
4 Hand Probe
5 Test Chamber
6 Automatic Probe, AP29 ECO
7 COMBOX
8 Active Probe Holder (optional)
2
1
6
8
3
5
4
7
