System Examples 21
ninb63e1-f (1410)
5.2 Automatic Chamber Test
Automatic Chamber Test
This example is using the integrated tooling system for automatic connection of the
tested object. ILS500 will automatically fill the object with tracer gas, and maintain the
correct pressure.
An automatic gas leak test is performed after filling and accumulation of leaking gas in
the test chamber. The gas test is made using the Active Probe AP29. ILS500 will signal
LEAK if leakage above the set limit is registered.
The tracer gas is automatically removed after the test and the tooling system
disconnects the test fixture.

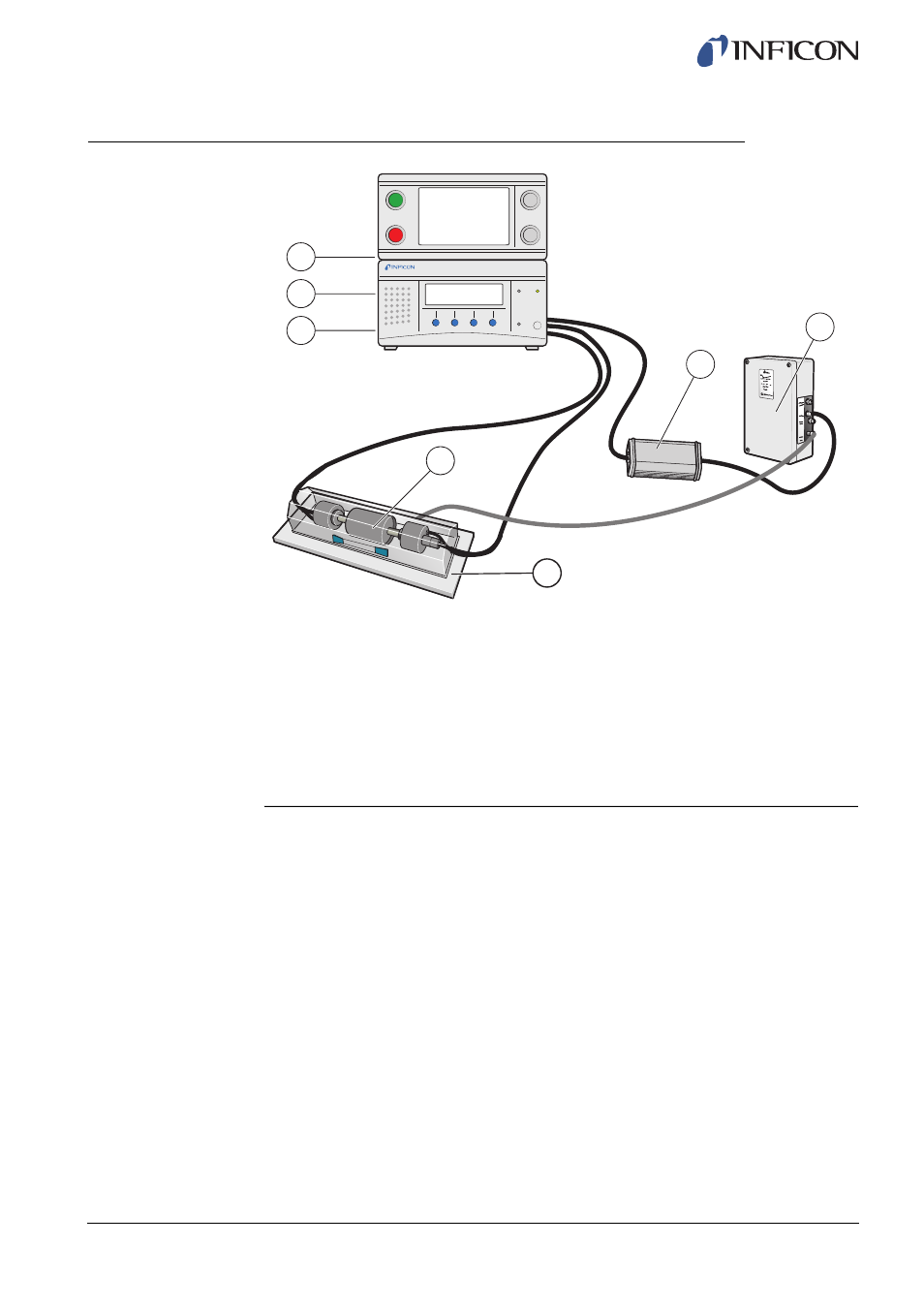

1 Power
2 Compressed Air
3 Tracer Gas
4 Test Object
5 Test Chamber
6 Automatic Probe, AP29 ECO
7 COMBOX
2
1
4
5
6
7
3
