Echo Preset Station Installation
Echo Preset Station Page 5 of 6 ETC, Inc.
Installing the Faceplate
The faceplate is secured to the station with two magnets that are located on the
bottom edge of the faceplate.
Step 1:
Align the top of the faceplate approximately 20 degrees to the
station.

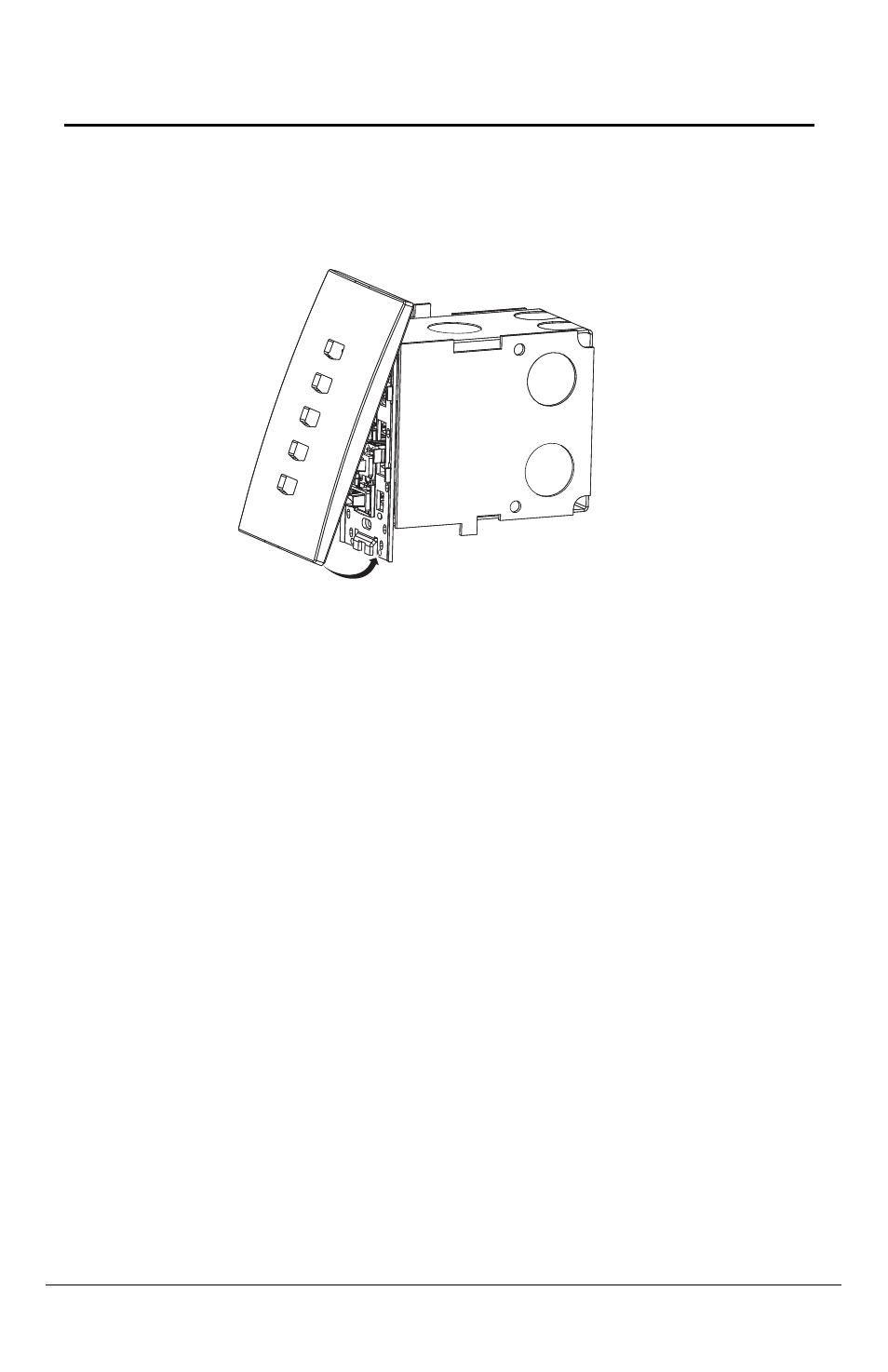

Step 2: Hook the top of the faceplate on the tabs located on the top of the
station electronics assembly. To ensure the faceplate is hooked
properly on the top hook, wiggle it slightly side to side while the
bottom is angled about 20 degrees from the wall.
Step 3: Swing the bottom of the faceplate down until the magnets engage.
Step 4: If the faceplate does not fully attach, wiggle the bottom of the plate
until the magnets are seated properly to the station and the
faceplate is secure.
Custom Settings
You can change the presets associated with the station as well as change the
color of all the LEDs on any given station.
Assigning Presets
Stations default to controlling presets 1-5. Any station can be set to control any
consecutively numbered block of presets. For example: a 5-button station can
control presets 1-5, 3-7, 14-18, and so on.
