E T C I n s t a l l a t i o n G u i d e
Echo Preset Station Installation
Echo Preset Station Page 3 of 6 ETC, Inc.

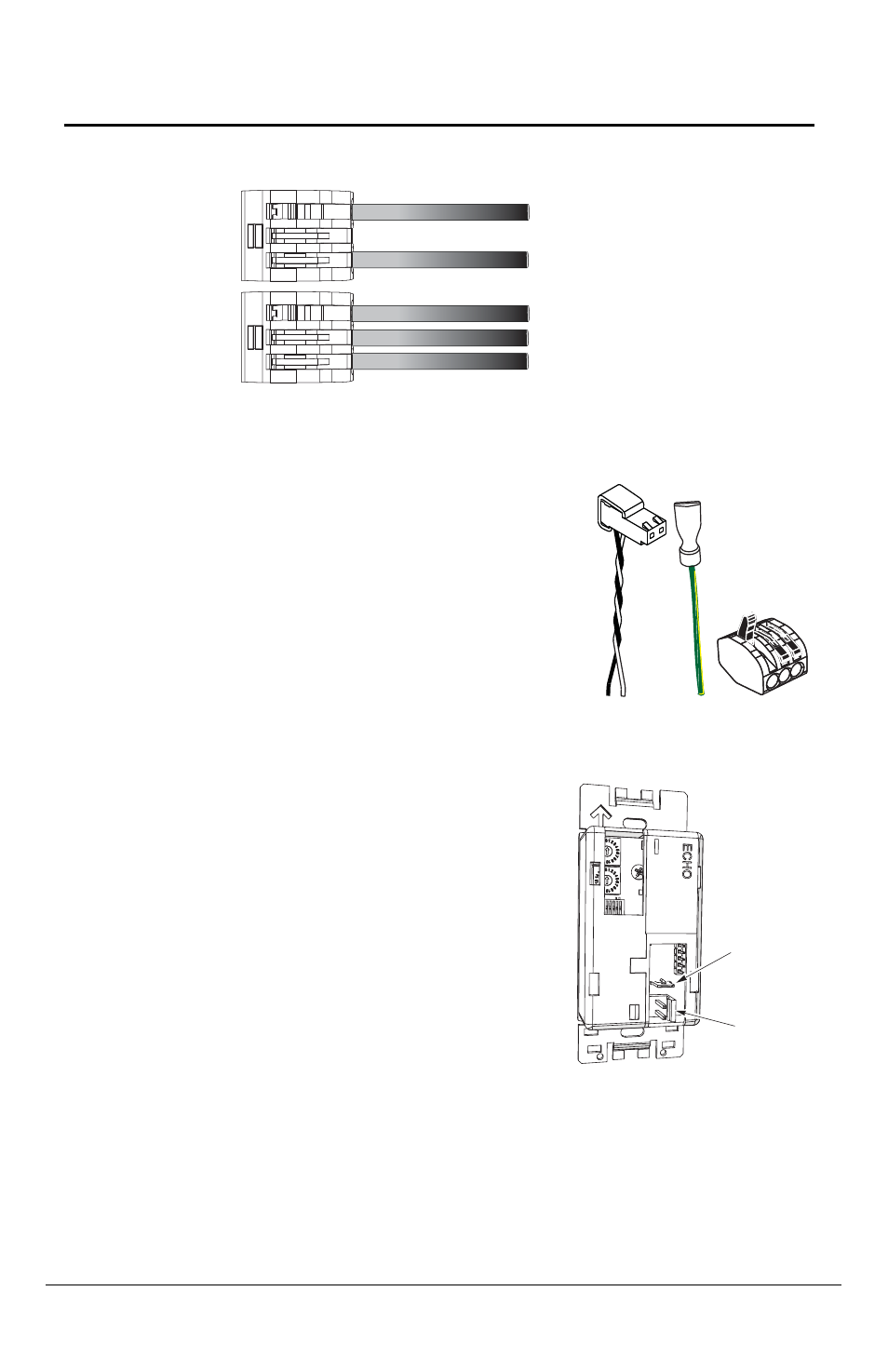

Connect the Wiring
Step 4: Terminate and connect the station wiring.
a: Locate the data pigtail and two WAGO LeverLock connectors
found in the termination kit.
b: Strip 3/8” (9-10mm) from the
ends of each wire (both pigtail
and installed data wire).
c: Open the terminal levers on
the WAGO connector and
insert the Belden 8471 black
(-) lead wire and the black (-)
lead from the pigtail into the
terminals.
d: Close the levers onto the
wires, securing the
connection between the two.
e: Repeat this process for the Belden 8471 white (+) wire and
remaining white (+) pigtail wire using another WAGO connector.
f: Attach the connector onto the
preset station data connector.
Step 5: Terminate the ESD drain (ground)
wire.
a: Locate the ground pigtail and one
WAGO LeverLock connector from
the termination kit.
b: Strip 3/8” (9-10mm) from the end
of the ground wire and ground
pigtail.
c: Open the terminal levers on the
connector and insert the installed
(typically green/yellow) ESD drain
(ground) wire and the green/yellow lead from the pigtail into the
terminals.
d: Close the levers onto the wires, securing the connection between
the two.
Topology of a single
station installation
Topology of multiple
stations installed in
series
Installed control wire
Pigtail wire
Installed control wire
Installed wire to next station
Pigtail wire
Station power
pigtail
Ground
pigtail
WAGO
Ground
spade
Data
connector
