ETC Unison Auxiliary Enclosure Series User Manual
Page 18

15
Unison Enclosure Installation
Step 1:
Pull the line phase, neutral, and ground cables to the enclosure through the
conduit openings previously prepared.
Step 2:
Strip one inch of insulation from the end of each cable and terminate them to the
lugs. Line connections are labeled L1, L2, L3 (for three phase) and N. The
equipment grounding lug is labeled with the universal grounding symbol for easy
identification.
Step 3:
Tighten the lugs to the correct torque based on cable size. Refer to the following
table.

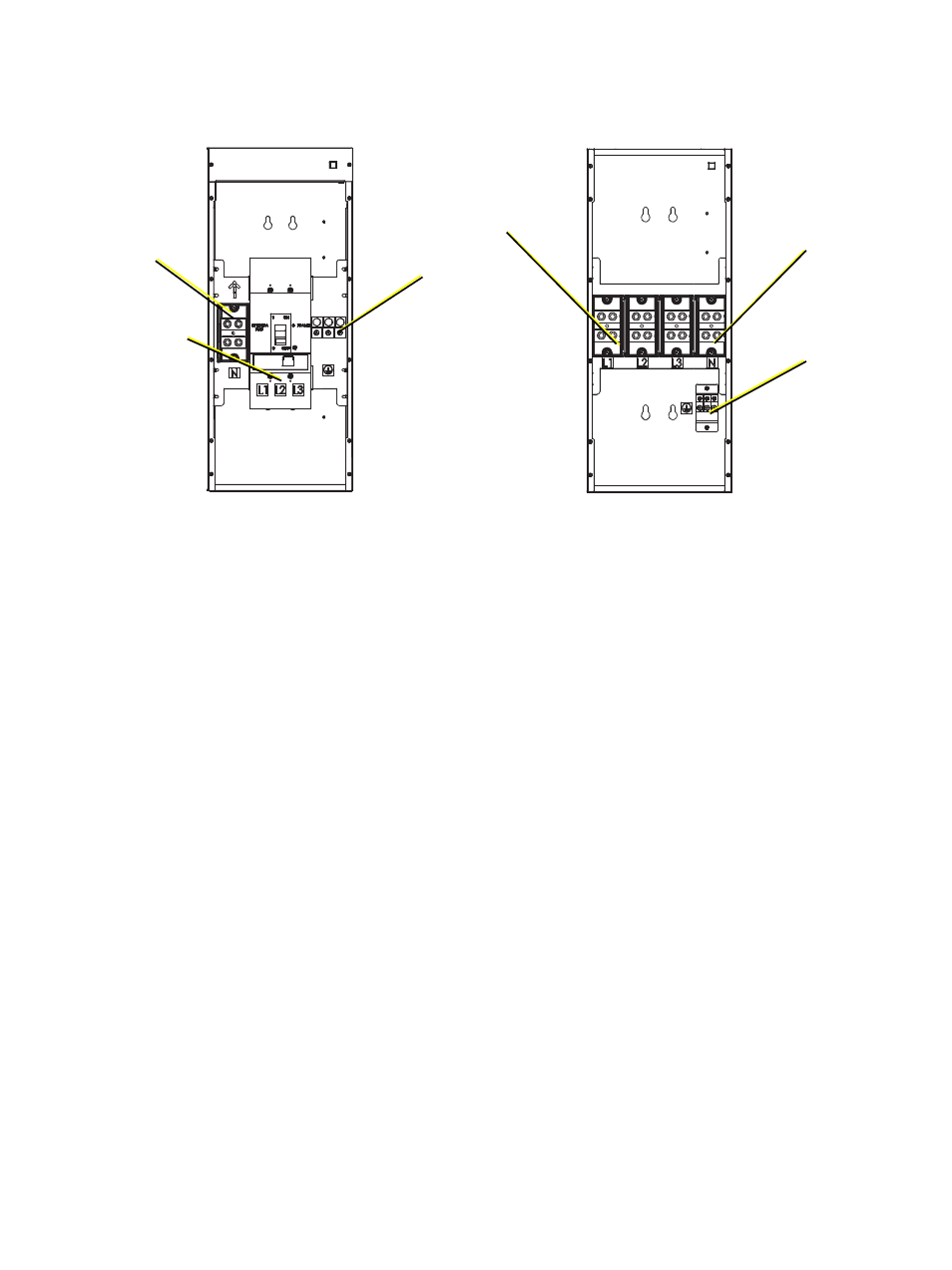

Phase lugs
Neutral lugs
Ground lugs
Neutral lugs
Phase lugs
Ground lugs
Main Lug
Main Circuit Breaker
