Whistle and Tweeter Installation Guide Technical Specifications
MAN-WHTWIG (Ver. 1.604)
www.elmomc.com
67
4.6. I/Os
The Whistle and Tweeter have:
• 6 Digital Inputs
• 2 Digital Outputs
• 1 Analog Input
4.6.1. Digital Input Interfaces
Feature Details
Type of input Optically isolated
All six inputs share one signal return line
Input current
for all inputs Iin = 2.4 mA @ Vin = 5 V
High-level input voltage 2.5 V < Vin < 10 V, 5 V typical
Low-level input voltage 0 V < Vin < 1 V
Minimum pulse width > 4 x TS, where TS is sampling time
Execution time (all inputs):
the time from application of
voltage on input until execution
is complete If input is set to one of the built-in functions — Home,
Inhibit, Hard Stop, Soft Stop, Hard and Soft Stop,
Forward Limit, Reverse Limit or Begin — execution is
immediate upon detection: 0If input is set to General input, execution depends on
program. Typical execution time: ≅ 0.5 msec.
High-speed inputs – 5 & 6
minimum pulse width, in high-
speed mode T < 5 µsec
Notes:
Home mode is high-speed mode and can be used for
fast capture and precise homing.
High speed input has a digital filter set to same value
as digital filter (EF) of main encoder.
Highest speed is achieved when turning on
optocouplers.

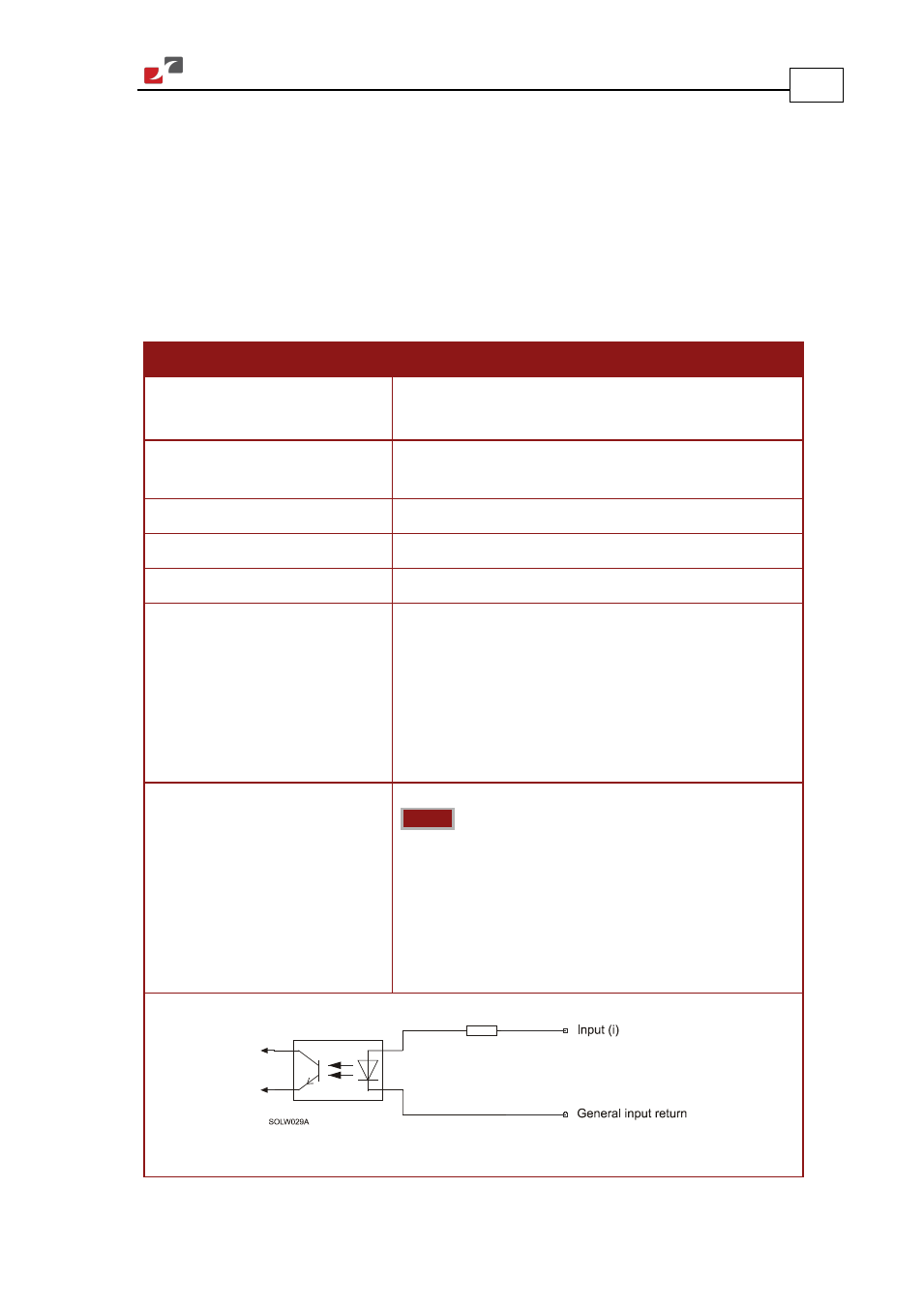

Figure 36: Digital Input Schematic
Rin = 1.43K
