Whistle and Tweeter Installation Guide

Installation

MAN-WHTWIG (Ver. 1.604)

www.elmomc.com

37

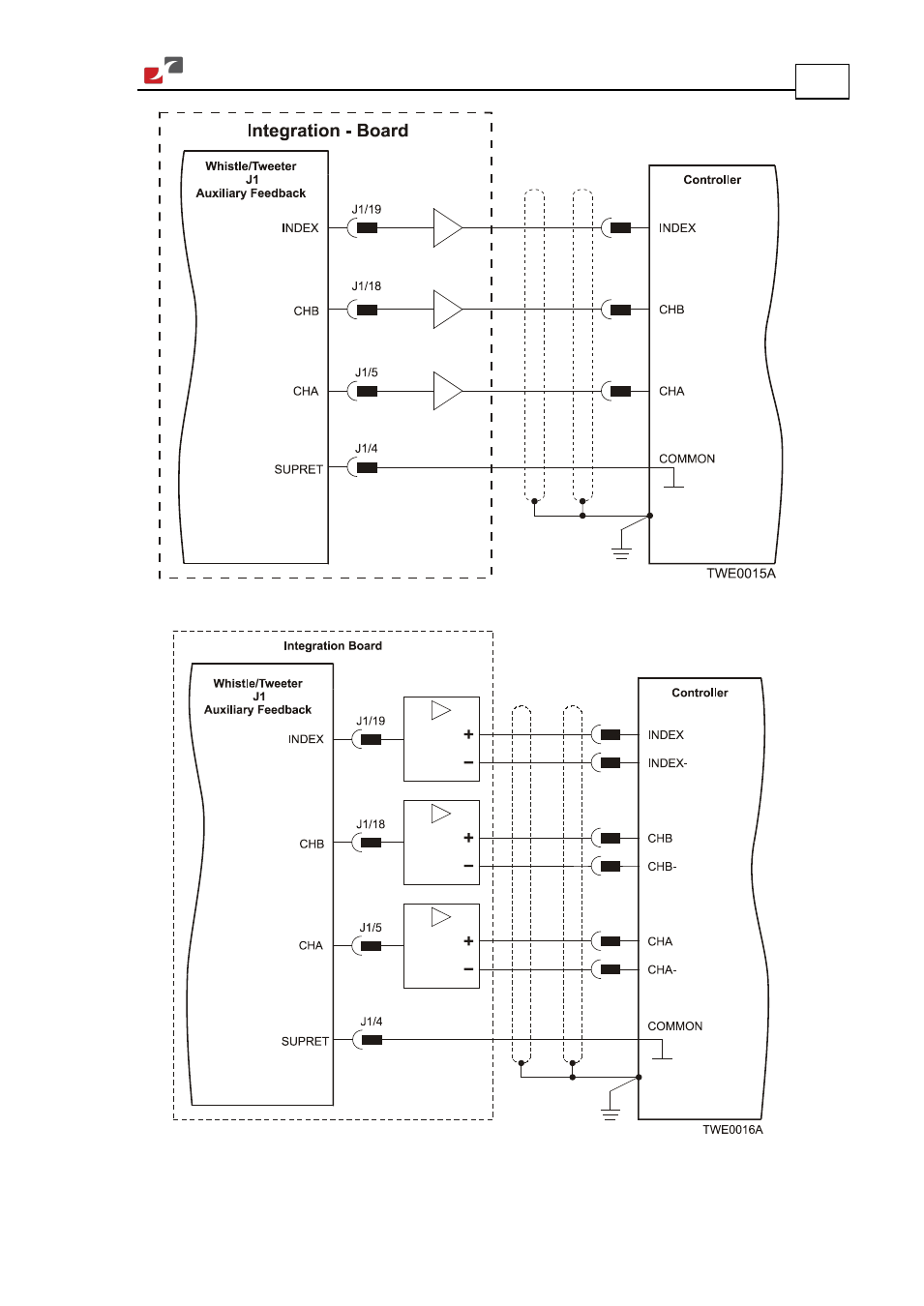

Figure 19: Emulated Encoder Buffered Output – Recommended Connection Diagram

Figure 20: Emulated Encoder Differential Output – Highly Recommended Connection Diagram
