Whistle and Tweeter Installation Guide

Installation

MAN-WHTWIG (Ver. 1.604)

www.elmomc.com

31

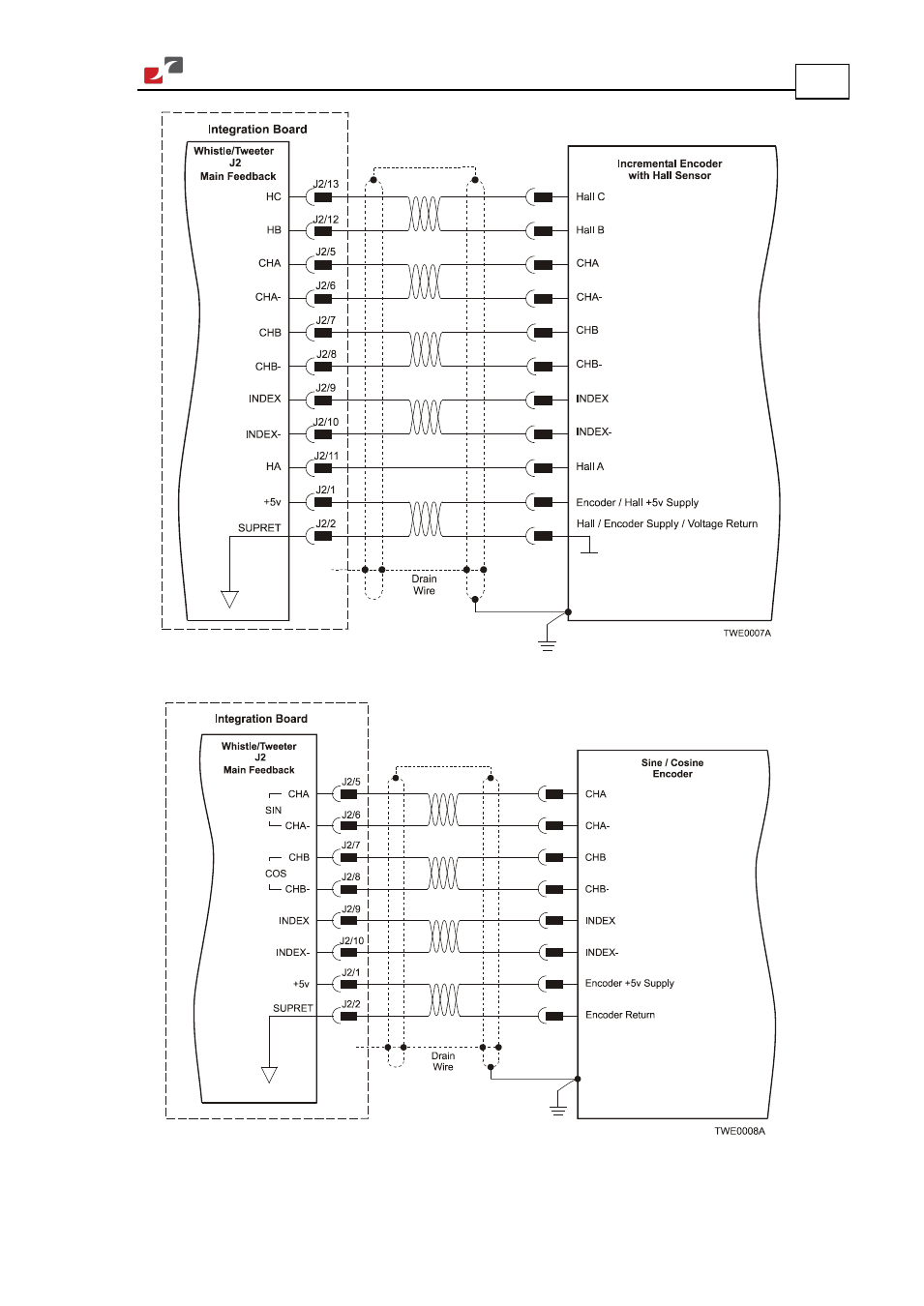

Figure 11: Main Feedback- Incremental Encoder Connection Diagram

Figure 12: Main Feedback – Interpolated Analog (Sine/Cosine) Encoder Connection Diagram
