Whistle and Tweeter Installation Guide

Installation

MAN-WHTWIG (Ver. 1.604)

www.elmomc.com

33

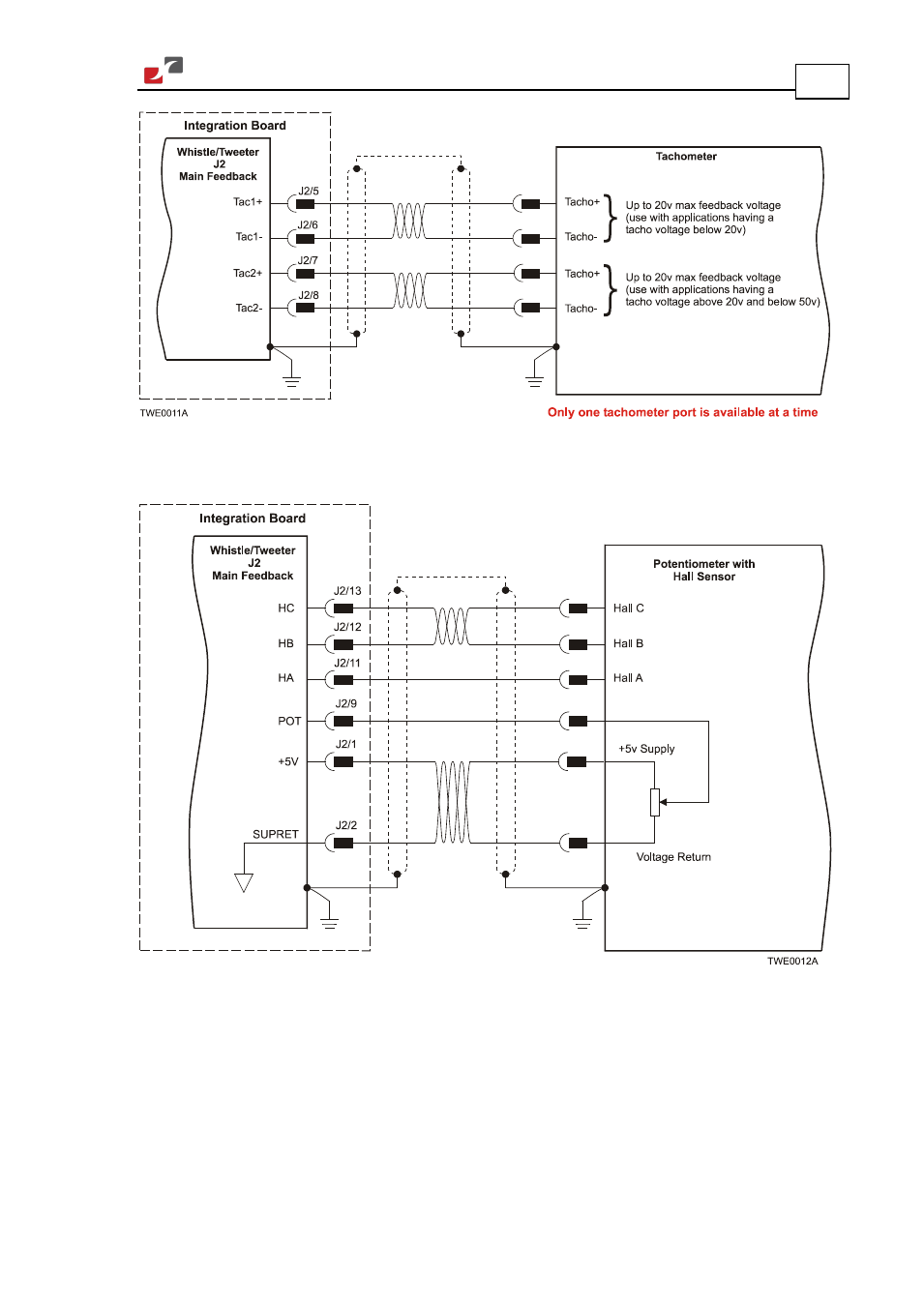

Figure 15: Main Feedback – Tachometer Feedback Connection Diagram for Brush Motors

Figure 16: Main Feedback – Potentiometer Feedback with Digital Hall Sensor

Connection Diagram for Brushless Motors
