Whistle and Tweeter Installation Guide

Installation

MAN-WHTWIG (Ver. 1.604)

www.elmomc.com

43

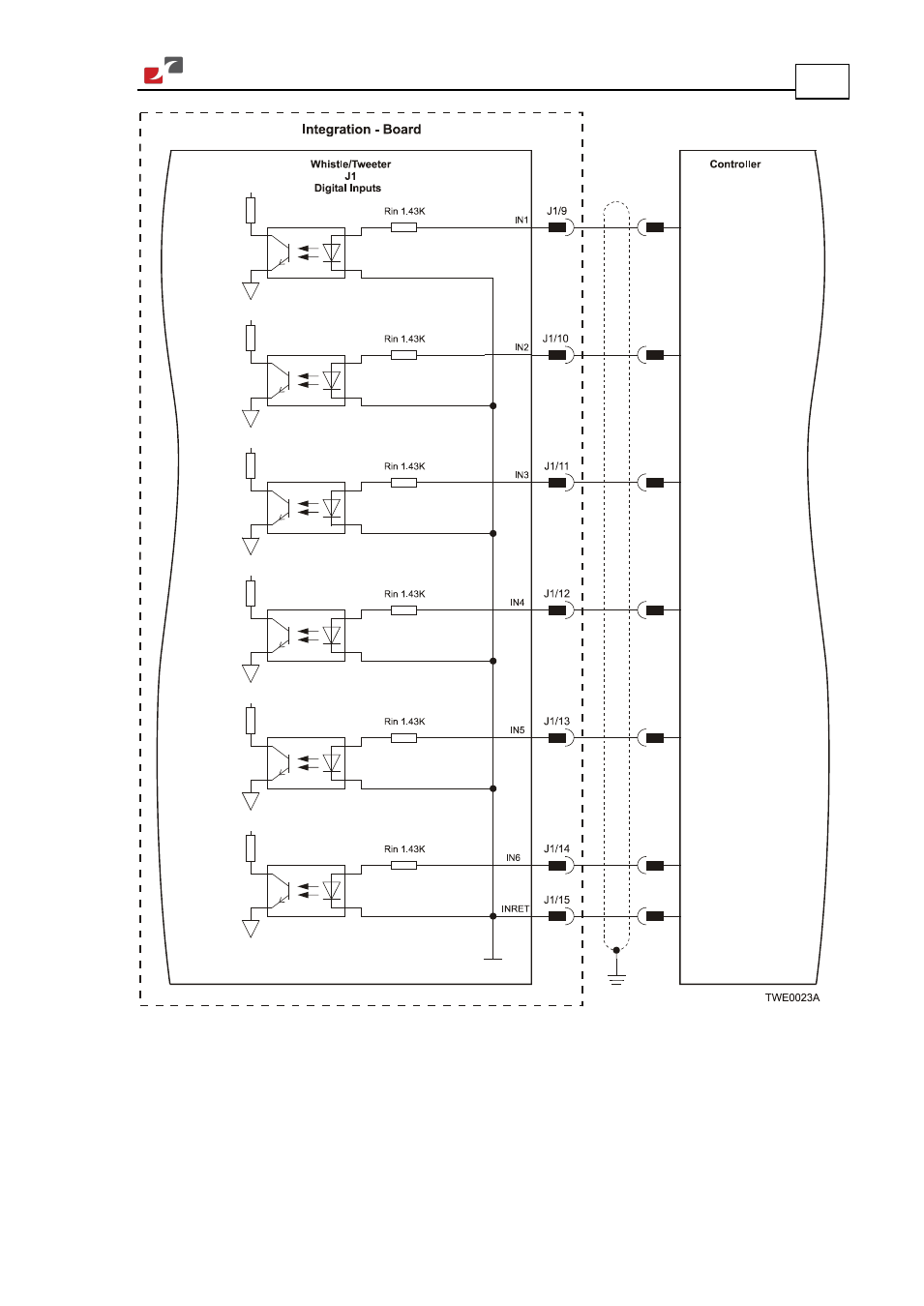

Figure 27: Digital Input Connection Diagram
