Whistle and Tweeter Installation Guide

Introduction

MAN-WHTWIG (Ver. 1.604)

www.elmomc.com

15

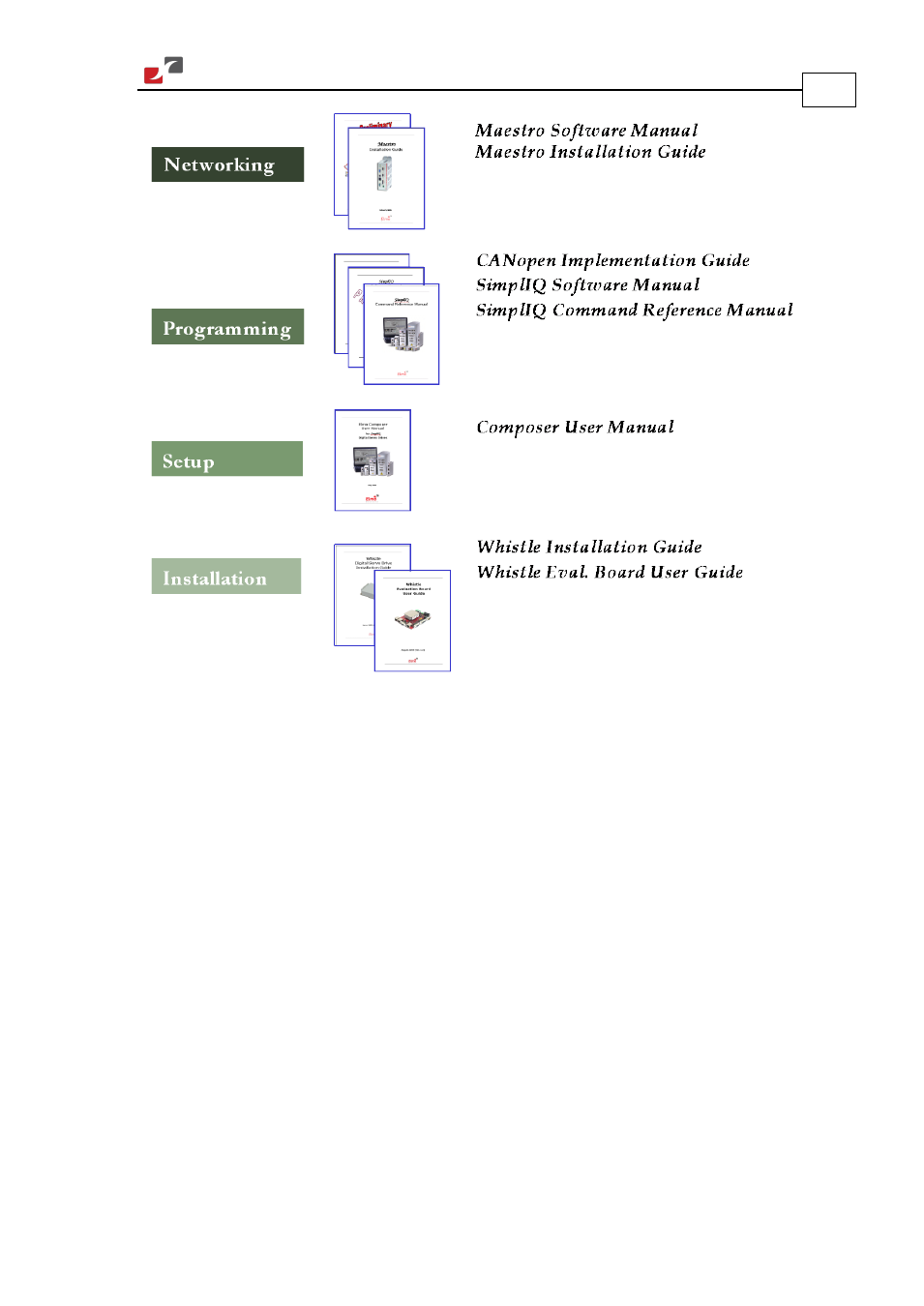

Figure 2: Elmo Digital Servo Drive Documentation Hierarchy

As depicted in the previous figure, this installation guide is an integral part of the Whistle and
Tweeter documentation set, comprising:

The Whistle Evaluation Board User Guide contains information about how to use the

Whistle Evaluation Board and Cable Kit

The Composer Software Manual, which includes explanations of all the software tools

that are part of Elmo’s Composer software environment

The SimplIQ Command Reference Manual, which describes, in detail, each software

command used to manipulate the Whistle and Tweeter motion controller

The SimplIQ Software Manual, which describes the comprehensive software used with

the Whistle and Tweeter

This manual is related to the following products:
