Whistle and Tweeter Installation Guide
Installation
MAN-WHTWIG (Ver. 1.604)
26
3.7. Main Power and Motor Power
The Whistle and Tweeter receive power from main and delivers power to the motor.
Pin Function
Cable
Pin Positions
VP+ Pos. Power input
Power
PR Power return
Power
PE Protective earth
Power
Brushless
Motor
Brush DC
Motor
PE Protective earth
Motor
Motor
M1 Motor phase
Motor
N/C
M2 Motor phase
Motor
Motor
M3 Motor phase
Motor
Motor
Note:
When connecting several drives to several motors, all should be wired in the same
motor phases and feedback sequences. This will enable the same SimplIQ program to run
on all drives.
Table 2: Connector for Main Power and Motor
3.7.1.
Connecting Motor Power
Connect the M1, M2, M3 and PE pins on the Whistle and Tweeter in the manner described in
Section 3.5 (Integrating the Whistle or Tweeter on a PCB). The phase connection is arbitrary as
the Composer will establish the proper commutation automatically during setup. However, if
you plan to copy the setup to other drives, then the phase order on all copy drives must be the
same.

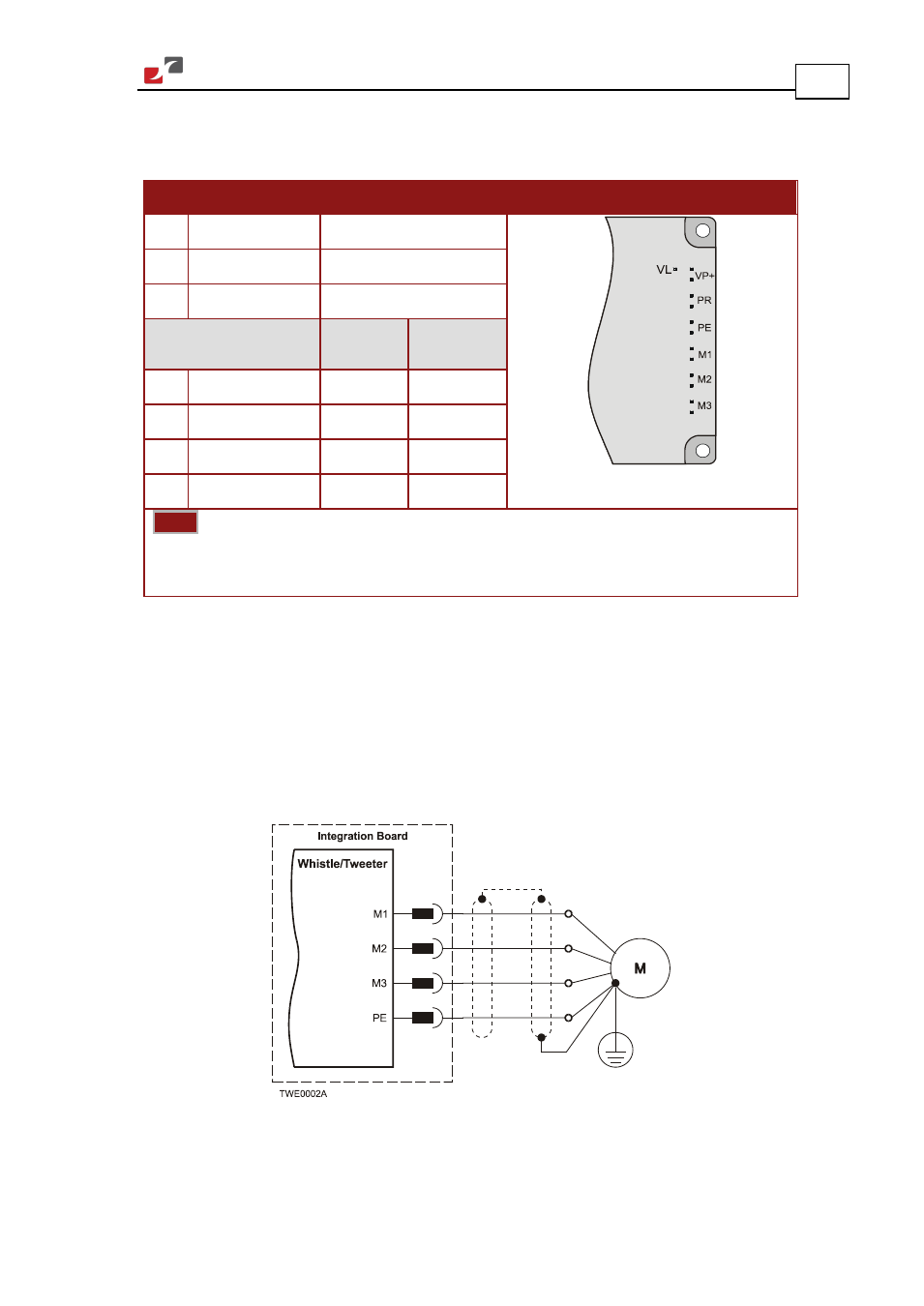

Figure 6: AC Motor Power Connection Diagram
