Digital Input 2 Status Shows the status of the signal connected to
the communication module’s digital input 2.
Output Relay Status Shows the status of the communication mod-
ule’s output relay.
These indicators show the status of sensor calibration.
Calibration History
The communication module stores and the OIS displays the baseline cali-
bration and the last seven calibration records (high and low calibration
points). These records allow the operator to spot trends in sensor sensitivi-
ty or other problems. The time and date stamp is generated in the com-
munications module based on information from the gateway. If the sensor

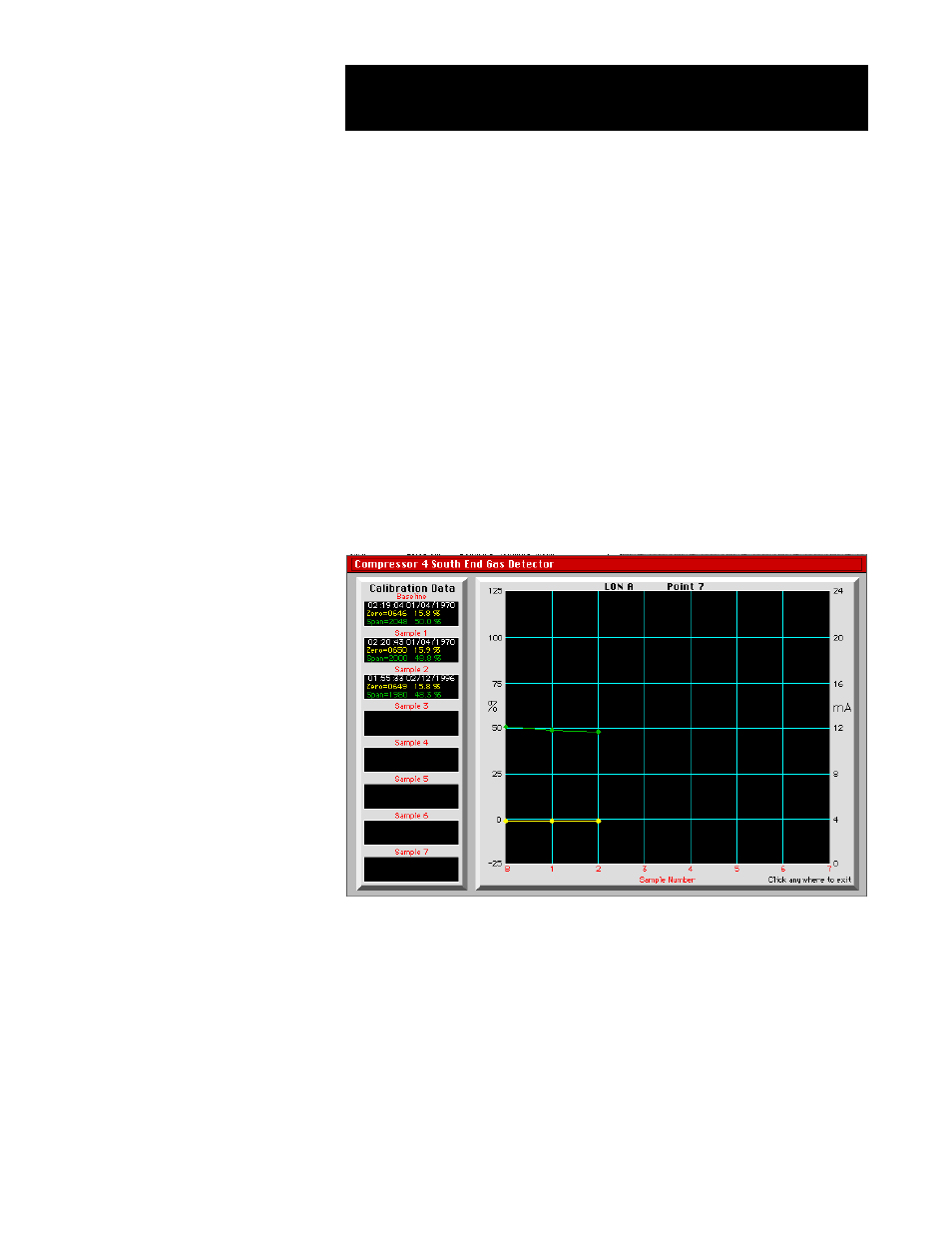

supports “trending” the Calibration History field will be framed in red. By
clicking the field (inside the red box) a graphic representation of the cali-
bration history is displayed.
Includes Alarm 1 and Alarm 2 status indicators and the current setpoint
value for Alarm 1 and Alarm 2. The alarm setpoint values are defined in
the point configuration screen for the current point (sensor).
The communication module stores and displays the last eight alarms
(Alarm 1 or Alarm 2). The display includes the type of alarm and a time
and date stamp for the alarm. The time and date stamp is generated in
the communication module based on information from the gateway.
Communication Module Point Display
I/O I
NFORMATION
C
ALIBRATION
I
NFORMATION
A
LARM
I
NFORMATION
A
LARM
H
ISTORY
3.6
