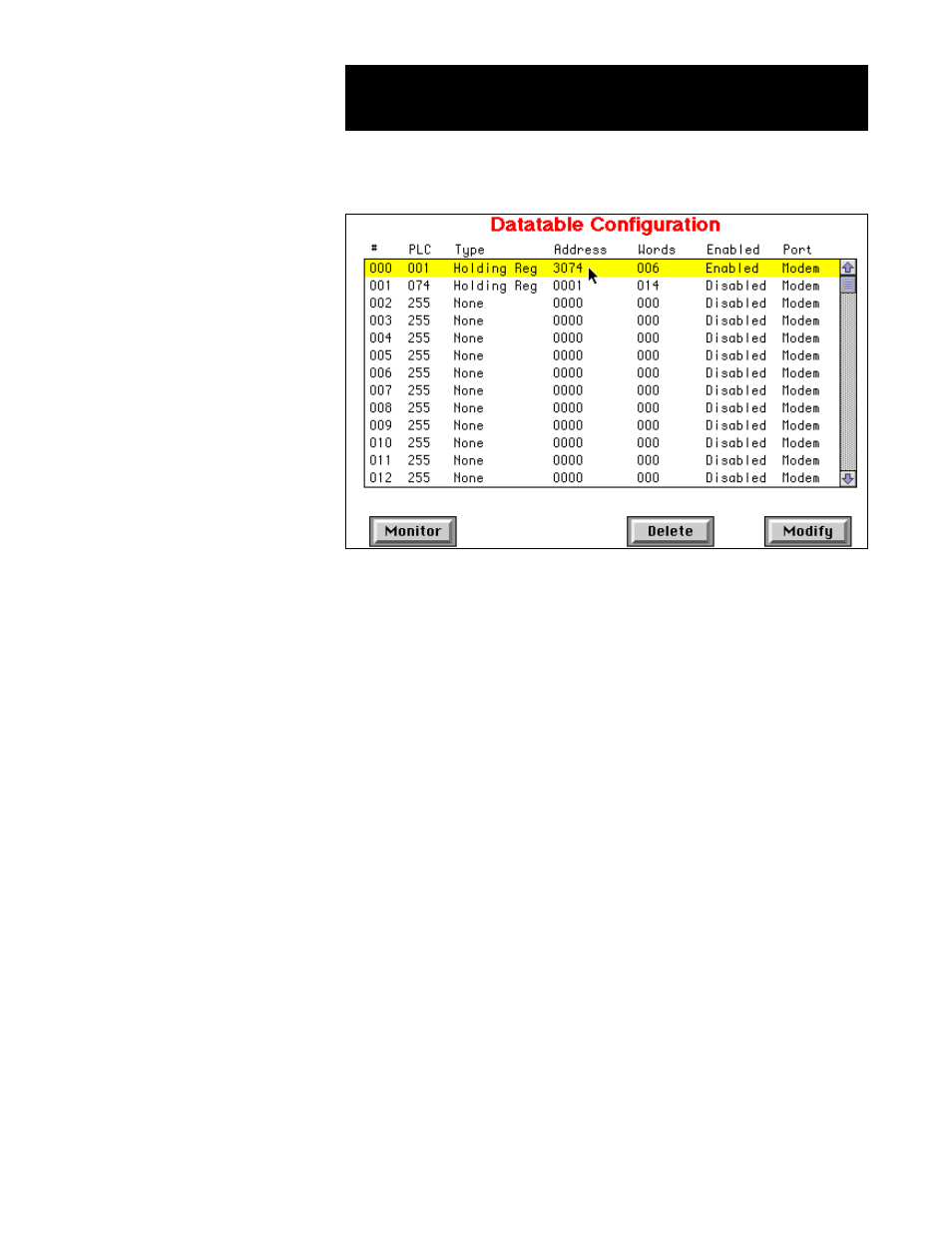

1. Select Datatable Configuration from the Configure menu. The
Datatable Configuration screen appears:
# The datatable number is a numeric index used by
EagleVision for reference. It is also used by XCMD’s in
the graphics package to selectively enable or disable
the reading of various datatables.
PLC The Modbus address for a device, a number from 1 to
247. An address of 255 means the table is not config-
ured.
Type The type of memory (coil, input, input register or holding
register).
Address Starting address in Modbus notation (minus the register
type), e.g., address 0001=40001, address
3073=43073 for holding registers.
Words The number of words the OIS will read.
Enabled Indicates whether the OIS is currently reading this area
(user-defined in the Datatable Modifier dialog box and
can be toggled via XCMD’s from the graphics pack-
age).
If the enable/disable is modified by means of the appropriate XCMD
while viewing this list, the list will not reflect the change until this screen is
re-entered.
Datatable Configuration ( Á4)
D
ATATABLE
C
ONFIGURATION
S
CREEN
2.20
