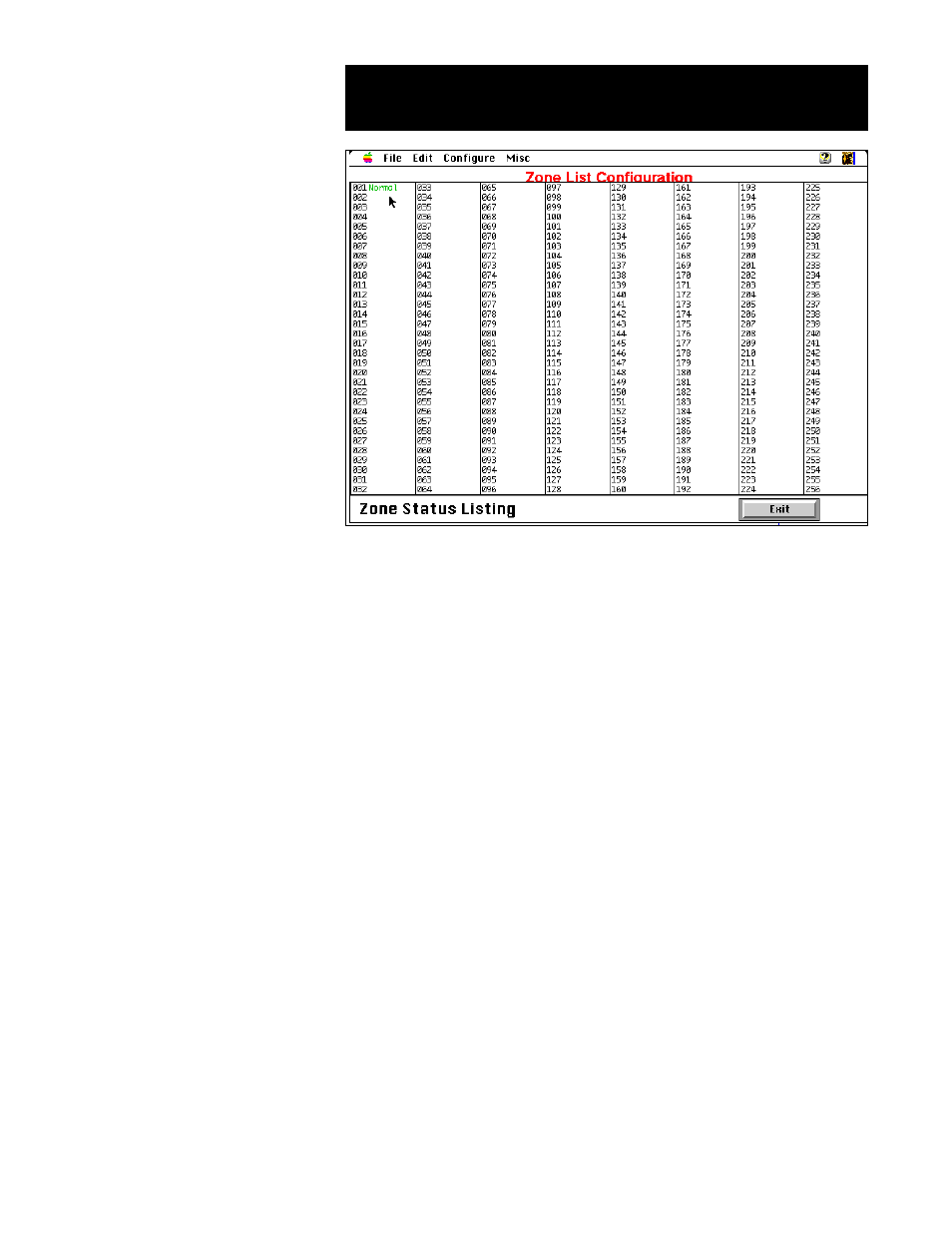

This screen shows the status of all 256 possible zones. Unconfigured
zones are blank. Configured zones will display one of five possible
states: Normal, Fault, Alarm, New Fault, or New Alarm.
As described above, there are five zone “states” represented by the num-
bers 0 through 4. The higher the number, the higher the priority of that
state. The condition of a zone can be obtained by using either the zone
monitor screen, or through SuperCard scripting with either of two zone
XCMD’s.
Example 1: One of the nodes in Zone 1 indicates a fault.
EagleVision’s Zone Monitor screen will show Zone 1’s
condition as “New Fault”. Once the operator acknowl-
edges the fault by using EagleVision’s acknowledge but-
ton, or the AckEvents XCMD from SuperCard, the status
will change to “Fault.”
Example 2: With Zone 1 still in a “Fault” status, an alarm occurs.
EagleVision’s Zone Monitor screen will show Zone 1’s
condition as “New Alarm.” Even though there is still a
fault present, alarms have a higher priority and will be
reported over the fault condition. Once the operator
acknowledges the alarm by using EagleVision’s acknowl-
edge button, or the AckEvents XCMD from SuperCard,
the status will change to “Alarm.”
Zone Configuration ( Á6)
