3. To configure or edit a zone, select a zone to modify by double-click-
ing on the zone of interest, or by clicking once on the zone and

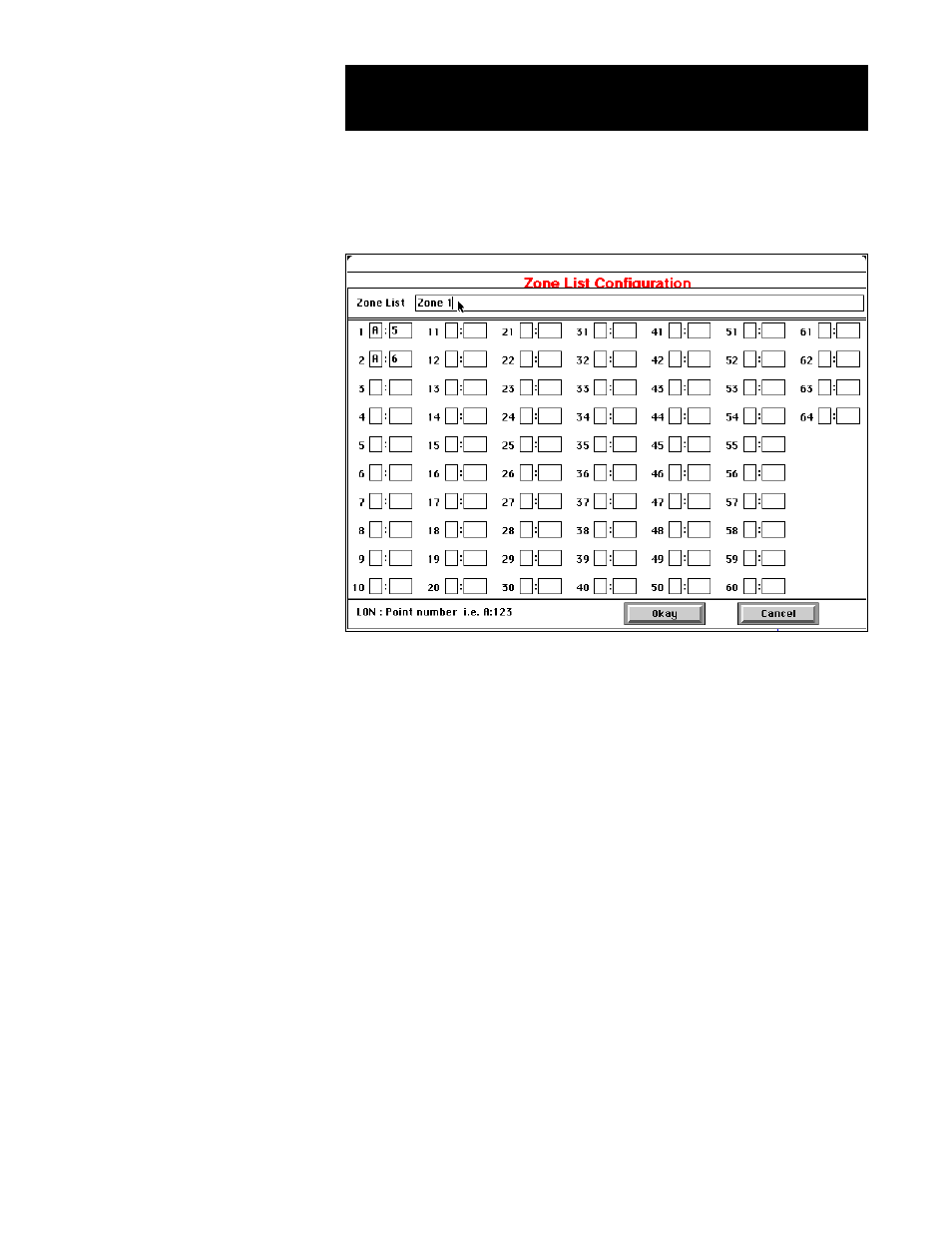

then selecting the modify button. This will open the “zone list” dia-
log box.
The zone list dialog box contains room for specifying up to 64 nodes
to be included in the zone. Each node requires two entries, LON
and node. The LON is identified as A, B, C, or D, and the node is
identified as 5 through 250.
For maximum performance, do not leave any blanks in the node assign-
ments. If additional points will be added to the zone later, then add them
to the end or rework the zone. Blank spots are inefficient and degrade
performance!
Zone Configuration ( Á6)
2.34
95-8434
A1810
