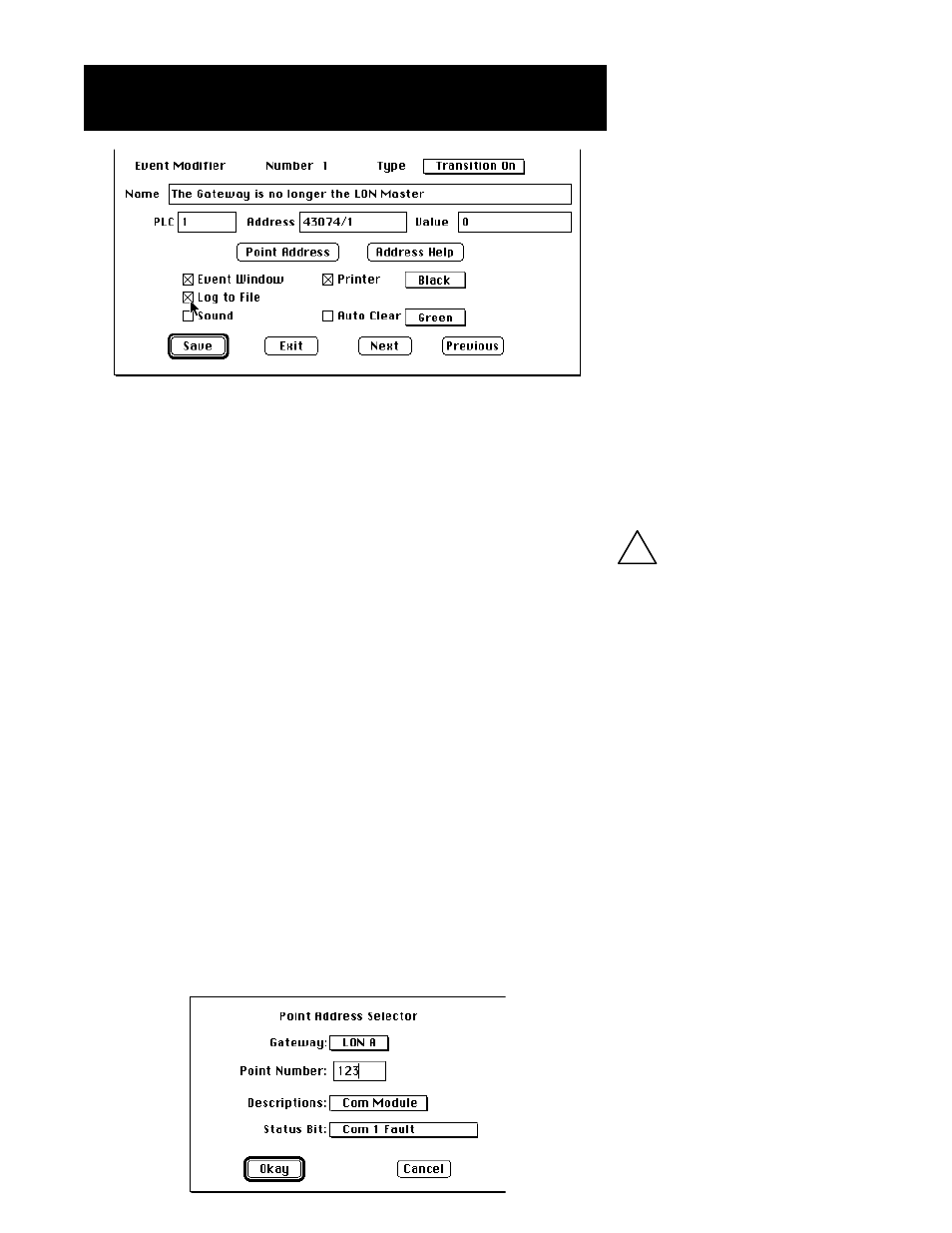

6. Enter the Event Name.
Enter the name of the event. It will appear in the event window, in
daily event logs, and when printed. The name can be up to 48
characters long and use any combination of letters, numbers, sym-
bols, etc. available from the keyboard.
If the event name has a “comma” in it, the “tab” character must be used
to delimit fields and the “Use Tab for Export/Import delimiter” option in
the preference settings found under the “Misc” menu must be selected.
7. Enter the PLC number (i.e. gateway Modbus address).
8. Enter the event address.
The address for the event must conform to the Modbus addressing
format as shown below. This information is available from the Help
button of the Event Modifier dialog box.
Address Description
00004 Coil
10001 Input
30001 Input Register
30001/13 Input Register/Bit
40001 Holding Register
40001/11 Holding Register/Bit
If the event being configured is one of the point status bits, the
address can be automatically calculated by using the “Point
Address” button.
