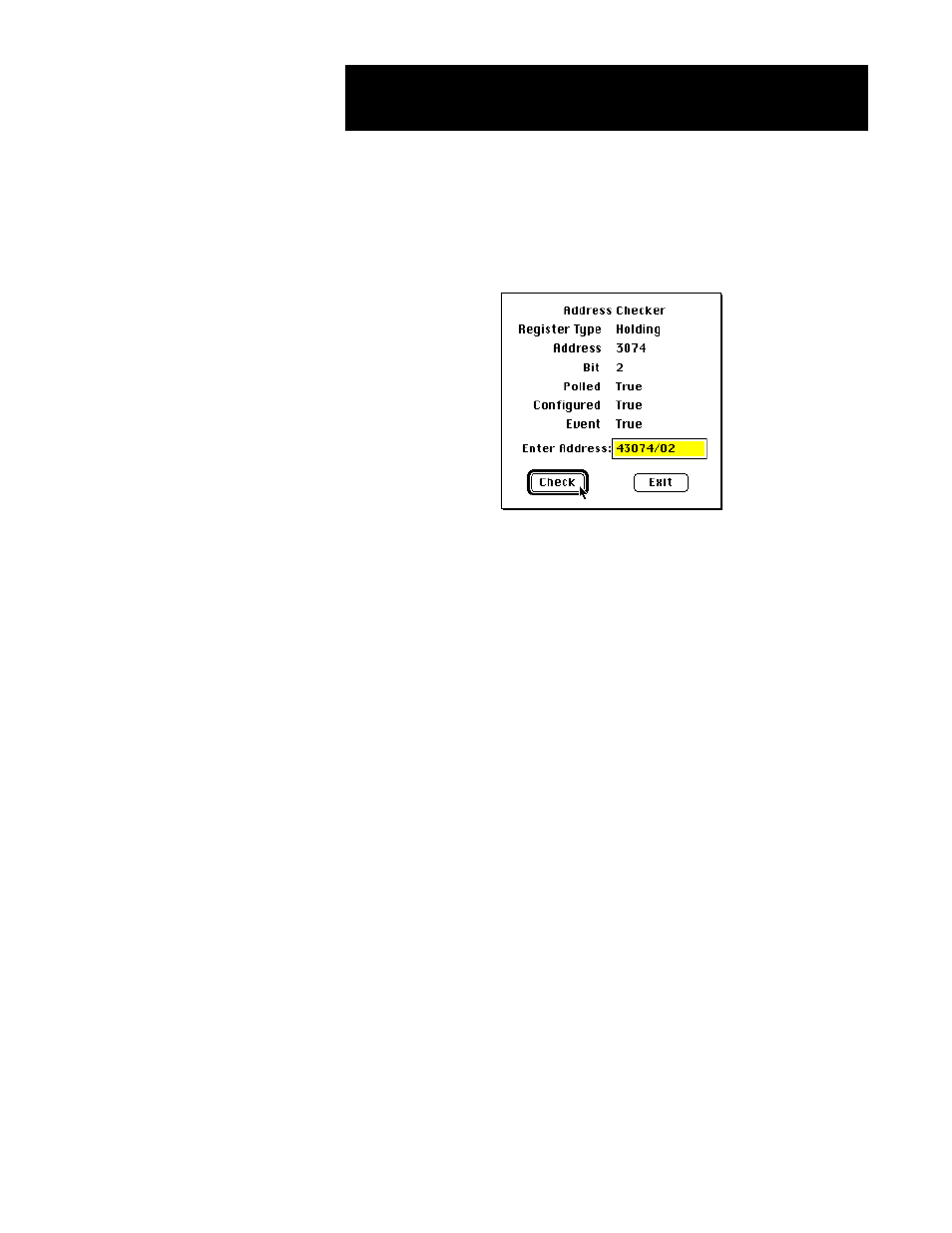

Select Address Check to check address usage for a specific Modbus
address. The operator enters an address to determine:
1. If the address is a legal address.
2. If the address is configured for reading in the datatable configura-
tion.
3. If the address has an event configured.
If the address entered is not a legal address, the various fields will
remain blank and a beep will be generated.
Register Type displays the register type.
Address displays the element.
Bit displays the bit.
Polled True indicates the datatable containing the
address is currently being polled.
Configured True indicates the address is within a config-
ured datatable.
Event True indicates that an event has been config-
ured for this address.
Select Hide Event Window to remove the event window from the
bottom of the OIS screen.
Select Show Event Window to display the event window at the bot-
tom of the OIS screen.
This screen allows you to change the current password, which pro-
tects the configuration utilities.
With password protection enabled, operators without passwords
can only access the overview. The point display screens can also be
accessed by means of an external graphics program, which uses
the “GetGWPointDisplay” XCMD. See Section 4 for more informa-
tion on XCMD’s and XFCN’s.
Misc Menu Items
A
DDRESS
C
HECKER
H
IDE
E
VENT
W
INDOW
S
HOW
E
VENT
W
INDOW
M
ODIFY
P
ASSWORD
R
ESTORE
P
ASSWORD
P
ROTECTION
