Det-Tronics Mac - w/Supercard - Manual (Page 18)

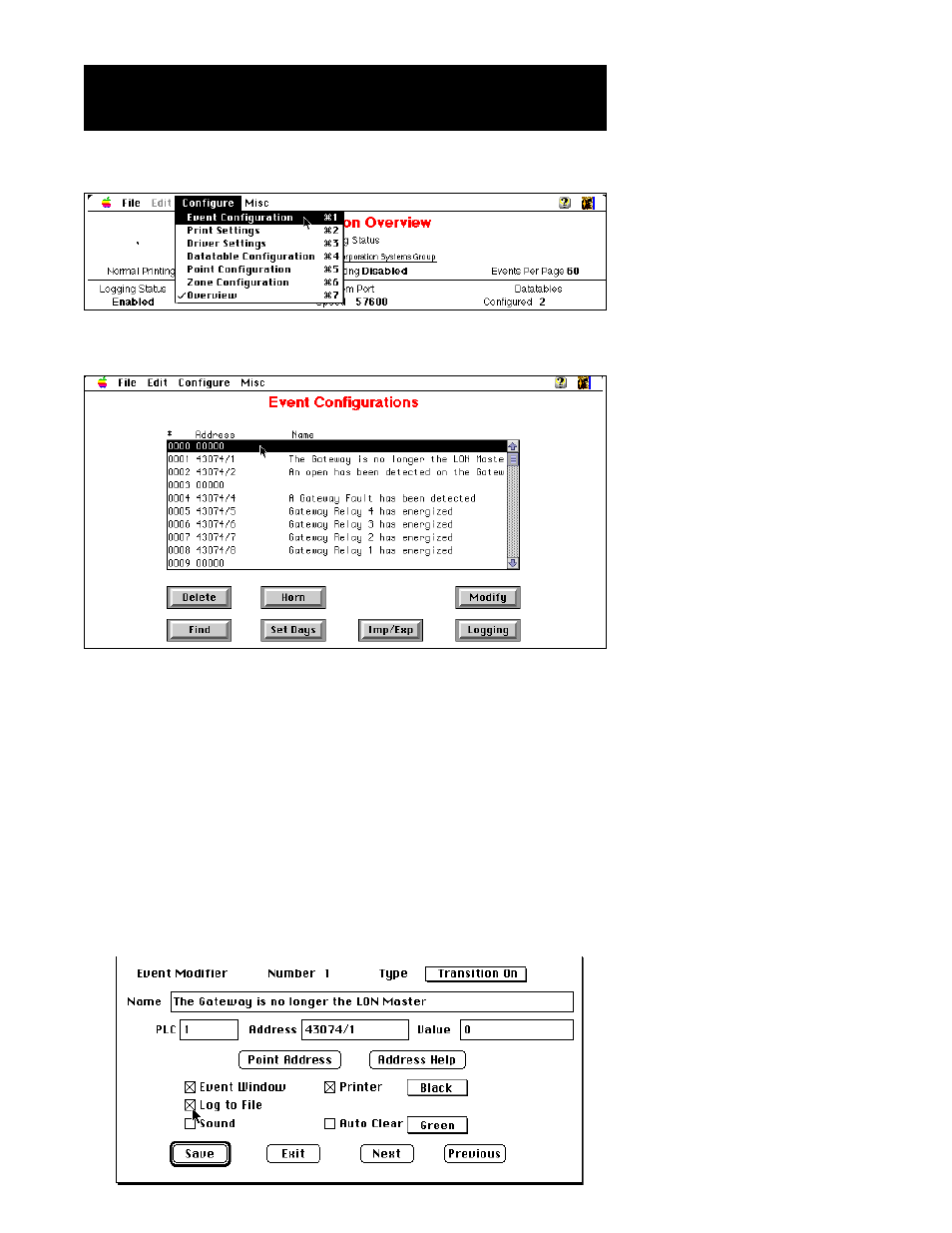

1. Select Event Configurations from the Configuration menu:
2. The Event Configurations screen is displayed:
This screen displays the following information:
# Event number (0 to 4999)
Address Modbus address of configured event
Name User-defined event name, up to 48 characters
3. Select an event to modify by either double-clicking on the event num-
ber or clicking once on the event and select the Modify button.
4. The Event Modifier dialog box will appear:
As events are configured, Save must be selected before selecting
Exit, Next or Previous. If save isn’t selected first, event configuration
will be lost.
Event Configuration (EagleVision) ( Á1)
2.5
95-8434
A1764
A1760
A1765
