5.1 95-8599 3
Non-Interfering Modules
• EQ2400NE – Network Extender
• EQ2400PLR – Physical Layer Repeater
• EQ3LTM LON Termination Module (Redundant
Controllers Only)
• 008981-001 Controller to Controller High Speed Serial
Cable (Redundant Controllers Only)
• EQPSL Network Cables – Refer to cable specification
information in the EQP system manual (form 95-8533).
• EQ3700DCIO – Discrete Input/Output Module
• EQ3720RM – Relay Module
• EQ3750 – Addressable Smoke and Heat Module
• X2200UV – Ultraviolet Flame Detector
• X5200UVIR – Ultraviolet/Infrared Flame Detector
• X9800IR – Infrared Flame Detector
• EQ2200UV – Ultraviolet Flame Detector
• EQ2200UVHT – High Temperature Ultraviolet Flame
Detector
• EQ2200UVIR – Ultraviolet/Infrared Flame Detector
• EQ2200DCU – Digital Communication Unit
• EQ2200DCUEX – Discrete Control Unit with Catalytic
Gas Sensor
• EQ2200IDC – Initiating Device Circuit
• EQ2200IDCSC – Initiating Device Circuit Short Circuit
• EQ2500ARM – Agent Release Module
• EQ2500SAM – Signal Audible Module
• EQ2100PSM – Power Supply Monitor
• EQ2220GFM – Ground Fault Monitor
• 008056-001 – HART Interface Module
• OPECL – Open Path Eclipse Gas Detector
• FlexVu UD10 Universal Display Module
Configuration Software
• Det-Tronics Safety System Software (S 3 )
Links to 3rd-Party Control
System or PLC Interface to ControlNet and Modbus
Multispectrum IR 2.
Hydrogen Flame Detector
Single Frequency IR 3.
Hydrocarbon Flame Detector
UV/IR Hydrocarbon Flame Detector 4.
UV Flame Detector 5.
Toxic Gas Detector with Display 6.
7. H
2
S Gas Sensor with Display
Hydrocarbon Combustible 8.
Gas Detector with Display
Combustible Gas Open Path Detector 9.
Hydrocarbon Combustible 10.
Gas Detector
Combustible Gas Detector 11.
Discrete Inputs and Outputs Module 12.
Single-Fire-Hazard Supression Module 13.
Operator Station 15.
and Software
Redundant Safety System Controllers 16.
Analog (4-20 mA) Input Module 17.
Relay Output Module 18.
Signal Audible Module 19.
Explosion-Proof 20.
Camera
Surveillance Digital Video 21.
Recorder and Remote Station
Local Operating Network/ 14.
Signaling Line Circuit
Multispectrum IR 1.
Hydrocarbon Flame Detector
Flame Detector with 22.
Explosion-Proof
Camera

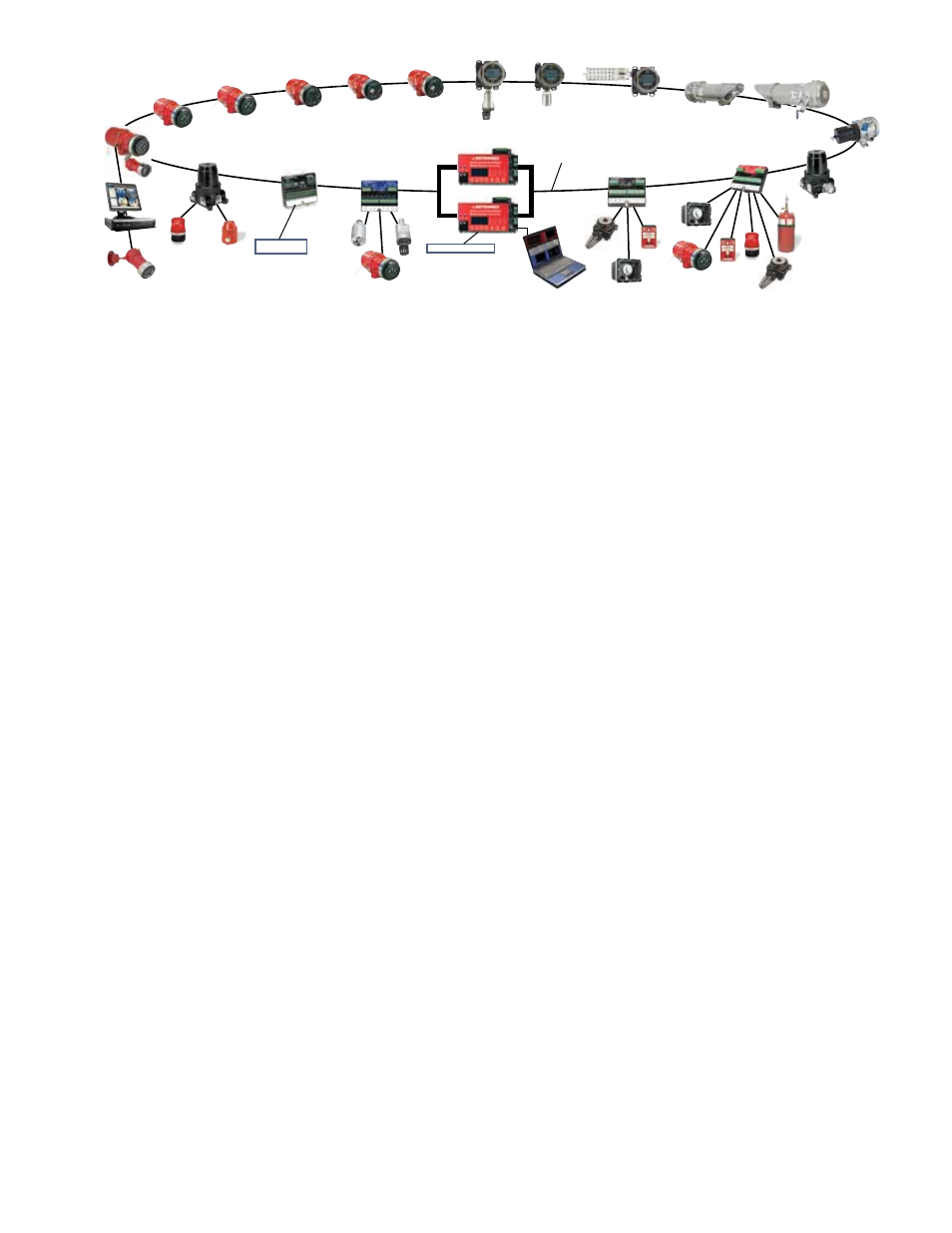

Figure 1—Components of a Det-Tronics EQP System
