11

95-8556

10.1

mODUlE mOUNTINg RECOmmENDaTIONS
OPECL modules must be affixed to a solid, non-vibrating

structure capable of supporting a minimum of 100 lbs (46

kg), located within the system’s rated separation distance.

A building wall, a heavy steel I-beam, or nearly any type

of masonry typically provides the most rigid mounting

surface available. However, avoid the use of wood

structures or supports if the possibility of warping exists.

When using a vertical post, the post must be absolutely

stable and without vibration. Square stock pole is

recommended. Mounting height should not exceed 3

meters.

The post can be set into the ground or attached to a

secure surface. If a post is set into the ground, the

portion below grade should be set in concrete at least 1

meter deep.

Important

In all cases, consider whether additional bracing
or support is needed to ensure the structural
integrity of the module installation. See Figure
4. Remember that accurate module alignment is
essential for proper performance of an open path
gas detection system, and

even a small amount

of movement can have a detrimental effect on
alignment
. This is especially true for installations
with significant module separation distances.

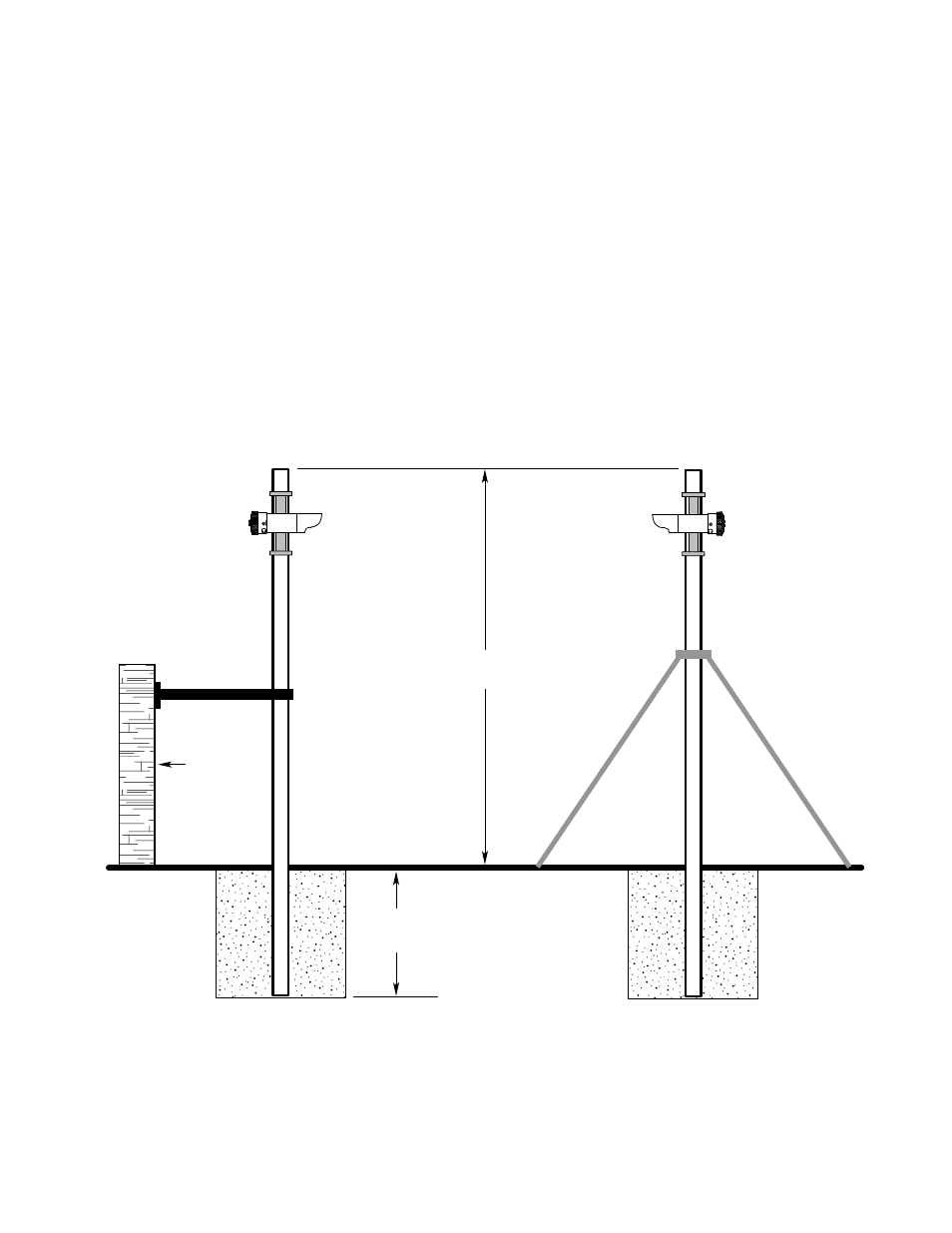

3 METERS

MAXIMUM HEIGHT

1 METER

OR BELOW

FROST LINE

NOTE:

INSTALLATIONS NEAR MAXIMUM HEIGHT TYPICALLY REQUIRE

BRACING TO ENSURE NO MOVEMENT OF THE OPECL DETECTOR.

A2501

IMMOVABLE

STRUCTURE

Figure 4—Example of Bracing Added to Vertical Mounting Poles for Increased Robustness of OPECL Installation
