MVX High Performance Thickness Gauge
CHAPTER TWELVE
USING THE FLAW MODE FEATURE
12.1 Introduction to Flaw Mode
The Flaw Mode feature was added to the MVX to provide inspectors with a basic
prove-up flaw detection mode using an angle beam transducer. This mode enables
inspectors to locate porosity, defects, inclusions, and cracks in a variety of test
materials. Angle beam transducers, are transducers attached to a delay line wedge
at specific angles. Some of the more common angles are 45°, 60°, and 70°. The
sound wave is introduced into the test material at a specific angle, and converted
from a longitudinal wave into a shear wave. The introduction at specific angles
enables inspectors to steer the sound wave in a specific direction according to the
position and location of specific types of defects.

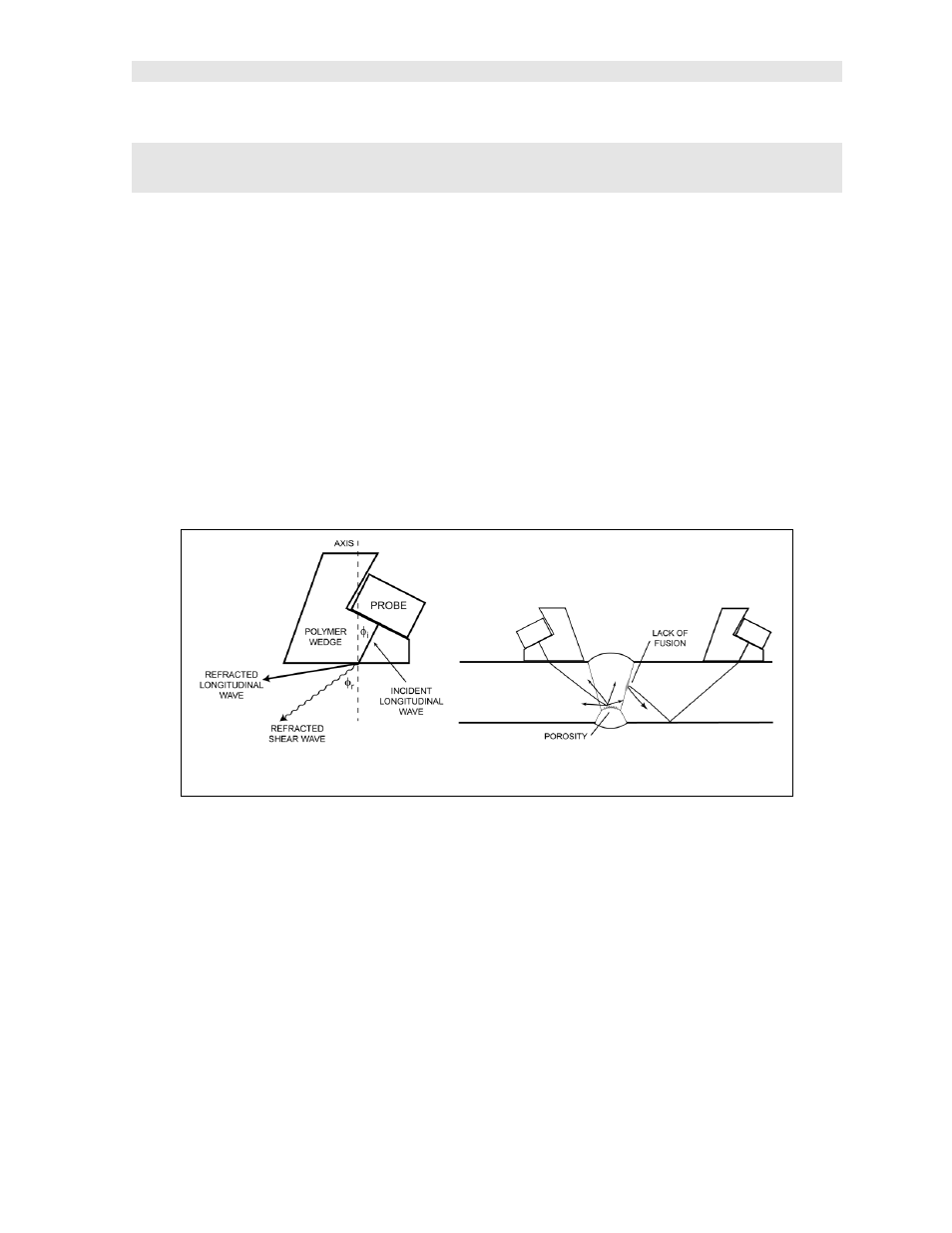

Angle Beam Transducer Weld Inspection
