User manual Version 1.3
ABLELink
®
Ethernet Serial Server SE5002
Copyright © 2006 Atop Technologies, Inc.
All rights reserved. Designed in Taiwan.
-
26
-

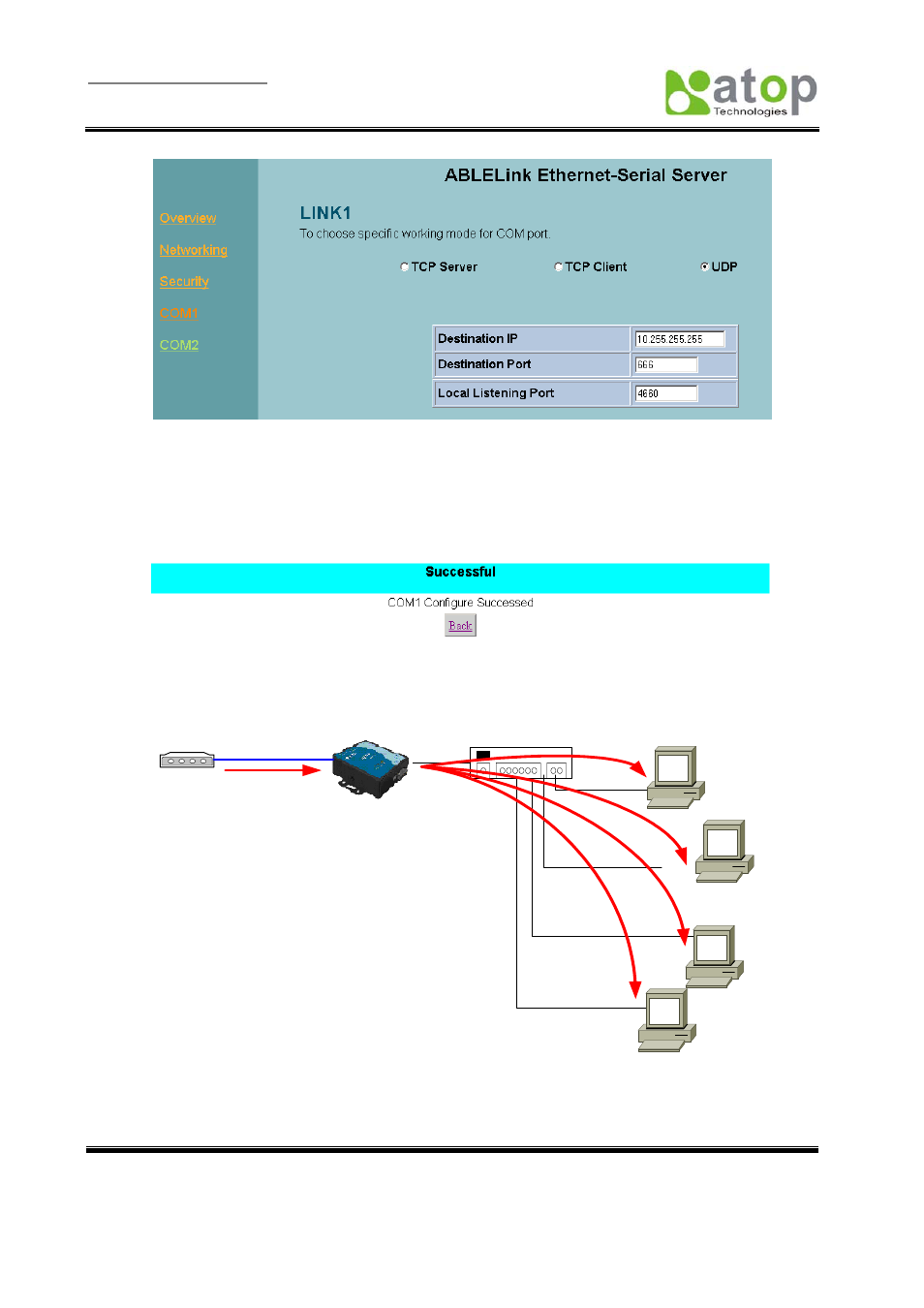

Fig. 29. Com 1 setup –UDP mode
Î On “destination IP” enter 10.0.255.255 “
Î On “destination port “ enter 666”.
Î On “Local port “ enter 4660”.
Î Click on “Save Configuration” to save the changes.
Note：If the update is successful, the following screen shall appear (Fig. 30)
Fig. 30. Configuration successfully updated
HUB
TCP/IP Network
Host Computer #1
IP: 192.168.1.3
Listening Port 666
Host Computer#2
IP: 192.168.1.100
Listening Port 666
Host Computer #3
IP: 192.168.1.200
Listening Port 666
Host Computer #4
IP: 192.168.1.254
Listening Port 666
Serial Device 1
Serial Line
SE5002
IP 192.168.1.1
Destination IP 192.168.1.255
Destination Port 666
Fig. 31. Data Transmission in a UDP Master(Client) Mode
