5. File name: once the map has been correctly created, it is possible to save
it by choosing its “file name” and clicking the OK pushbutton.
6. Rotation pushbuttons: by using these buttons it is possible to right
(Clockwise) or left (Counter Clockwise) rotate the circuit map of a 5 or 30
degrees angle.
7. Modify parts pushbuttons: these four buttons will allow the user to modify
the track map just created. In particular it is possible to
a. Divide a split in two separate splits;
b. Remove an intermediate split;
c. Change a circuit part from Straight (green line) to Corner (blue /

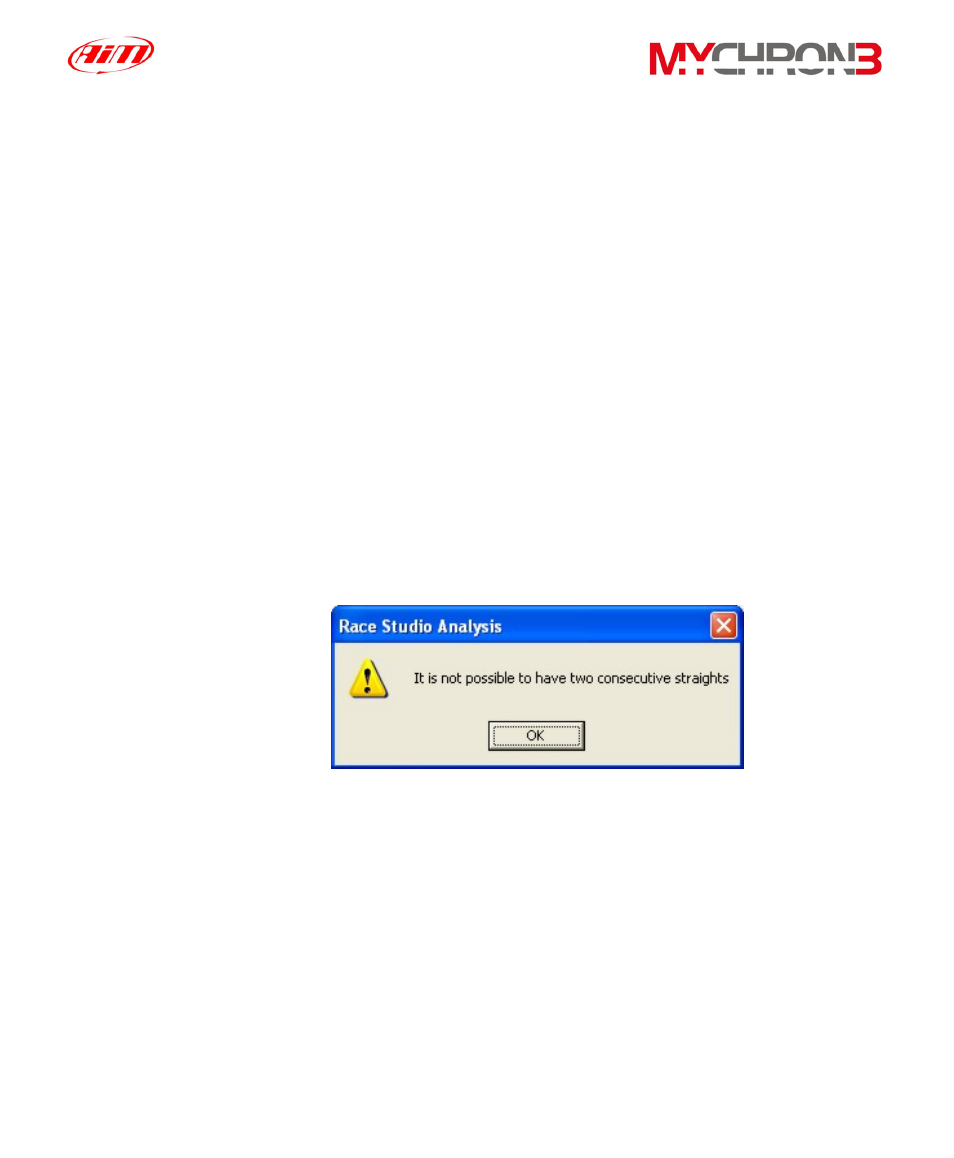

red lines) or vice versa. It is reminded that it is not possible to
have two consecutive straights but each straight has to be kept
separate from another one by one curve at least.
d. Mirror the track map.
Once the map has been created and saved, it is possible to recall it from the “Map
Manager” dialog box (shortcut “SHIFT+F2”) by double clicking on the desired one.
