The alarm led and the gear display

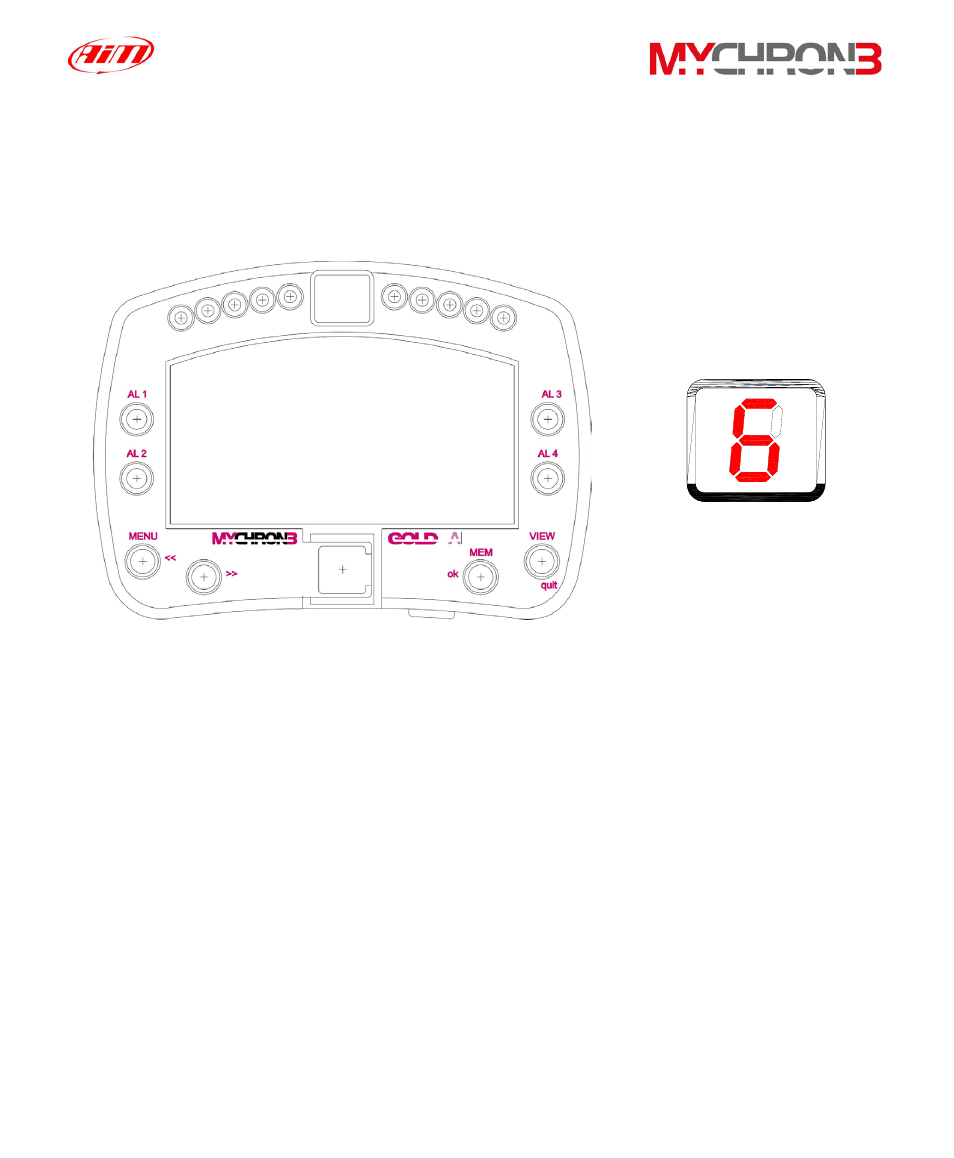

In the following picture it is reported a drawing of MyChron 3 Gold Car display
unit.
• The alarm led are placed on the left and right of the main display: on the
left there are the led 1 and 2 and, on the right, there are the led 3 and 4.
The four led are red colored.
• The RPM led are placed in the display unit upper part: this fully
configurable led turn on two-by-two, advising the driver to shift gear. The
4 external led (2 on the left and 2 on the right) are green colored, the 2
middle ones are orange colored and the 4 remaining ones are red
colored.
• The Gear display is placed in the middle of the RPM led. This digital
display shows the current gear number; the instrument is able to display
up to 9 gears.
