Installing the H
2
O thermocouple (thermoresistance)
The H
2
O thermocouple and the thermoresistance can be installed in the inline
water fitting (sold separately).

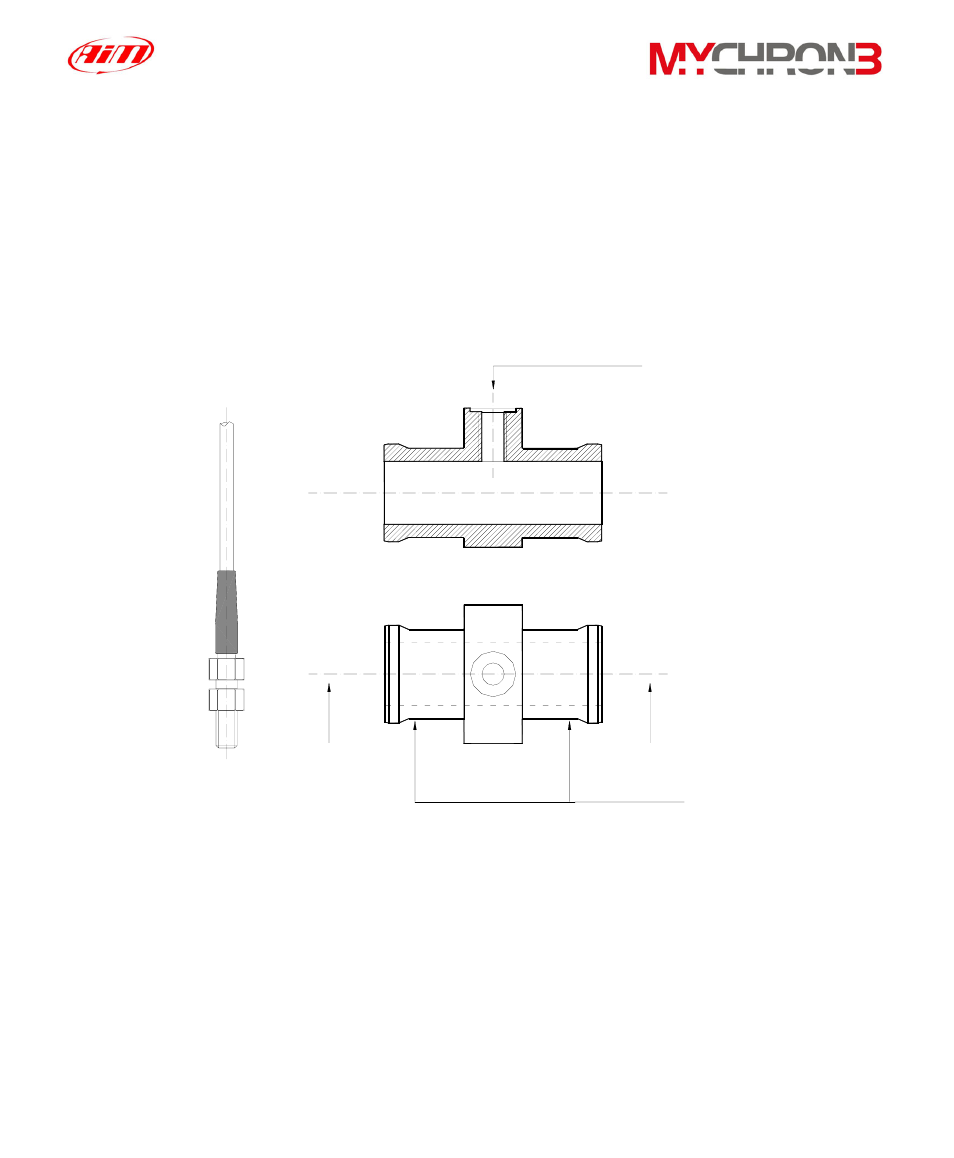

In the following drawing it is represented how to correctly install the water
thermocouple (thermoresistance) for the M5 type.
SEZ A - A
Water thermocouple
A A
The water
thermocouple
must be
placed here
Junction
must be
hanged here
with two
wiring wraps
Installing the EGT thermocouple
The Exhaust Gas Thermocouple (EGT) should be positioned inside the exhaust
header pipe at a distance of 150 mm (5.9 inches) from the exhaust port.
