68 XRT Work Platform
L
ABELS
/ A
UTOCOLLANTS
/ S
CHILDER
/ E
TIQUETAS
, XRT33
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL
Upper Controller Commandes de la plate-forme Obere Steuerung Controlador superior
Power Module Side Côté module d’entraînement Seite Energieversorgung Lateral módulo de alimentación
Control Module Side Côté module de commande Seite Steuermodul Lateral módulo de control
Front Avant Vorn Delantero
Rear Arrière Hinten Posterior
PART
NUMBER
LABEL
NUMÉRO DE
RÉFÉRENCE
AUTOCOLLANT TEILNUMMER SCHILD
NÚMERO
DE PIEZA
ETIQUETA
1 010076-001 OPERATING INSTRUCTIONS 010076-301 INSTRUCTIONS D’UTILISATION 064913-000 BEDIENHINWEISE 010076-401
INSTRUCCIONES DE
FUNCIONAMIENTO
2 100339-099
SAFETY TAPE,
YELLOW/BLACK
100339-099
RUBAN DE SÉCURITÉ
JAUNE ET NOIR
100339-099 WARNBAND, GELB/SCHWARZ 100339-099
CINTA DE SEGURIDAD,
AMARILLA/NEGRA
3 067822-001 ATTENTION GLOW PLUGS 067822-301
ATTENTION, BOUGIES
INCANDESCENTES
067822-211 VORSICHT GLÜHKERZEN 067822-401
ATENCIÓN BUJÍAS
INCANDESCENTES
4 067882-000 GLOW PLUGS 067882-300 BOUGIES 067822-200 GLÜHKERZEN 067882-400 BUJÍAS INCANDESCENTES
5 067642-007 CONTROLLER 067642-307 COMMANDES 067642-207 STEUERUNG 067642-407 CONTROLADOR
6 064444-000 USA 064444-000 ÉTATS-UNIS 064444-000 USA 064444-000 EE.UU.
7 066568-000
WARNING
CRUSHING HAZARD
066568-300
ATTENTION, RISQUE
D’ÉCRASEMENT
064915-000 WARNUNG QUETSCHGEFAHR 066568-400
ADVERTENCIA PELIGRO DE
APLASTAMIENTO
8 061683-013 UPRIGHT 061683-013 UPRIGHT 061683-013 UPRIGHT 061683-013 UPRIGHT
9 066552-000 WARNING EXPLOSIVE GAS 066552-300 ATTENTION, GAZ EXPLOSIF 064930-000 WARNUNG EXPLOSIVES GAS 066552-400
ADVERTENCIA
GAS EXPLOSIVO
10 066557-018
WARNING MAX LOAD
(455 kg)
066557-317
AVERTISSEMENT,
CHARGE MAX. (455 kg)
064910-008
WARNUNG MAX LAST
(455 kg)
066557-417
ADVERTENCIA CARGA MÁX.
(455 kg)
11 061684-016 X-SERIES 061684-016 X-SÉRIES 061684-016 X-SERIE 061684-016 SERIE-X
12 061683-006 UPRIGHT 061683-006 UPRIGHT 061683-006 UPRIGHT 061683-006 UPRIGHT
13 060197-000 HYDRAULIC FLUID 060197-300 HUILE HYDRAULIQUE 064917-000 HYDRAULIKFLÜSSIGKEIT 060197-400 FLUIDO HIDRÁULICO
14 027898-000 DIESEL FUEL 027898-300 GAZOLE 064914-000 KRAFTSTOFF (DIESEL) 027898-400 COMBUSTIBLE DIESEL
15 066957-001 XRT 33 066957-001 XRT 33 066957-001 XRT 33 066957-001 XRT 33
16 061683-005 UPRIGHT 061683-005 UPRIGHT 061683-005 UPRIGHT 061683-005 UPRIGHT
17 061205-003 NAME PLATE 061205-303 PLAQUE SIGNALÉTIQUE 061205-203 TYPENSCHILD 061205-402 PLACA IDENTIFICATIVA
18 066561-002 MAINTENANCE BRACE 066561-302
BARRE DE SÉCURITÉ
D’ENTRETIEN
066561-202 WARTUNGSSCHILD 066561-402
SOPORTE DE
MANTENIMIENTO
19 – – – – 030768-002 G/S – –
20 067481-001 LOWER CONTROL 067481-301 COMMANDES AU SOL 067481-201 ABSENKSTEUERUNG 067481-401 CONTROL DE DESCENSO
22 066561-003
CAUTION STRUCTURAL
DAMAGE
066561-303
ATTENTION, DOMMAGES
STRUCTURELS
066561-203
VORSICHT BESCHÄDIGUNG
DER MASCHINE
066561-403
ATENCIÓN DAÑO
ESTRUCTURAL
23 066551-010 DANGER TIP OVER HAZARD 066551-310
DANGER, RISQUE DE
BASCULEMENT
066551-200 KIPPGEFAHR 066551-410 PELIGRO RIESGO DE VUELCO
24 067195-000 DANGER HAZARDS 067195-300 DANGERS DE CHANTIER 067195-200 GEFAHREN 066550-400 PELIGRO DE MUERTE
25 067195-001 INSTRUCTIONS 067195-301 INSTRUCTIONS 064935-000 HINWEISE 067195-401 INSTRUCCIONES
26 063423-000 BRAKE RELEASE 063423-300 DESSERRAGE DE FREIN 063423-200 BREMSENFREIGABE 063423-400 LIBERACIÓN DE FRENO
27 066556-000
CAUTION DESCENDING
PLATFORM
066556-300
ATTENTION, ABAISSEMENT
DE LA PLATE-FORME
066556-200
VORSICHT ARBEITSBÜHNE
SENKT SICH
066556-400
CUIDADO AL BAJAR LA
PLATAFORMA
28 061515-000 LIFT HERE 061515-300 SOULEVER ICI 064937-000 HIER ANHEBEN 061515-400 ELEVAR POR AQUÍ
29 066554-000
CAUTION
READ INSTRUCTIONS
066554-300
ATTENTION, LIRE
LES INSTRUCTIONS
066554-200
VORSICHT ANWEISUNGEN
BEACHTEN
066554-400
ATENCIÓN LEER
INSTRUCCIONES
30 067196-000
EMERGENCY
LOWERING VALVE
067196-300
VANNE D’ABAISSEMENT
D’URGENCE
067196-200 NOTSENKVENTIL 067196-400
VÁLVULA DE BAJADA
DE EMERGENCIA
31 067197-000
EMERGENCY LOWERING
INSTRUCTIONS
067197-300
INSTRUCTIONS
D’ABAISSEMENT D’URGENCE
067197-200
HINWEISE ZUR
NOTABSENKUNG
067197-400
INSTRUCCIONES DE
DESCENSO DE EMERGENCIA

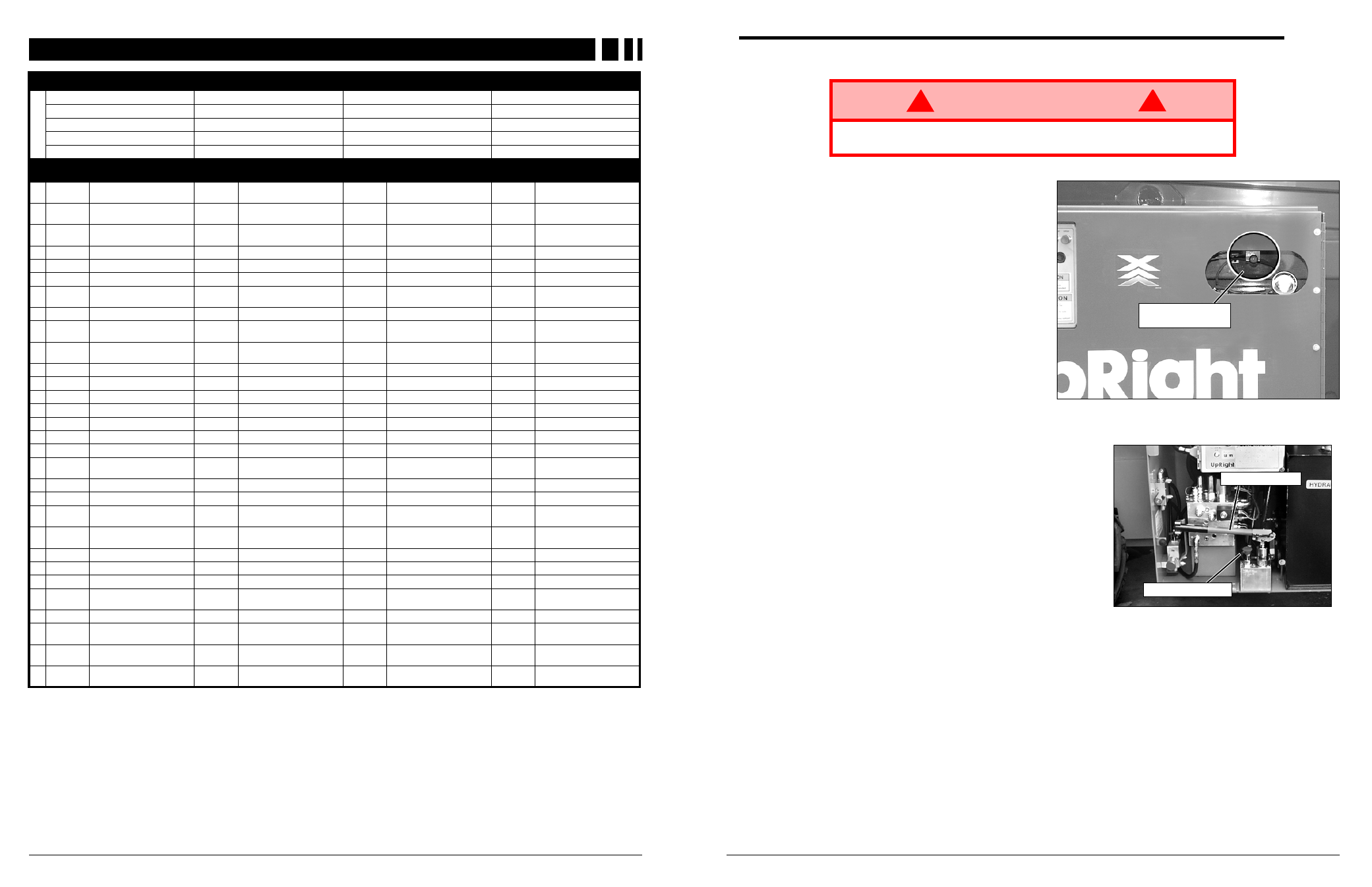

9 XRT Work Platform
E MERGENCY L OWERING
XRT27
The Emergency Lowering Valve is located in the Con-
trol Module, above the fuel tank. It is accessible
through the fuel filler opening on the Control Module
cover.
1. Open the Emergency Lowering Valve by pulling
and holding the knob.
2. To close, release the knob. The platform will not
elevate if the Emergency Lowering Valve is
open.
XRT33
The Emergency Lowering Valve is located in the Control Module,
next to the hydraulic oil tank.
1. Open the Control Module cover.
2. Hold the control valve in the closed position, then pump up
pressure to release holding valves on the cylinders.
3. Once the platform is fully lowered, release the control valve
to close the holding valves.
4. Close the Control Module cover.
W A R N I N G ! !
If the platform should fail to lower, NEVER climb down the elevating
assembly.
EMERGENCY
LOWERING KNOB
Figure 5: Emergency Lowering Valve Knob, XRT27
PUMP HANDLE
CONTROL VALVE
Figure 6: Emergency Lowering Valve
Knob, XRT33
