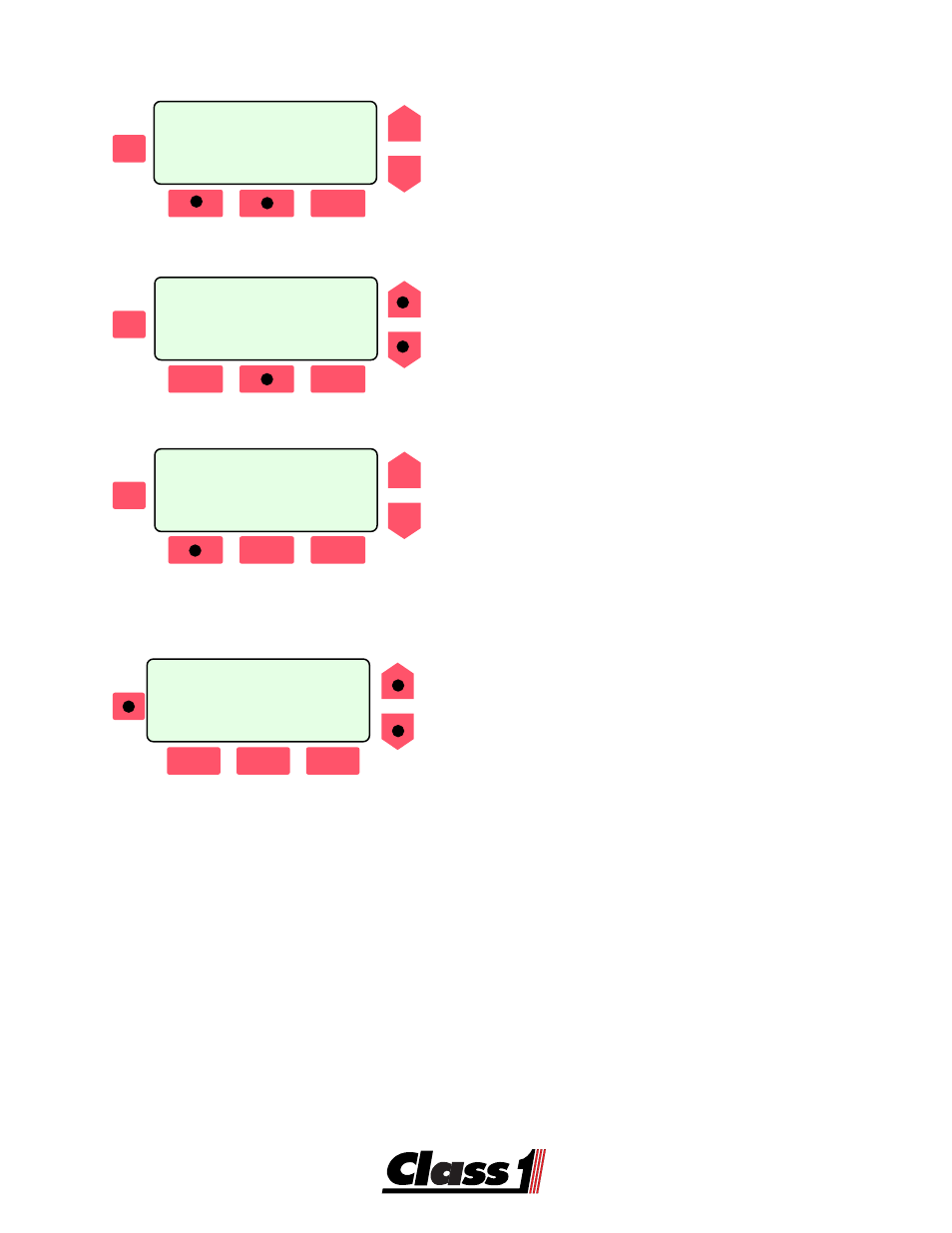

The circuit screen shows that condition 1 is
the LIGHT BAR Switch and it is located on
the power distribution module at address 0
and input #1 on that module. Scroll to the
next circuit or escape to a higher level menu.
If there are two arguments used, both of them
will show on the MPLX screen and either the
GO-1 or GO-2 switch can be accessed for
information on the arguments.
-- SYSTEM OUTPUTS --
CIR: LIGHT BAR
POWER MOD#0 OUT-01
[MNGT] [ MPLX ] [INTK]
The multiplex information screen shows the
arguments that must be true for the circuit to
operate. The scroll switches select different
circuits. [BACK] returns you to the Circuits
Menu.
SCROLL ESC
MUX: LIGHT BAR
1: Switch LIGHT BAR
[ GO-1 ] [BACK]
Pressing the [GO-1] switch takes you to the
circuit menu for that argument.
SCROLL ESC
-- SYSTEM INPUTS --
CIR: Switch LIGHT BAR
POWER MOD#0 IN-01
[MNGT] [ MPLX ] [INTK]
Display
MUX: LIGHT BAR
1: Switch LIGHT BAR
[GO-1] [ BACK ]
