18

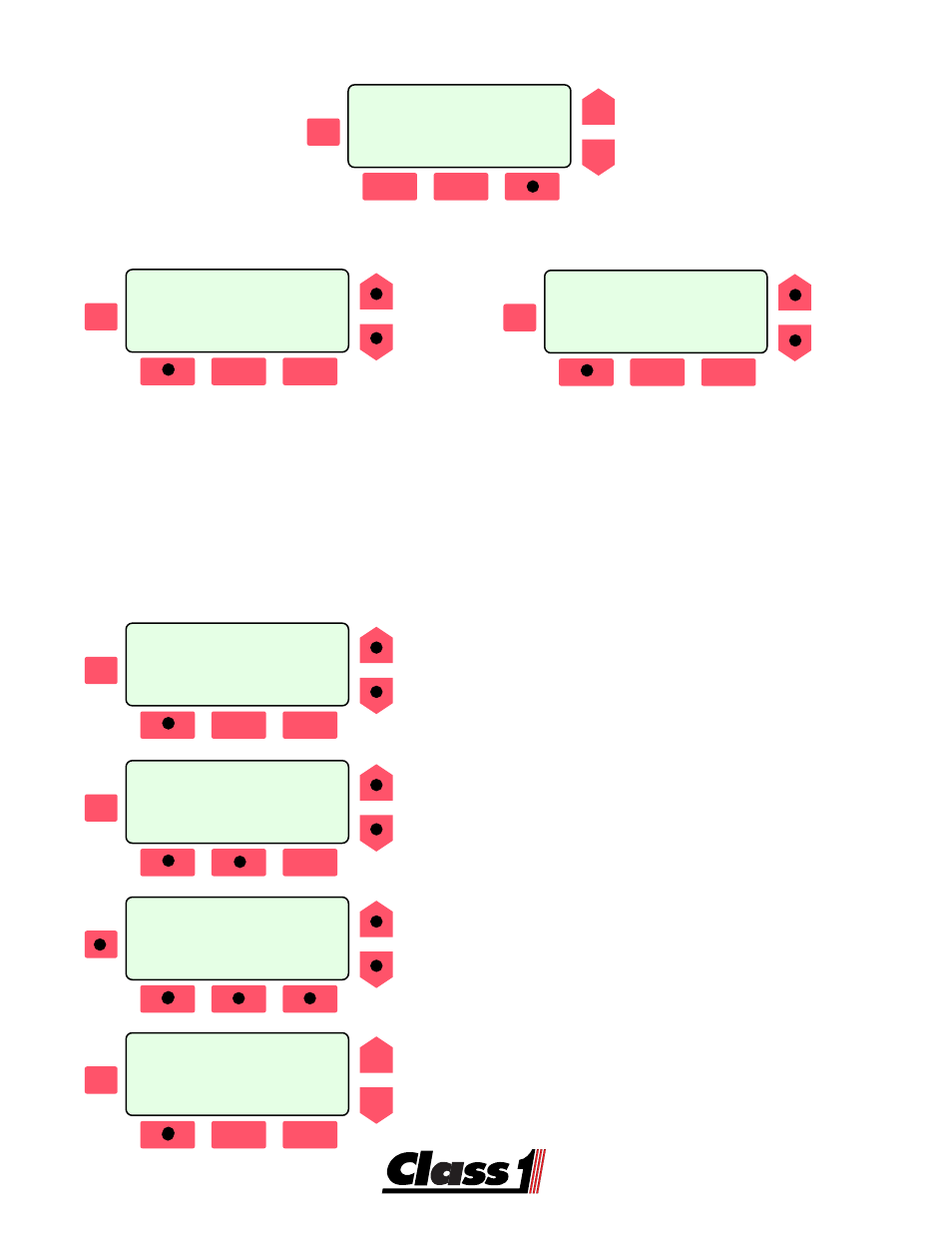

SCROLL ESC
Selecting
=x a^q^z=
presents the system database for review.
ES-KEY USER MENU
SELECT OPTION
[UTIL] [ DATA ]
MNGT Data
SCROLL ESC
-- SYSTEM OUTPUTS --
CIR: CIRCUIT NAME
MODULE TYPE ADDRPORT
[ MNGT ] [MPLX] [INTK]
SCROLL ESC
-- SYSTEM INPUTS --
CIR: CIRCUIT NAME
MODULE TYPE ADDR PORT
The scroll arrows allow you to see all of the system inputs and outputs.
The top line of the display indicates whether the circuit is an INPUT or OUTPUT.
The second line shows the Circuit Name.
The third line gives the module type, it’s address 0-15 and the port on the device that the
circuit is assigned to.
The fourth line is only active for OUTPUTS and allows the user to select one of three sub-
menus for more information on the circuit.
[ MNGT ] provides a menu detailing the circuits load management information.
[ MPLX ] provides a menu detailing the circuits multiplexing information.
[ INTK ] provides a menu detailing the circuits interlock information.
SCROLL ESC
-- SYSTEM OUTPUTS --
CIR: LIGHT BAR
POWER MOD#0 OUT-01
[ MNGT ] [MPLX] [INTK]
This screen indicates that the circuit ‘LIGHT
BAR’ is an output located on a Power Mod-
ule addressed as zero (0) and physically is
on port one (1) of that module.
SCROLL ESC
MNG:PDM 0 1
SEQUENCE:3 SHED:0
MODE:A OR B; STAGE Y
[BACK] [
HELP ]
The Management screen shows that this
output sequences on third, never sheds, will
be on in either scene (mode a) or response
mode (mode B) and is tied to the Master
Warning Switch (staged).
SCROLL ESC
-- DEFINED BY OEM --
MODE A : RESPONSE
MODE B : SCENE
STAGE : MASTER WARN
The HELP screen displays the OEM’s defi-
nition of Mode A and B as well as what the
Staged input is.
Press any key to return to the Management
Screen.
SCROLL ESC
MNG:PDM 0 1
SEQUENCE:3 SHED:0
MODE:A OR B; STAGE Y
[
BACK ] [HELP]
Pressing the BACK Switch returns you to the
‘Circuits Menu’
