14
Switch Modules
The ES-Key System uses Switch Input Modules (SIM’s) to provide switching information to
the system. Currently these are available in two basic styles and there can be up to 16 of
them in the system.

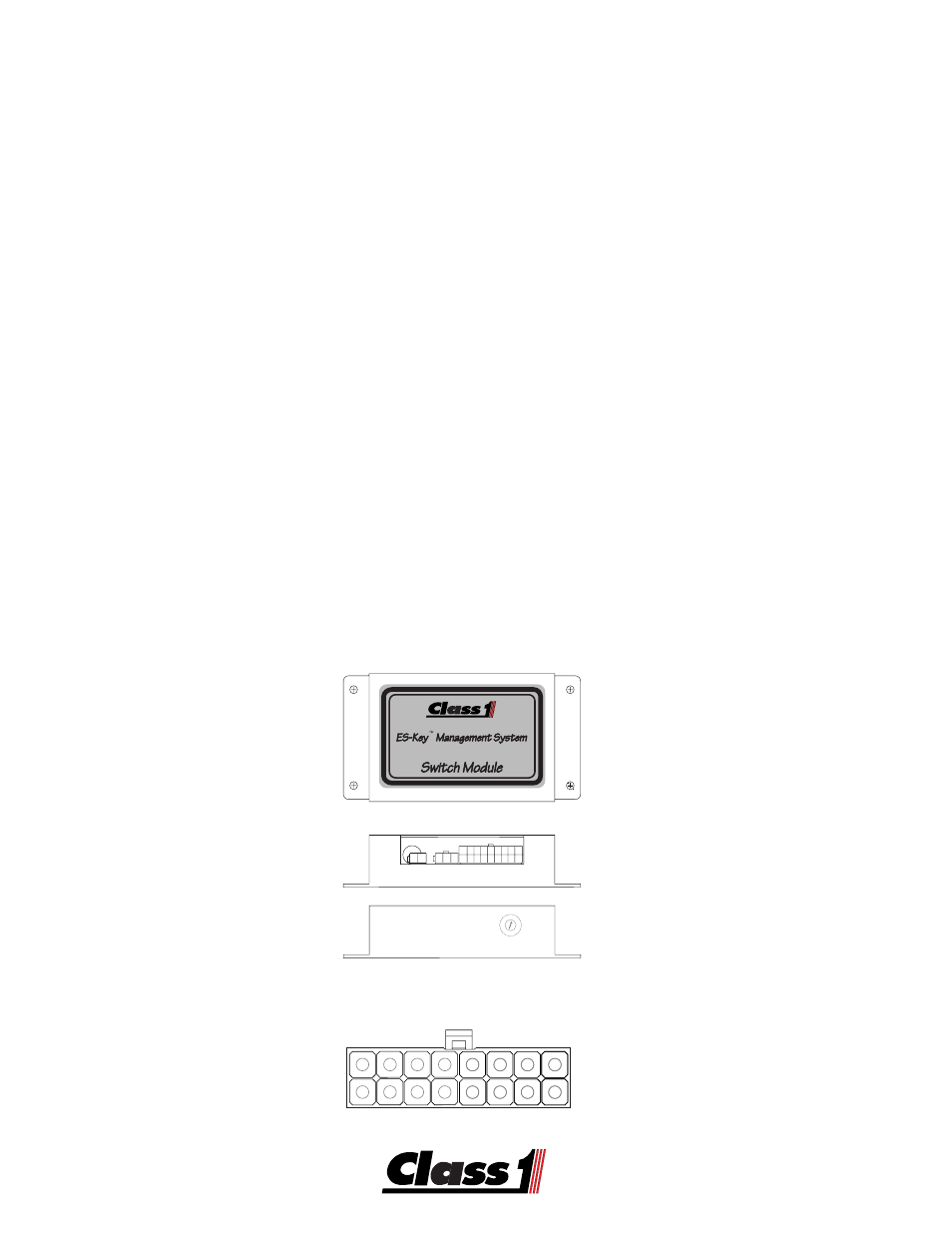

16 Positive (103372) Switch Input Module
Connector Information
Amp Mini Universal Mate-N-Lok
Power Amp 172165-1 1) Power 2) Ground
CAN Amp 172166-1 1) Can HI 2) CAN LO 3) CAN Shield
Input Amp 770579-1 1) Input 0 positive 9) Input 8 positive
2) Input 1 positive 10) Input 9 positive
3) Input 2 positive 11) Input 10 positive
4) Input 3 positive 12) Input 11 positive
5) Input 4 positive 13) Input 12 positive
6) Input 5 positive 14) Input 13 positive
7) Input 6 positive 15) Input 14 positive
8) Input 7 positive 16) Input 15 positive
Amp Socket Terminals
Tin 101535
Gold 103374
0 1
2
3 45 6
7
8 9
8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
Wire Side
