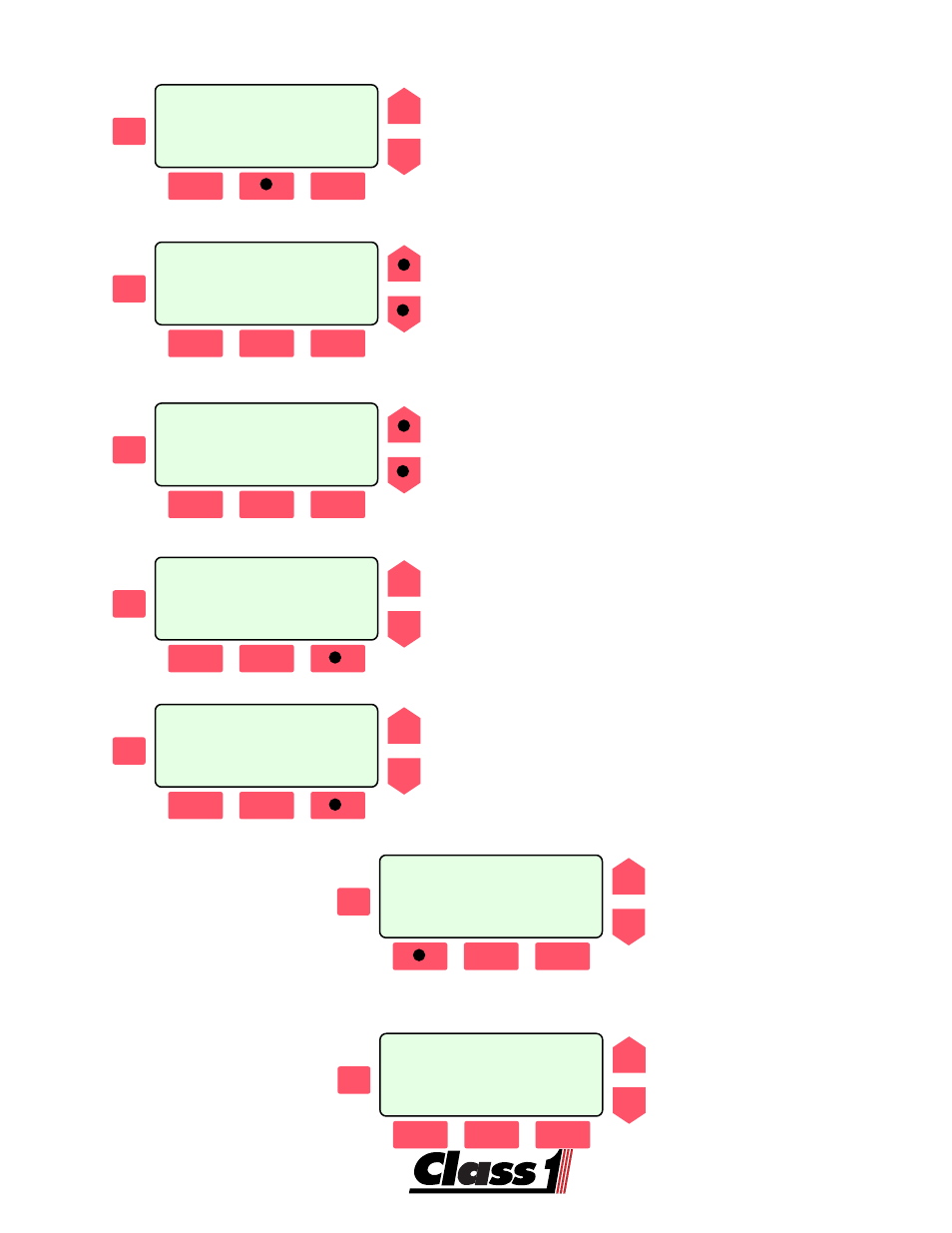

I/O-VOC Menu
SCROLL ESC
Select Network I/O,
Modules, or Vocation
[MOD] [ I/O ] [VOC]
Selecting [I/O] brings up the input and out-
put circuits page.
SCROLL ESC
CIR:LIGHT BAR
OUTPUT: OFF
Each circuit on the vehicle can be looked
at by using the up and down arrows to
scroll through the circuits.
The screen will show whether the circuit
is an INPUT or an OUTPUT and whether
it is ON or OFF.
SCROLL ESC
CIR:LIGHT BAR SWITCH
INPUT: ON
Pressing [ESC] returns you to the Select
Network I/O, Modules or Vocation menu.
SCROLL ESC
Select Network I/O,
Modules, or Vocation
[MOD] [I/O] [ VOC ]
Selecting [VOC] brings up the Interlock Sta-
tus Screen.
SCROLL ESC
CIR:PARK BRAKE
INTERLOCK STATE: OFF
[BACK] [NEXT]
Each of the interlocks on the vocation
module can be scrolled to using the
[NEXT] switch. It’s state will be shown as
either ON or OFF.
SCROLL ESC
=
CIR:OKAY TO PUMP
INTERLOCK STATE: ON
[ BACK ] [NEXT]
Pressing the [BACK] or the [ESC] switch brings you back to the Select Menu.
SCROLL ESC
Select Network I/O,
Modules, or Vocation
[MOD] [I/O] [VOC]
