INTK Data
SCROLL ESC

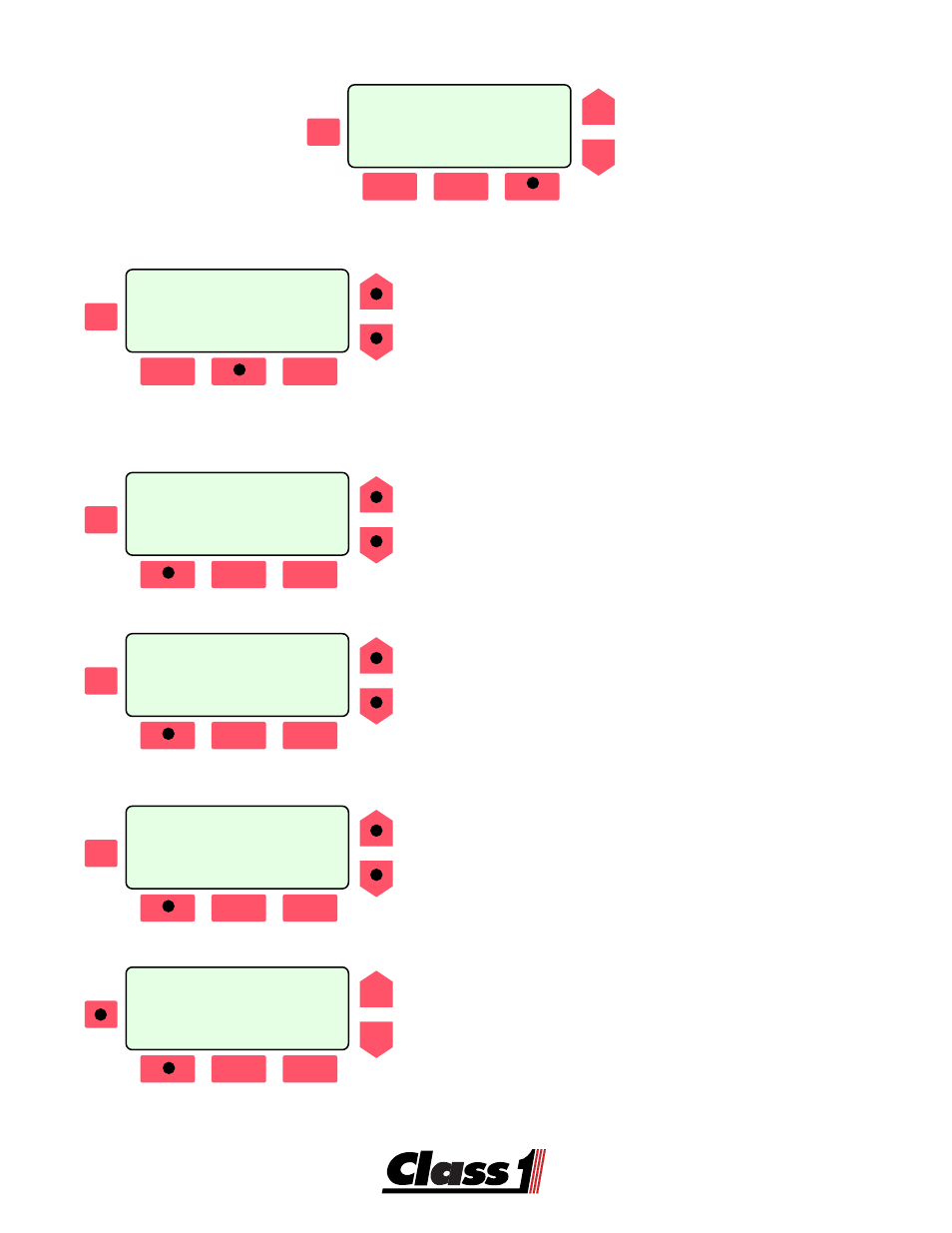

Selecting [INTK] brings up the system multiplex menu.
SCROLL ESC
INTERLOCKS [SCROLL]
CIR: LIGHT BAR
PARK BRAKE :OFF
[BACK] [ NEXT ]
Pressing [BACK] selects the Circuits Menu.
Pressing the BACK Switch returns you to the ‘Circuits Menu’
-- SYSTEM OUTPUTS --
CIR: LIGHT BAR
POWER MOD#0 OUT-01
[MNGT] [MPLX] [ INTK ]
SCROLL ESC
The interlock information screen shows the
circuit name and allows you to view each of
the interlocks and how it is related to the cir-
cuit.
Either -X-, the interlock is not associated with
the circuit or OFF or ON indicates whether
the interlock must be on or off for the circuit
to turn on.
SCROLL ESC
This indicates that the Park Brake must be
OFF for the LIGHT BAR to work.
Pressing the [NEXT] switch takes you to the
next interlock. Pressing the UP or DOWN
arrow selects the next circuit to view in the
interlock sub-menu.
INTERLOCKS [SCROLL]
CIR: LIGHT BAR
PARK BRAKE :OFF
[BACK] [ NEXT ]
INTERLOCKS [SCROLL]
1: Switch LIGHT BAR
PARK BRAKE :OFF
[ BACK ] [NEXT]
SCROLL ESC
INTERLOCKS [SCROLL]
CIR: LIGHT BAR
PUMP ENGAGED :ON
[BACK] [ NEXT ]
SCROLL ESC
INTERLOCKS [SCROLL]
CIR: LIGHT BAR
PUMP ENGAGED :-X-
[BACK] [ NEXT ]
This indicates that the pump must be en-
gaged for the LIGHT BAR to work.
This indicates that the circuit LIGHT BAR
doesn’t care if the Pump is engaged or not.
