Page 96

Publication 1734-UM011D-EN-P - May 2011
80 Adapter Web Pages

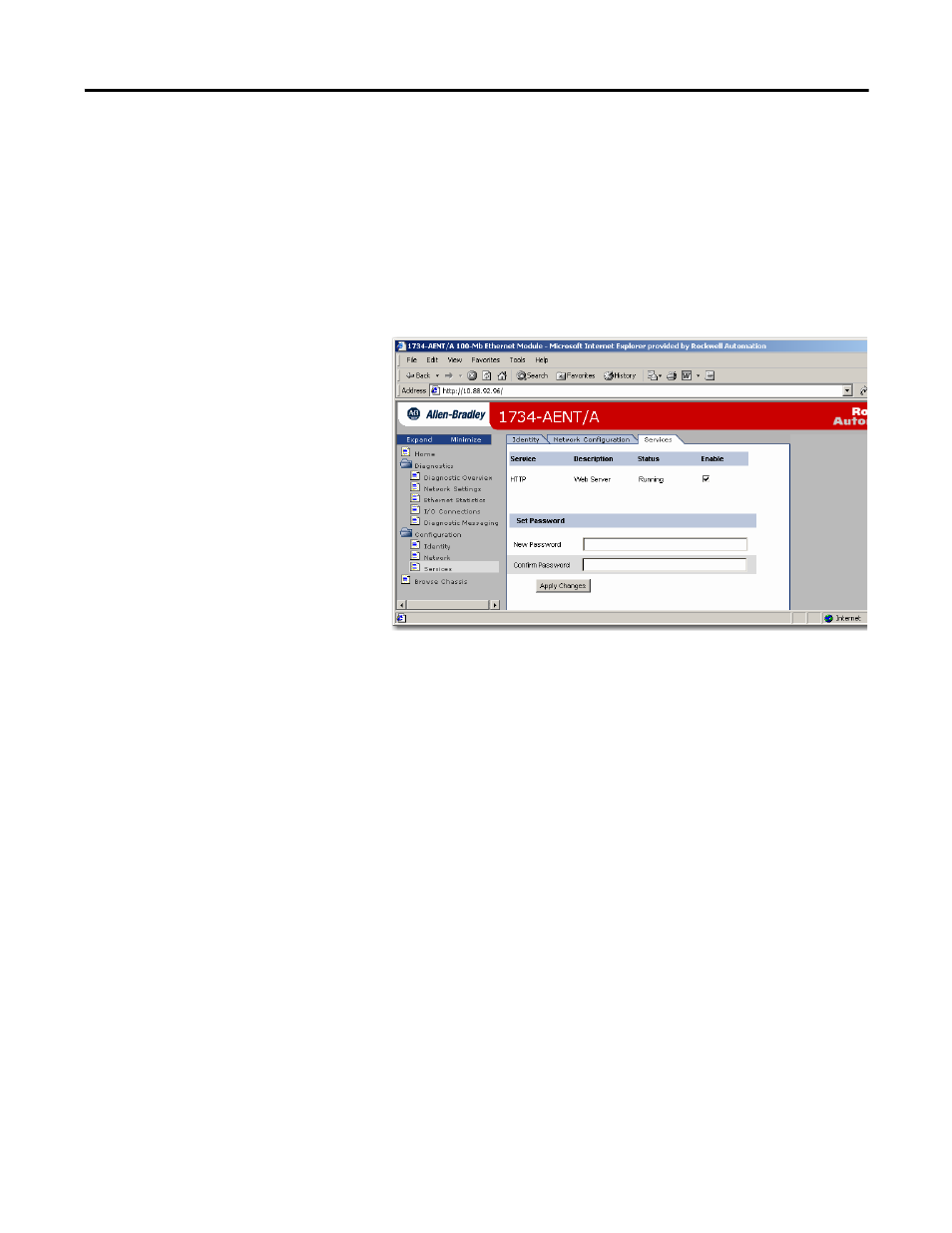

Use the Services Page
To use the Services page to change the password for the Configuration web
page or disable the Web server, complete these procedures.
1. From the Web page, click the Services tab at the top of the page or panel
on the left.
The Services tab opens.
2. From the Services tab, make these entries:
• Click in the Enable box to change whether the Web server runs after the
module is reset.
• Change the password by typing the new value for New Password and
Confirm Password, noting the following.
– The entry is case sensitive.
– The default value is the word password.
3. Click Apply Changes.
Work with the Browse
Chassis Page
Use the Browse Chassis page for the following.
• See what modules are present on the system.
• Run a query from slot 1 to slot 63.
• Display the modules found based on the query.
• Provide an easy way to see what modules the adapter is recognizing on
your system.
