Publication 1734-UM011D-EN-P - May 2011
70 Adapter Web Pages

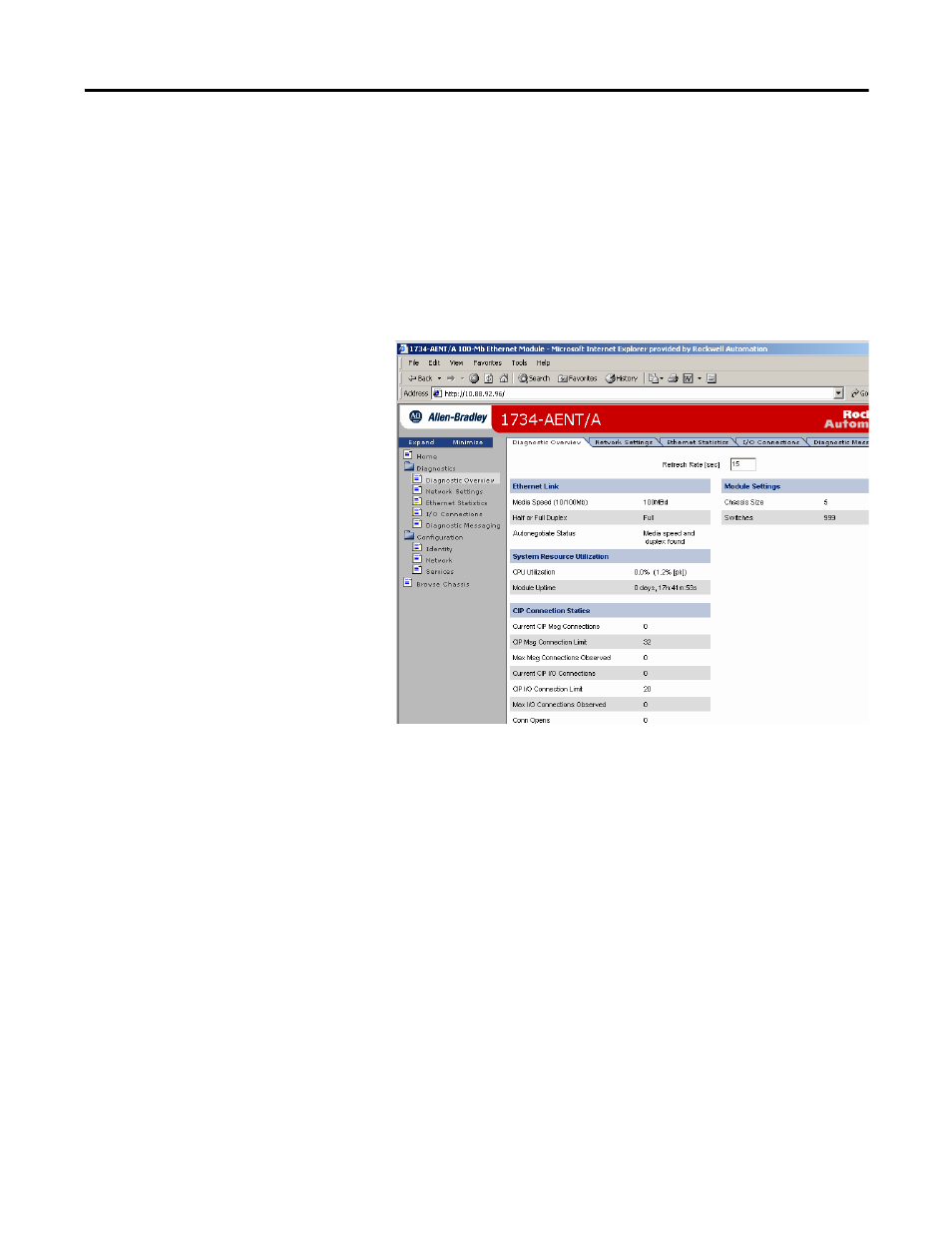

Use the Diagnostic Overview Page
To use the Diagnostic Overview page to view general diagnostics information,
follow this procedure.
1. From the Web page, click the Diagnostic Overview tab at the top of the
page or panel on the left.
The Diagnostic Overview tab opens.
2. From the Diagnostic Overview tab, view the following.
• Ethernet Link Status
– Media Speed
– Half or Full Duplex
– Autonegotiate Status
• System Resource Utilitization
– CPU Utilization
– Module Uptime
• CIP Connection Statics
– Current CIP MSG Connections
– CIP MSG Connection Limit
– Max Msg Connections Observed
– Current CIP I/O Connections
– CIP I/O Connection Limit
– Max I/O Connections Observed
– Conn Opens
