Locating the internal components
Removing the side panels and front bezel exposes all internal
components for service.
As you work inside the computer, make sure you don’t disconnect or
damage other connectors, cables, or devices.

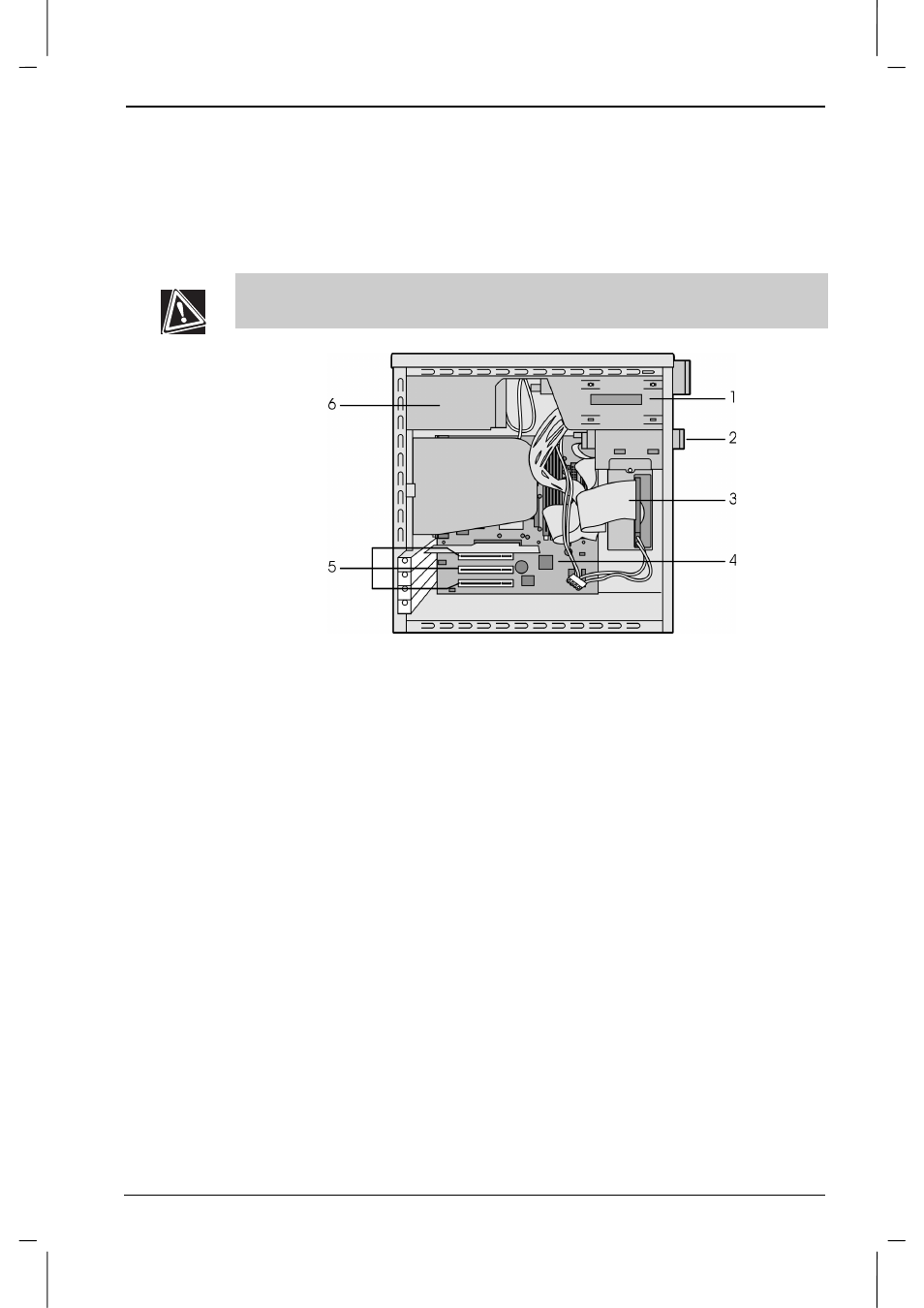

Locating the internal components
1. Front expansion bays- The expansion bays enable you to fit additional
two 5.25-inch devices and one 3.5-inch device. Depending on your
build-to-order specification, one expansion bay may contain a CD-
ROM , DVD-ROM or CD-RW/DVD-ROM drive. For more information
on adding an optional device, see Installing a new IDE device.
2. Floppy disk drive- The 3.5-inch floppy disk drive is located below the
expansion bays.
3. Internal expansion bays- You can fit up to two 3.5-inch EIDE hard disk
devices to the front of the chassis. For more information on installing a
hard disk drive, see Installing a new IDE device.
4. Motherboard- The motherboard contains several configurable and
upgradable features. For more information, see Motherboard.
5. Power supply- AC115-230V universal 50-60Hz, 250W.
6. Expansion slots- There are several expansion card slots available. For
more information on fitting an expansion card, see Installing
expansion cards.
