Adding a new device

1. Shut down the computer and unplug the power cable.
2. Remove the case panels and, if necessary, the front bezel. See

Opening the case.

3. Install a device to the expansion bay.

When you will install the drives into the internal expansion bays, carry
out the following procedures.

■

Put the shoulder screw on the part of drive where an arrow sign is
indicated.

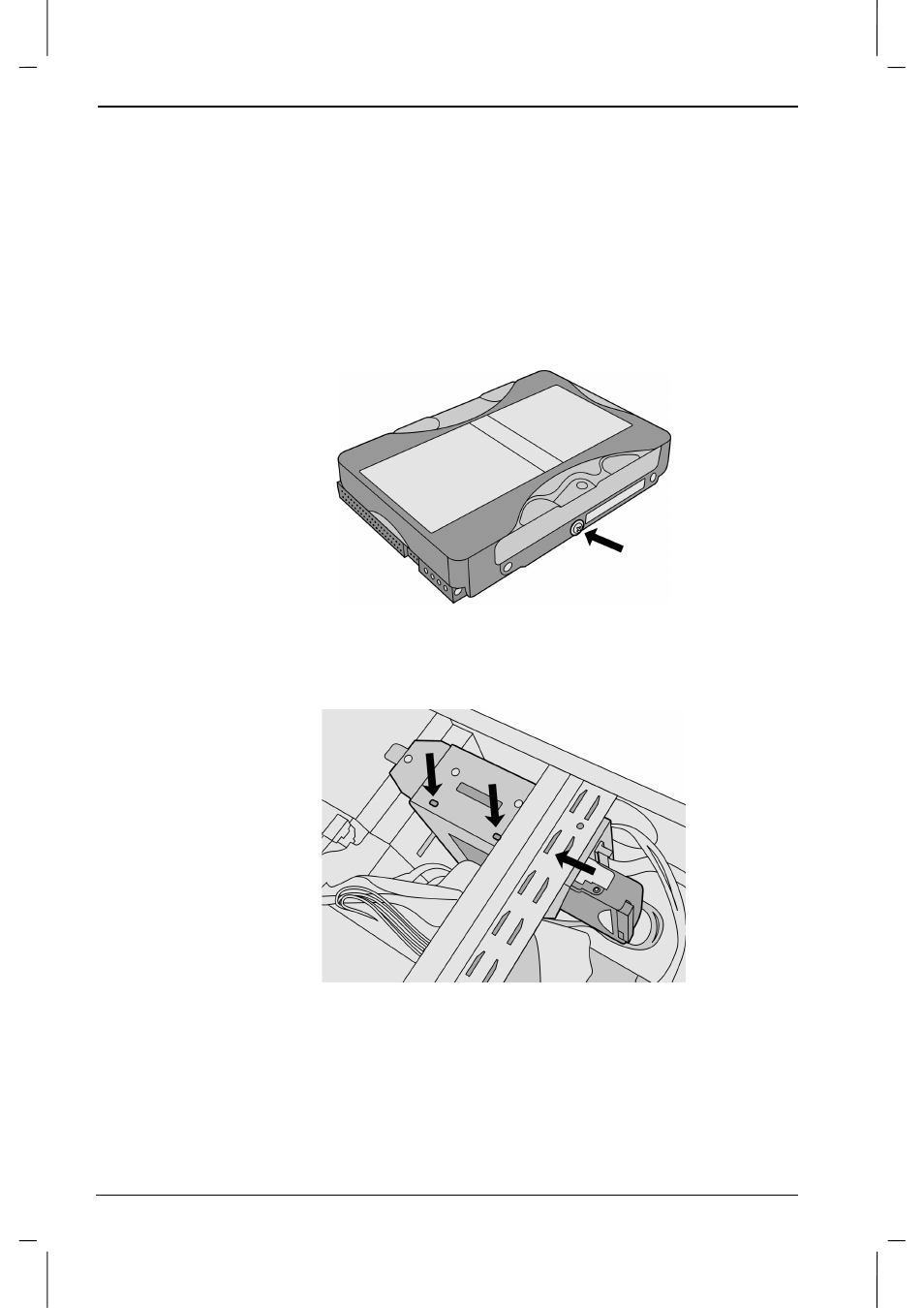

Locating the shoulder screw

■

Insert the drive into the Internal expansion bay.

■

Fix the drive with two mounting screws.

Mounting screws
