Pioneer EFX-1000 - Manual (Page 11)

English
11
AUDIO OUT
INPUT
DIGITAL
IN
DIGITAL
IN
DIGITAL OUT OUTPUT
DIGITAL OUT
L
R
L
R
L
R
L
R
DIGITAL
IN
DIGITAL
OUT
DJ Mixer DJ CD Player
Effector EFX-1000
÷ Set the IN & OUT
LEVEL switch on the
Effector to the [–10 dB]
position.
MASTER OUT
MASTER OUT
OUTPUT
INPUT
INPUT
DIGITAL OUT
L
R
L
R
L
R
L
R
DJ Mixer Stereo Amplifier
÷ Set the IN & OUT LEVEL switch
on the Effector to the [+4 dB]
position.
Effector EFX-1000
BEFORE USE (CONNECTIONS)

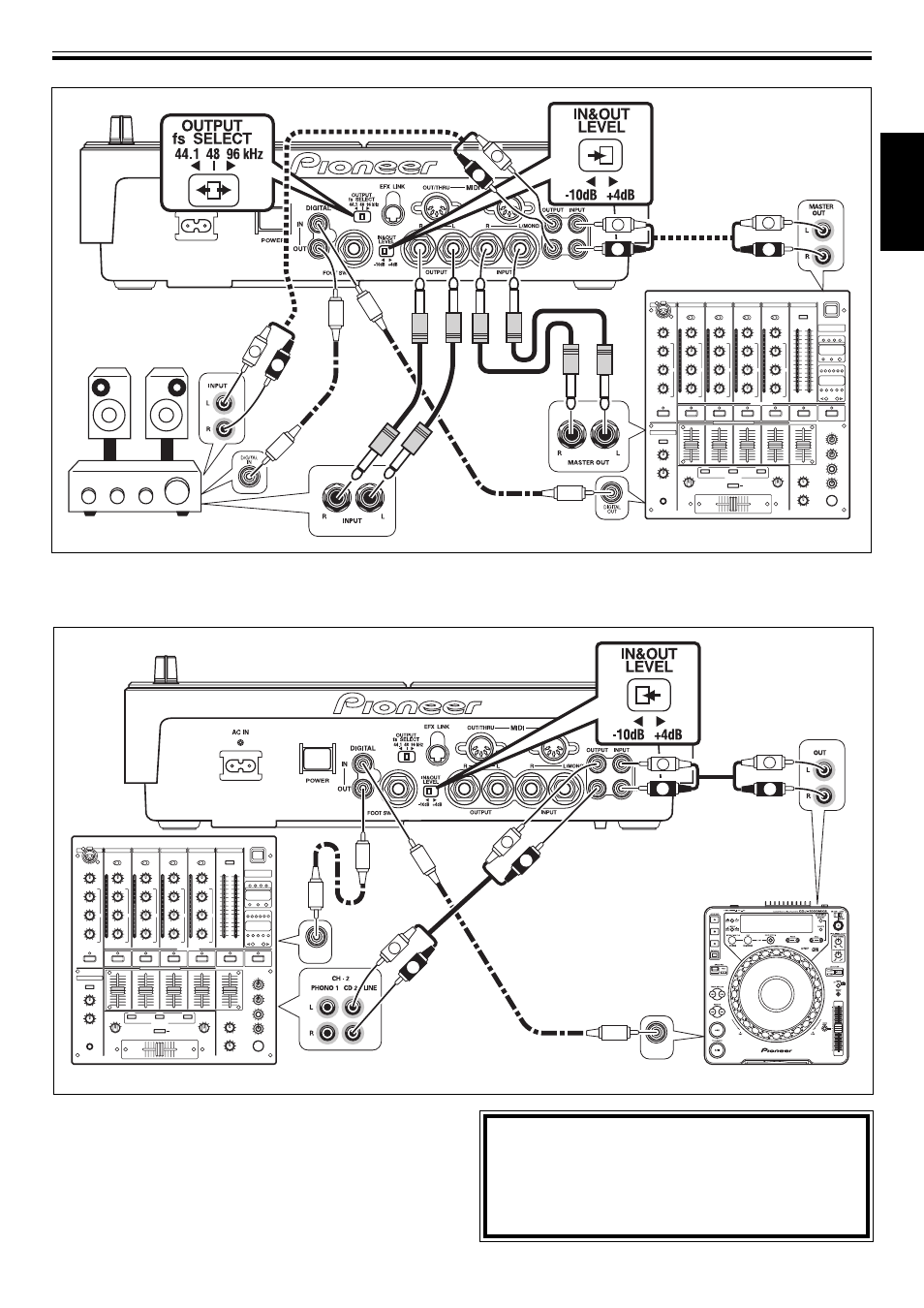

3. Connecting a DJ CD Player and a DJ Mixer (this
connection applies effects only to the sound of
the DJ CD player on channel 2)
¶ Connect the units using a cable with RCA pin plugs.
¶ For digital connections, use RCA pin-plug coaxial cables.
4. Connecting the power cord
÷ After all other connections are completed, insert the
power cord’s plug into a wall power outlet or the
auxiliary power outlet of an amplifier.
CAUTION:
Signal inputs are handled in a specific order of
priority:
EFX LINK > digital inputs > analog inputs
When EFX LINK signals are input, digital signals are
not output.
